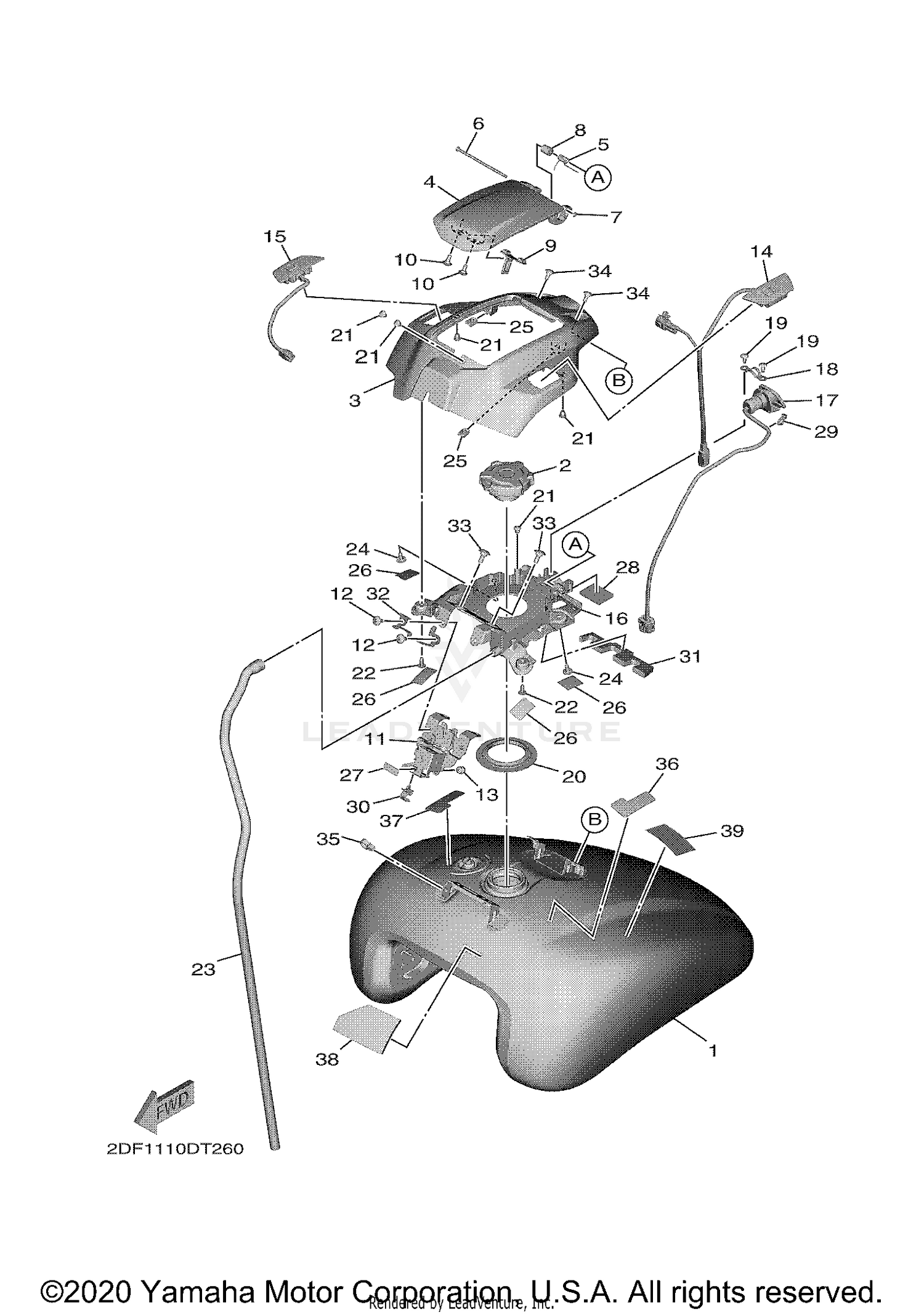

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
2DF-YK241-00-P0
|
$1,057.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FUEL TANK COMP.
2DF-YK241-00-P1
|
$682.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
2DF-24610-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, TANK
2DF-241B1-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LID, FUEL
2DF-274A8-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-15012-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
2DF-24374-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99002-03600-00
Superseded by 99080-03600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER 3
2DF-2834E-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOOK 2
2DF-2814J-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET BUTTON
90111-05054-00
Superseded by 90111-05011-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK ASSY
2DF-21780-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,HEX. SOCKET BUT
90110-05215-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER 2
5A8-21639-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH ASSY
2DF-8259E-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH ASSY
2DF-8259F-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, FILLER
2DF-2414A-00-00
Superseded by 2DF-2414A-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#17
CORD, HEAD SET 1
2DF-88196-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY
2DF-24216-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, ROUND TAPPING
90160-05018-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL
2DF-2414G-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE, OVERFLOW
2DF-24318-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Unavailable |
|||
|
#25
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER, SEAT
5GJ-24723-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER
5B6-23455-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, PLATE
90520-06008-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90464-36005-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-09129-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER
2DF-28371-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
STAY, PLATE
2DF-23486-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
90109-06253-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEX. SOCKET BUTTON
90111-05054-00
Superseded by 90111-05011-00
|
$4.95 | ||
|
Unavailable |
|||
|
#35
CLAMP
90464-13133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SEAL 3
2DF-241A3-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#37
SEAL 4
2DF-241A4-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
DAMPER, PLATE 3
2DF-2414K-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#39
LABEL, WARNING GENER
29P-2816R-00-00
Superseded by 29P-2816R-01-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
