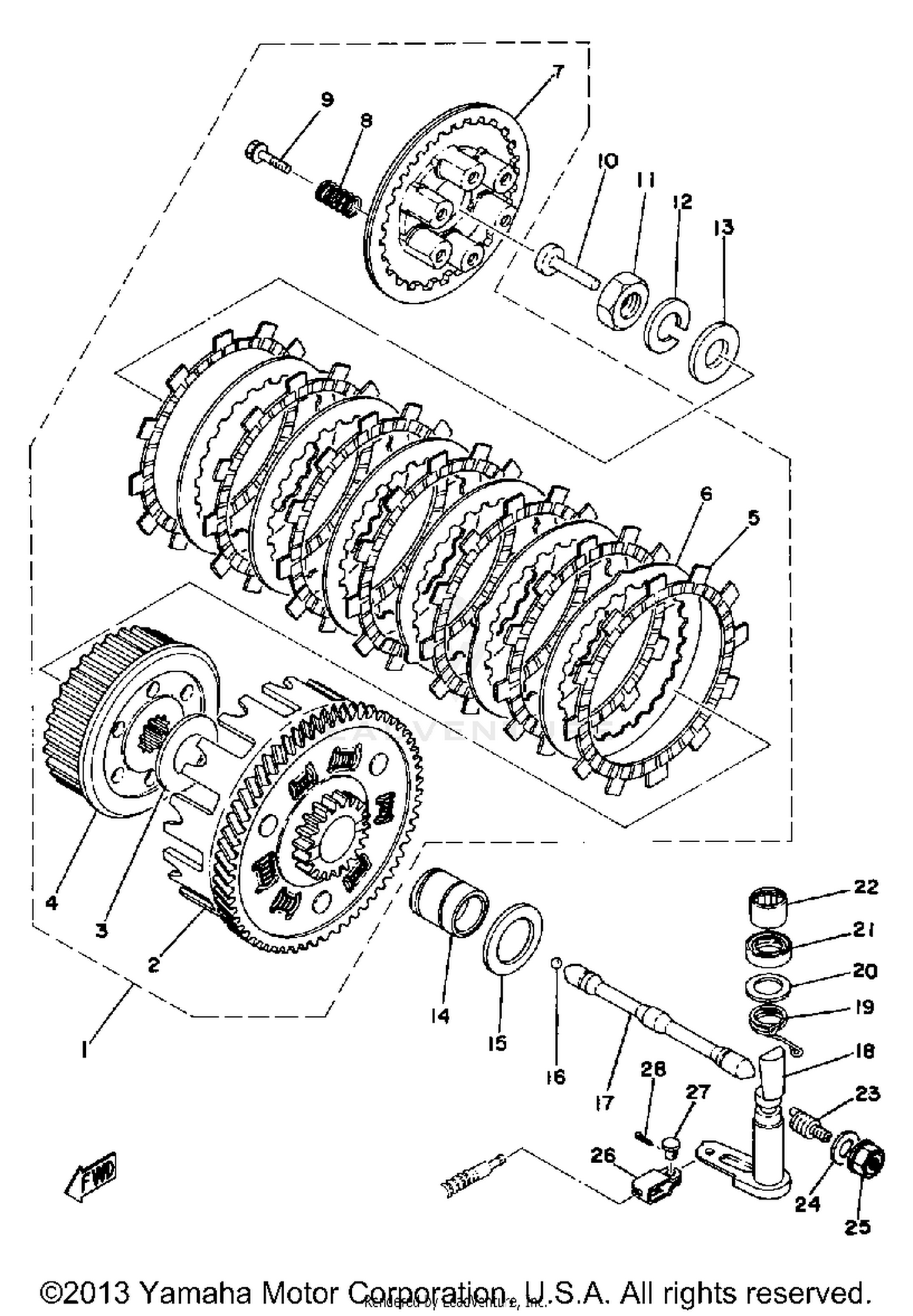

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
493-16301-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#2
PRI DRVN GEAR
493-16150-00-00
|
$142.99 | ||
|
Unavailable |
|||
|
#3
PLATE, THRUST 2
170-16164-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOSS, CLUTCH
498-16371-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#5
PLATE, FRICTION 2
360-16321-00-00
Superseded by 5Y1-16331-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH 2
498-16325-00-00
Superseded by 498-16325-10-00
|
$13.99 | ||
|
Unavailable |
|||
|
#7
PLATE, PRESSURE 1
498-16351-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-23138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, WITH WASHER
90159-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, PUSH 1
174-16356-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90170-18089-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
WASHER
92990-18200-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER 1
498-16181-00-00
|
$16.10 | ||
|
Unavailable |
|||
|
#15
PLATE, THRUST 1
360-16154-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL
93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 1
510-16356-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#18
AXLE, PUSH LEVER
434-16382-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#19
SPRING, TORSION
90508-12131-00
|
$1.65 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-17327-00
Superseded by 90201-18262-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93102-17004-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93315-11720-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, ADJUSTING
364-16343-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, ADJUSTING
583-16344-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, CLEVIS
90240-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Unavailable |
|||
