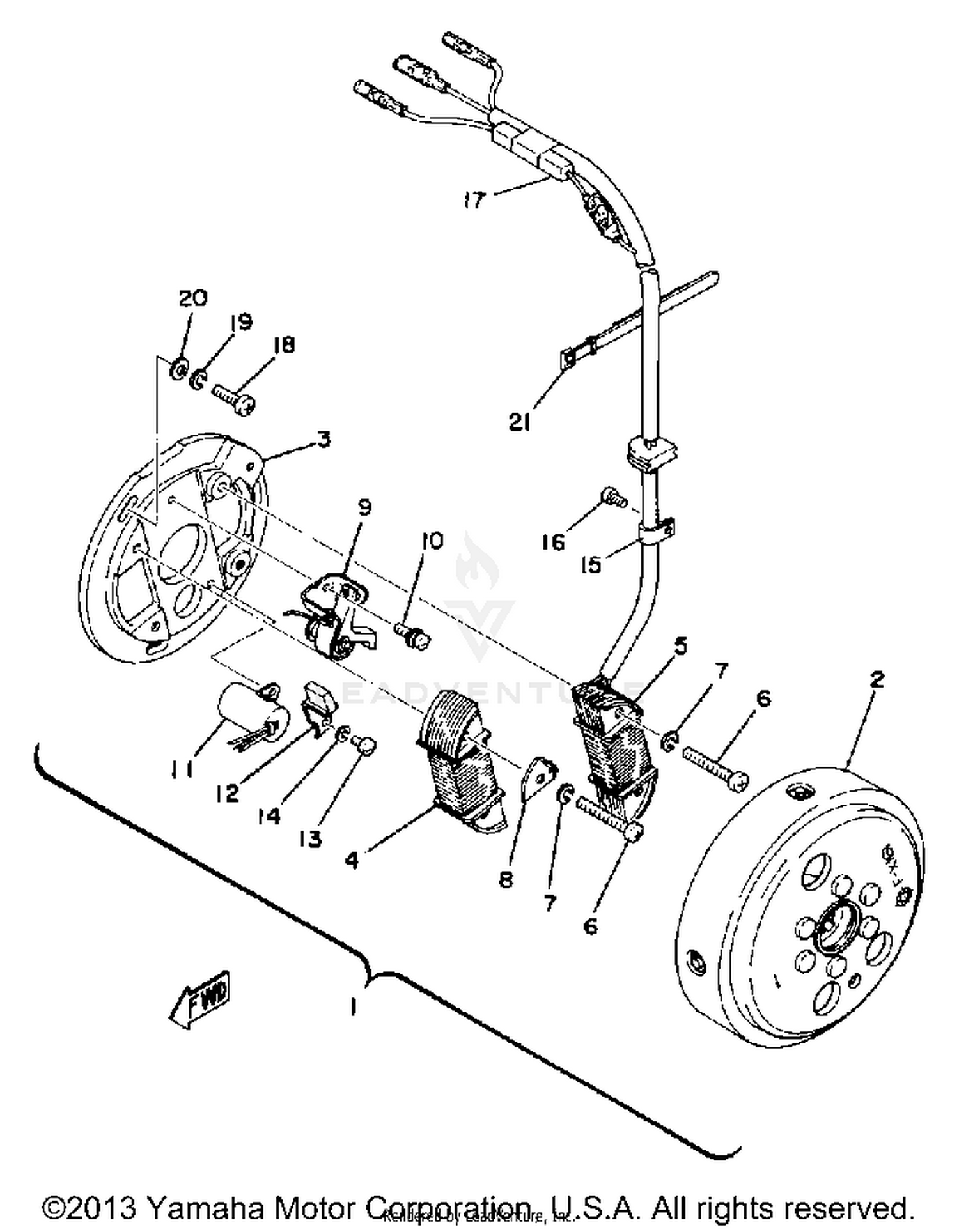

Flywheel Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWHL MAGNETO ASSEMBLY
493-81300-11-00
|
$336.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
493-81350-10-00
|
$166.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
493-81309-11-00
|
$17.04 | ||
|
Unavailable |
|||
|
#4
COIL, SOURCE
461-81312-10-00
|
$226.99 | ||
|
Unavailable |
|||
|
#5
COIL, LIGHTING 1
493-81313-10-00
|
$39.54 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, TIMING
434-81332-10-00
|
$1.38 | ||
|
Unavailable |
|||
|
#9
CONTACT BRKR ASSEMBLY
434-81321-10-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
110-81346-21-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONDENSER 2
207-81326-90-00
|
$25.99 | ||
|
Unavailable |
|||
|
#12
LUBRICATOR
207-81331-10-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, LEAD
363-85528-10-00
|
$0.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
DIODE
296-81980-09-00
|
$45.40 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
