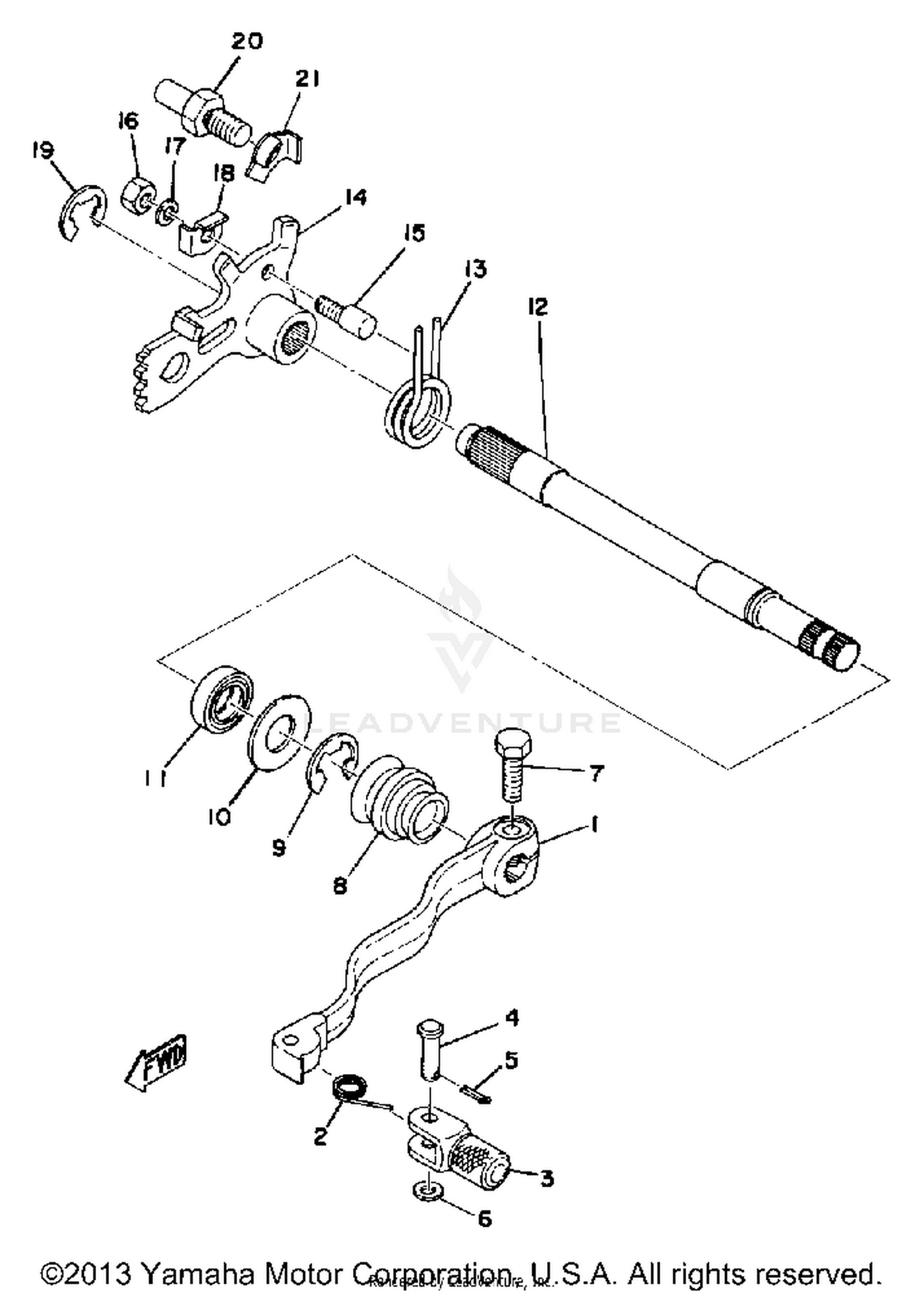

Shifter 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT PEDAL ASSEMBLY
493-18110-02-00
|
$35.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TORSION
90508-14262-00
|
$1.59 | ||
|
Unavailable |
|||
|
#3
ARM, SHIFT
493-18112-02-00
|
$16.32 | ||
|
Unavailable |
|||
|
#4
PIN, CLEVIS
90240-06043-00
|
$8.49 | ||
|
Unavailable |
|||
|
#5
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, SEALING
214-18131-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#9
CIRCLIP
99001-12600-00
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-14220-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL, SDO-TYPE
93109-14010-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, SHIFT
363-18125-00-00
|
$23.94 | ||
|
Unavailable |
|||
|
#13
SPRING, TORSION (214-18124-00)
90508-32052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, SHIFT 1
434-18121-00-00
|
$22.16 | ||
|
Unavailable |
|||
|
#15
SCREW, SPEC''L SHAPE (214-18186
90149-06017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, LOCK
90215-06016-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOPPER, SCREW
278-18127-00-00
Superseded by 278-18127-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, LOCK (214-18139-00)
90215-08015-00
|
$4.35 | ||
|
Unavailable |
|||
