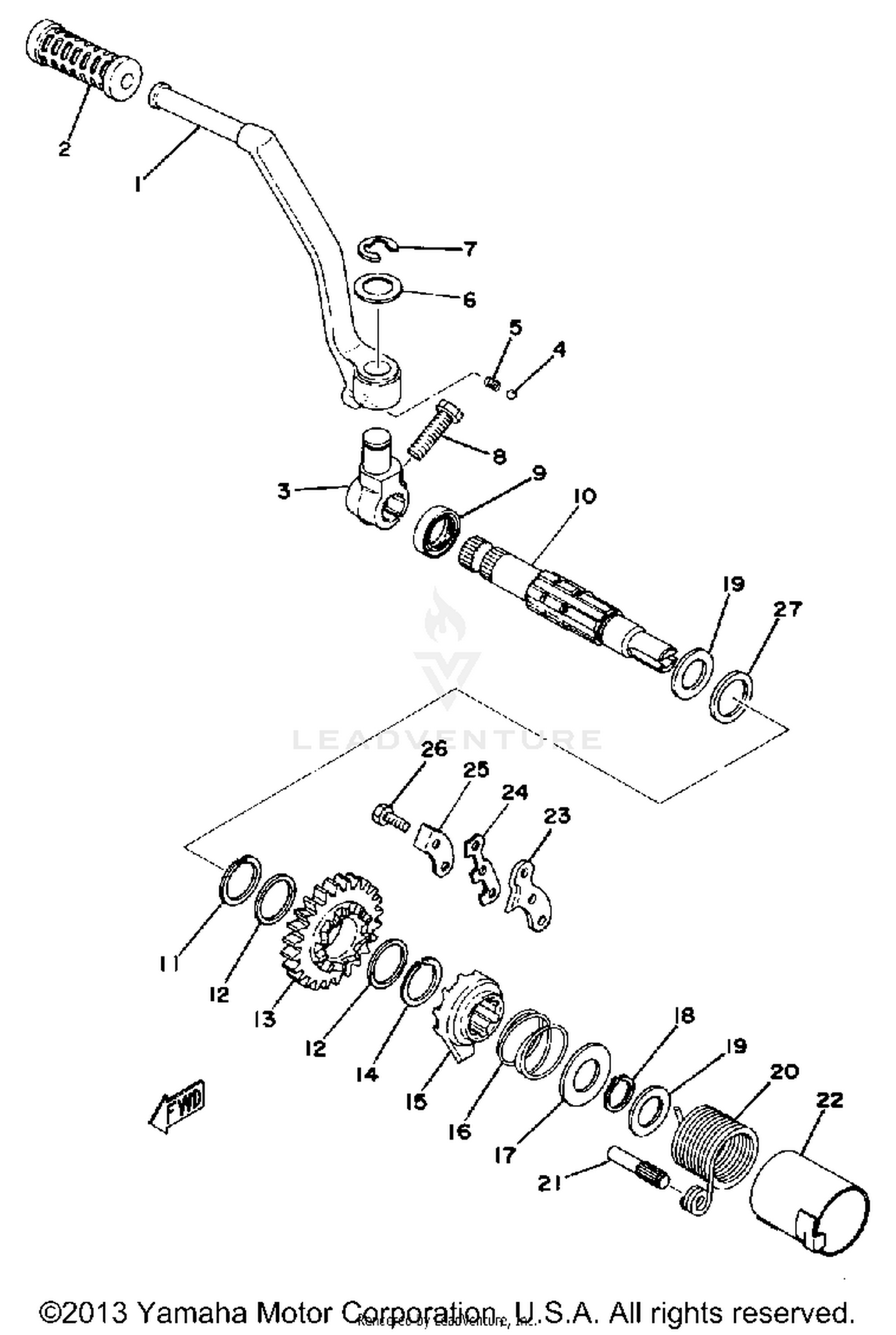

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANK, KICK
434-15620-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#2
COVER, KICK LEVER
156-15618-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK, KICK
434-15620-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#4
BALL
93507-32031-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, COMPRESSION
90501-12081-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE (1.5T)
90201-15234-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99006-10600-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93102-20309-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
AXLE, KICK
434-15661-00-00
|
$27.22 | ||
|
Unavailable |
|||
|
#11
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, KICK
434-15641-00-00
|
$19.50 | ||
|
Unavailable |
|||
|
#14
1 CIRCLIP, OUTER
93440-25027-00
|
$2.95 | ||
|
Unavailable |
|||
|
#15
WHEEL, RATCHET
363-15671-01-00
Superseded by 583-15671-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, COMPRESSION (363-15675-
90501-23143-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, SPRING
363-15676-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
99009-19400-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-20278-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, TORSION
90508-32208-00
|
$5.99 | ||
|
Unavailable |
|||
|
#21
STOPPER
364-15668-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#22
GUIDE, SPRING
434-15664-00-00
|
$11.46 | ||
|
Unavailable |
|||
|
#23
GUIDE, RATCHET WHEEL
363-15674-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#24
WASHER, LOCK
363-15686-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
STOPPER
434-15668-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHIM 1
156-17417-00-01
|
$6.49 | ||
|
Unavailable |
|||
|
#
SHIM 1 (25.1-31-0.2)
156-17417-00-02
|
$6.49 | ||
|
Unavailable |
|||
|
#
SHIM 1
156-17417-00-03
|
$6.49 | ||
|
Unavailable |
|||
