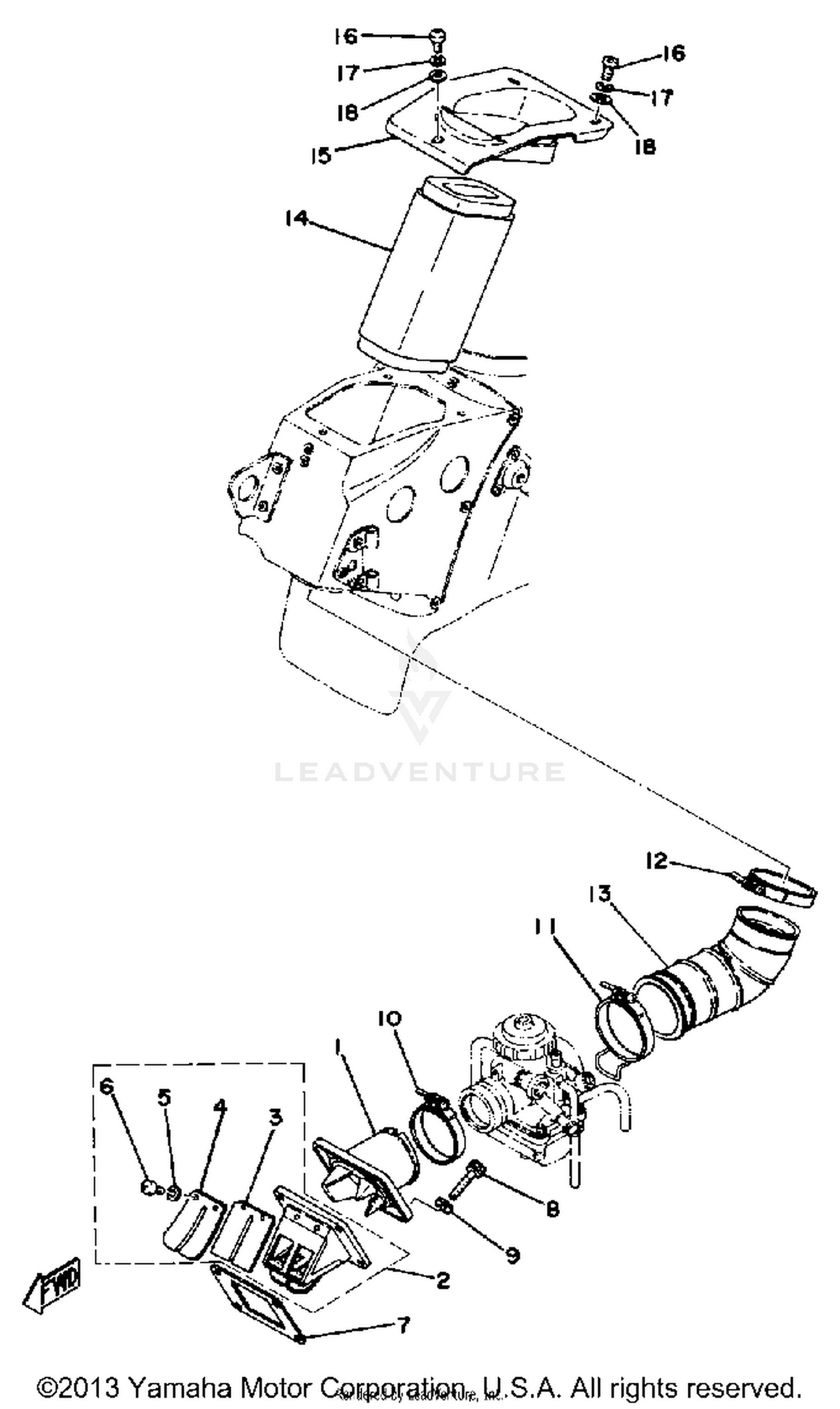

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR
434-13565-00-00
|
$32.12 | ||
|
Unavailable |
|||
|
#2
REED VALVE ASY
558-13610-00-00
Superseded by 345-13610-20-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
REED, VALVE
345-13613-70-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, REED VALVE
345-13616-70-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, VALVE SEAT
87A-13621-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, HOSE
90460-49075-00
|
$7.42 | ||
|
Unavailable |
|||
|
#12
CLAMP, HOSE
90460-49058-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT, AIR CLNR 1
493-14453-01-00
|
$10.40 | ||
|
Unavailable |
|||
|
#14
ELEMENT, AIR CLNR
434-14451-00-00
|
$38.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, CLEANER CASE 1
434-14412-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
