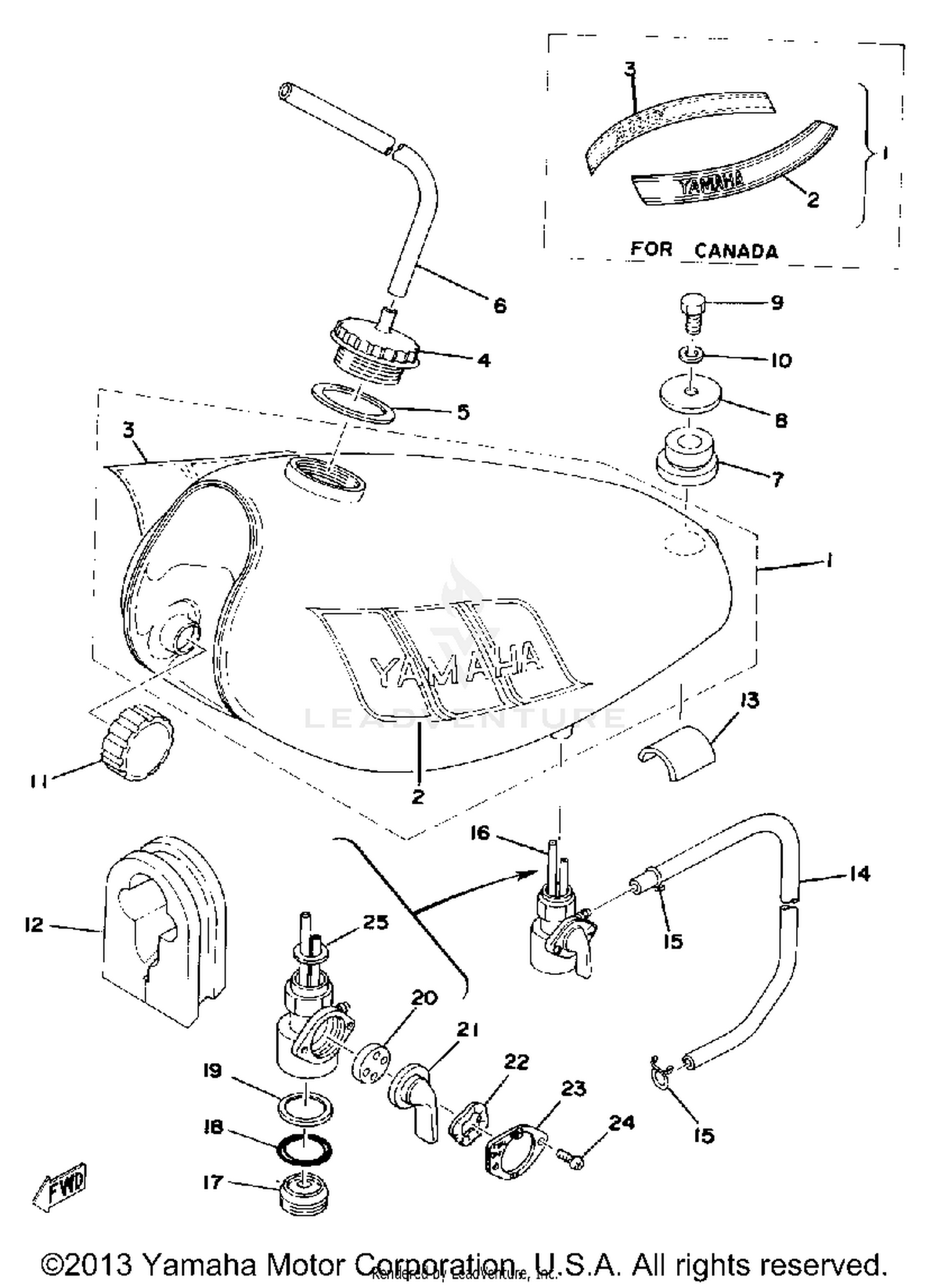

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
493-24110-00-06
|
$299.99 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
493-24110-00-04
|
|||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
493-24244-20-00
|
$5.64 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
508-24244-00-00
|
|||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 2
493-24245-20-00
|
$4.35 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
408-24245-00-00
|
|||
|
Unavailable |
|||
|
#4
BODY, CAP
322-24611-02-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-35122-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE (L540)
90445-09238-00
Superseded by 90445-09361-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-22054-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 3
434-24183-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#13
DAMPER, LOCATING 4
493-24184-00-00
|
$0.80 | ||
|
Unavailable |
|||
|
#14
PIPE 5
90445-09085-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-09005-00
Superseded by 90467-08017-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUEL COCK ASSEMBLY 1
434-24500-03-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUP, FILTER
434-24521-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#18
GASKET
132-24522-00-00
Superseded by 498-24522-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
434-24576-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
GASKET
137-24523-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
LEVER, COCK
447-24524-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#22
WASHER, WAVE
132-24518-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, LEVER FITTING
447-24525-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
434-24532-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
