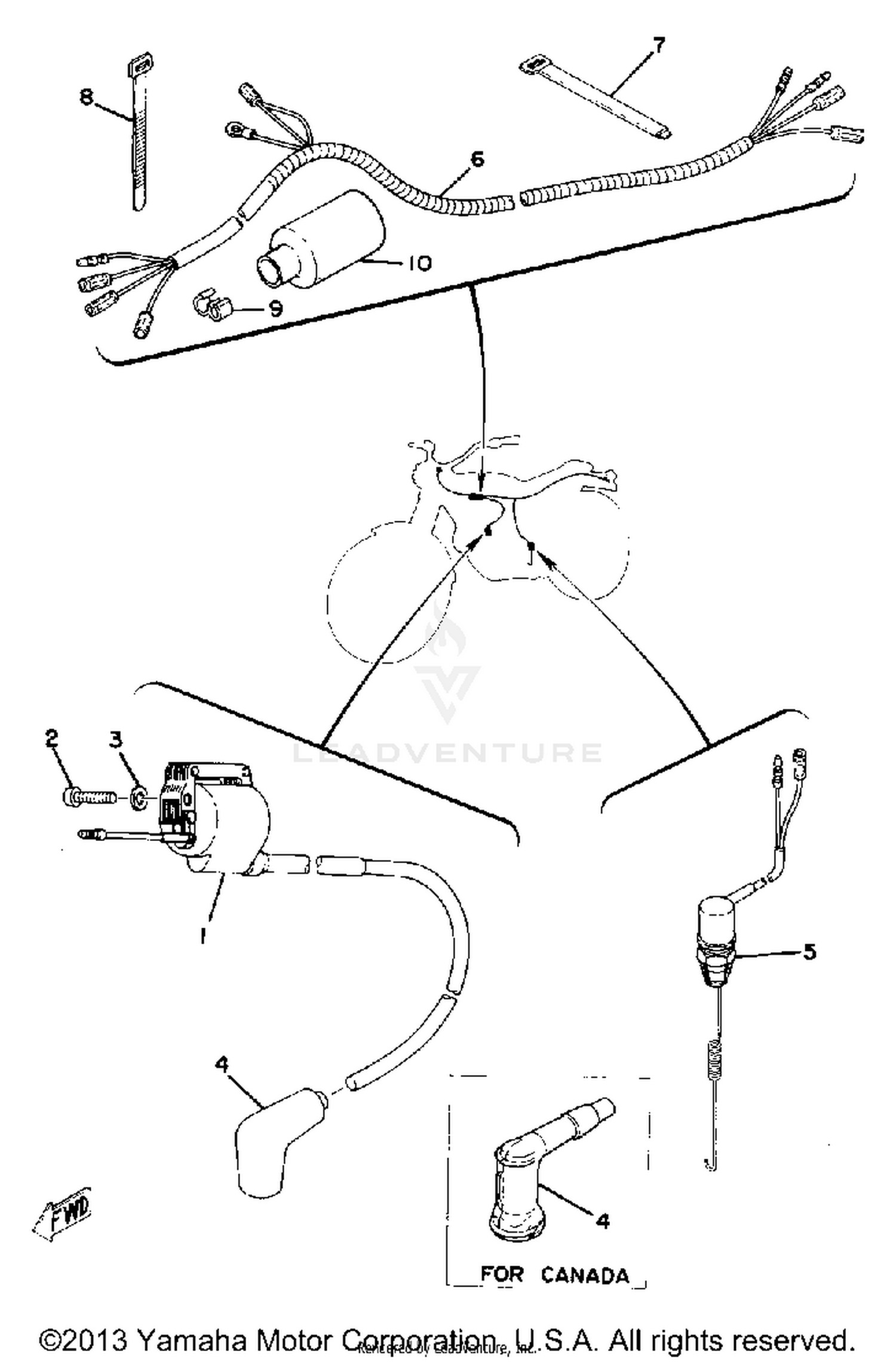

| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSEMBLY
367-82310-30-00
Superseded by 355-82310-40-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#
IGNITION COIL ASS''Y
304-82310-30-00
|
$83.12 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG CAP ASSEMBLY
808-82370-10-00
|
$35.99 | ||
|
Unavailable |
|||
|
#
PLUG CAP ASSEMBLY
294-82370-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#5
STOP SWITCH ASSEMBLY
434-82530-00-00
|
$14.20 | ||
|
Unavailable |
|||
|
#6
WIRE HARNESS ASSEMBLY
434-82590-22-00
|
$17.60 | ||
|
Unavailable |
|||
|
#7
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
90468-15020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, CONNECTER
306-82599-00-00
|
$3.16 | ||
|
Unavailable |
|||
