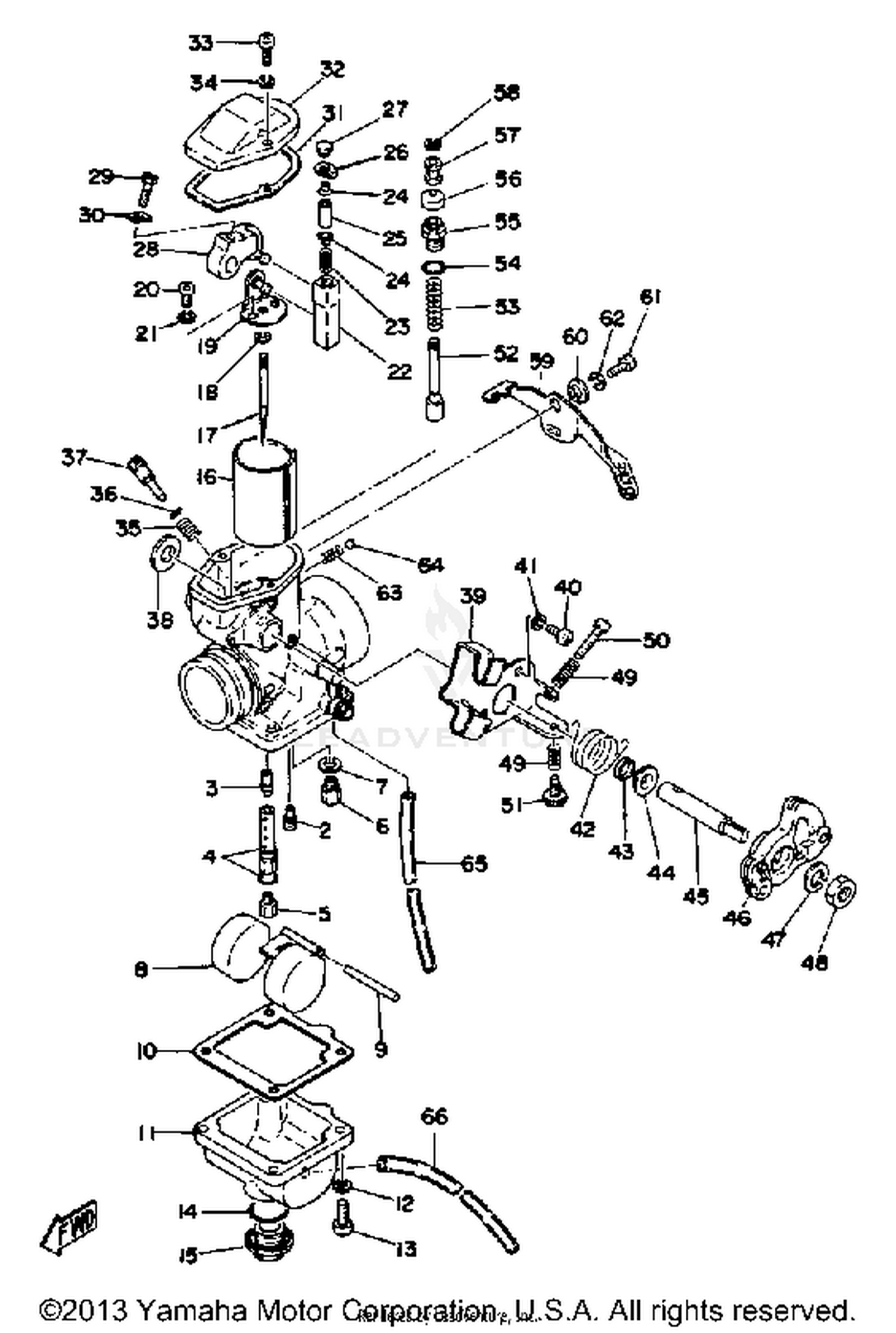

1976 Yamaha XT500 CARBURETOR OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
O-RING
583-14561-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY 1
1E6-14101-60-00
|
$205.99 | ||
|
Unavailable |
|||
|
#2
JET, PILOT 35
193-14142-35-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NOZZLE, MAIN (Q-2)
583-14141-52-00
|
$19.99 | ||
|
Unavailable |
|||
|
#4
PIPE
583-14148-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#200)
137-14143-40-A1
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #210 (210)
137-14143-42-A1
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN 220 (220)
137-14143-44-A1
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEEDLE VALVE SET
23L-14107-25-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, NEEDLE VALVE
214-14195-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLOAT
583-14185-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#9
PIN, FLOAT
127-14186-00-00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, FLOAT CHMBR
583-14184-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BODY, FLOAT CHMBR 1
1E6-14181-12-00
|
$40.99 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
558-14147-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, SCREW
500-14115-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, THROTTLE 1
583-14112-45-00
|
$61.52 | ||
|
Unavailable |
|||
|
#17
NEEDLE (5J10-3)
316-14116-10-00
|
$13.49 | ||
|
Unavailable |
|||
|
#18
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET 1
583-14291-00-00
|
$3.90 | ||
|
Unavailable |
|||
|
#20
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
CONNECTOR
583-14274-00-00
|
$4.09 | ||
|
Unavailable |
|||
|
#23
SPRING, DIAPHRAGM
583-14933-00-00
|
$0.47 | ||
|
Unavailable |
|||
|
#24
WASHER
583-14558-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#25
PIN, FLOAT
583-14386-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#26
WASHER
583-14951-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#27
SCREW
583-14216-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#28
LEVER, THROTTL.VALV
583-14292-00-00
|
$10.40 | ||
|
Unavailable |
|||
|
#29
SCREW
583-14592-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
WASHER
583-14597-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#31
GASKET
583-14536-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
TOP, MIXING CHAMBER
583-14158-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#33
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#35
SPRING, AIR ADJUSTING
127-14134-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING
354-14147-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
AIR SCREW SET
10W-14104-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPACER
583-14264-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#39
BRACKET, THROTTLE
583-14571-00-00
|
$12.52 | ||
|
Unavailable |
|||
|
#40
SCREW, PAN HEAD
98580-05012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPRING, THRTL VALVE
583-14131-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#43
SEAL
583-14239-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#44
COLLAR
583-14265-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#45
SHAFT, THRTL LEVER
583-14215-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#46
LEVER
583-14573-00-00
|
$10.61 | ||
|
Unavailable |
|||
|
#47
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT
812-14594-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
SPRING, THRTL STOP
583-14133-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#50
SCREW, GUIDE
583-14245-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#51
SCREW, THRTL STOP
583-14121-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#52
PLUNGER, STARTER
583-14171-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#53
SPRING, PLUNGER
500-14135-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#54
O-RING
583-14562-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#55
CAP, PLUNGER
583-14174-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#56
COVER, PLUNGER CAP
802-14173-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#57
RING
583-14918-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#58
CLIP
737-14137-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
LEVER, STARTER 1
583-14175-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#60
NUT
583-14594-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#61
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#62
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#63
SPRING
583-14589-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
BALL
93501-08001-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
HOSE
90445-081F2-00
Superseded by 90445-08684-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
PIPE (43214-19700-00)
510-14197-00-00
|
$7.99 | ||
|
Unavailable |
|||
