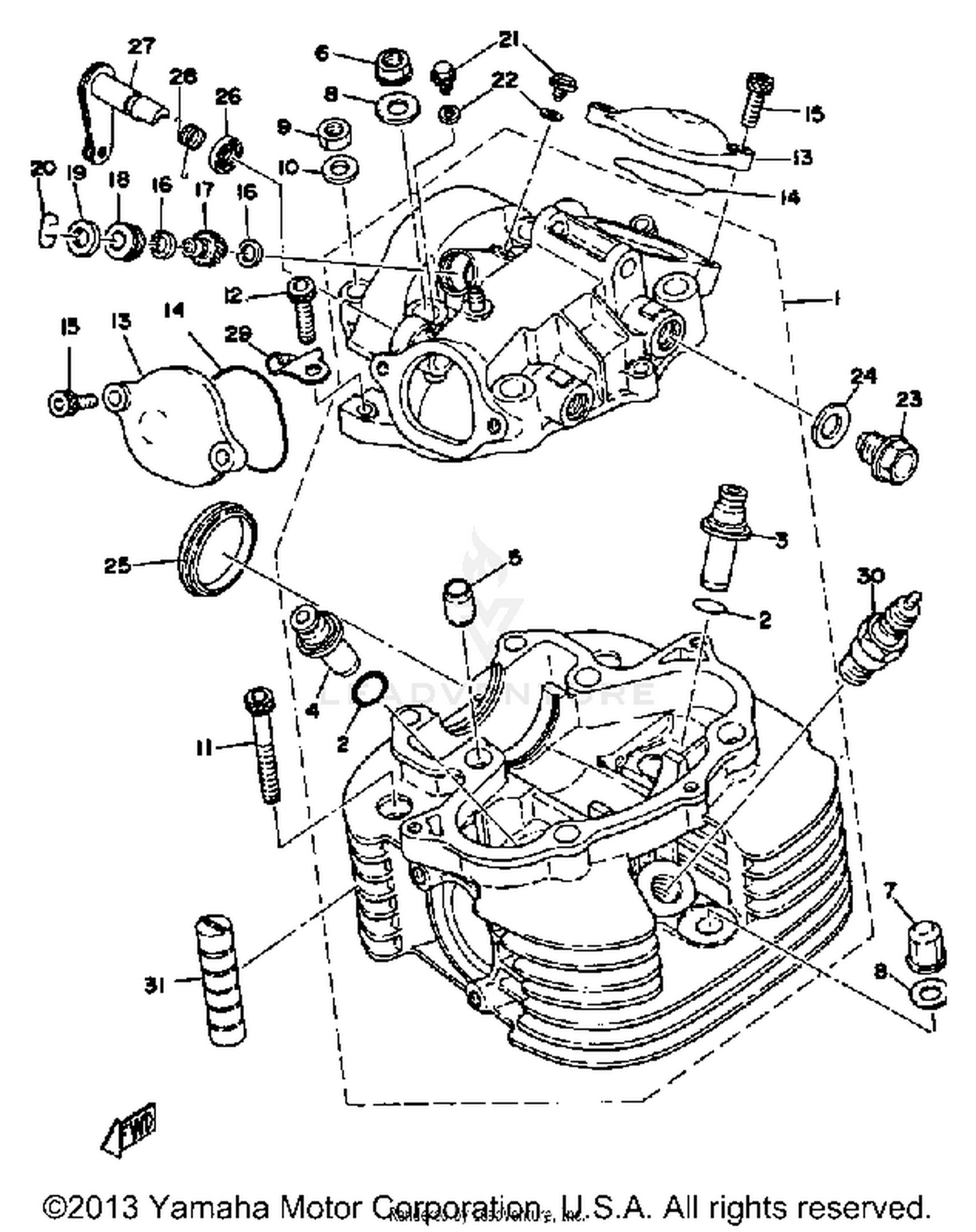

1976 Yamaha XT500 CYLINDER HEAD - CYLINDER HEAD COVER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, DELIVERY 1
583-13161-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#
CYLINDER HEAD ASSEMBLY
99999-00953-00
|
$562.99 | ||
|
Unavailable |
|||
|
#
CYLINDER HEAD ASSEMBLY
2H0-11110-00-R4
|
$543.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-14299-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
GDE, INTK VLV 1 O/S
583-11133-11-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GDE, EXST VLV 1 O/S (1ST O.S.
583-11134-11-00
|
$71.99 | ||
|
Unavailable |
|||
|
#5
PIN, DOWEL
99530-14016-00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CROWN
90176-10049-00
Superseded by 90176-10075-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, CROWN
90176-10049-00
Superseded by 90176-10075-00
|
$6.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-10124-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
95333-08600-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-06055-00
Superseded by 91317-06055-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CYLINDER. HEAD 2
583-11186-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#14
O-RING
93210-49296-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91316-06018-00
Superseded by 91317-06018-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-084L7-00
Superseded by 90201-08085-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, DRIVEN
1E6-17841-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSH, DRVN GR OUTER
1E6-17843-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93101-08132-00
Superseded by 93102-08307-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, STOP
102-25137-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-06418-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
90430-06016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG, STRAIGHT SCRW
90340-14038-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
90430-14043-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG, SPEC''L SHAPE
90338-47065-00
|
$5.63 | ||
|
Unavailable |
|||
|
#26
OIL SEAL, SO-TYPE
93104-12054-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAM, DECOMPRESSION
583-12288-00-00
Superseded by 583-12288-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING, TORSION
90508-16303-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET, DCOMP
583-12283-00-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BPR7ES NGK - 4/PACK
NGK-BP7ES-00-00
Superseded by BPR-7ES00-40-00
|
$2.95 | ||
|
Unavailable |
|||
|
#31
ABSORBER 3
583-11127-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
