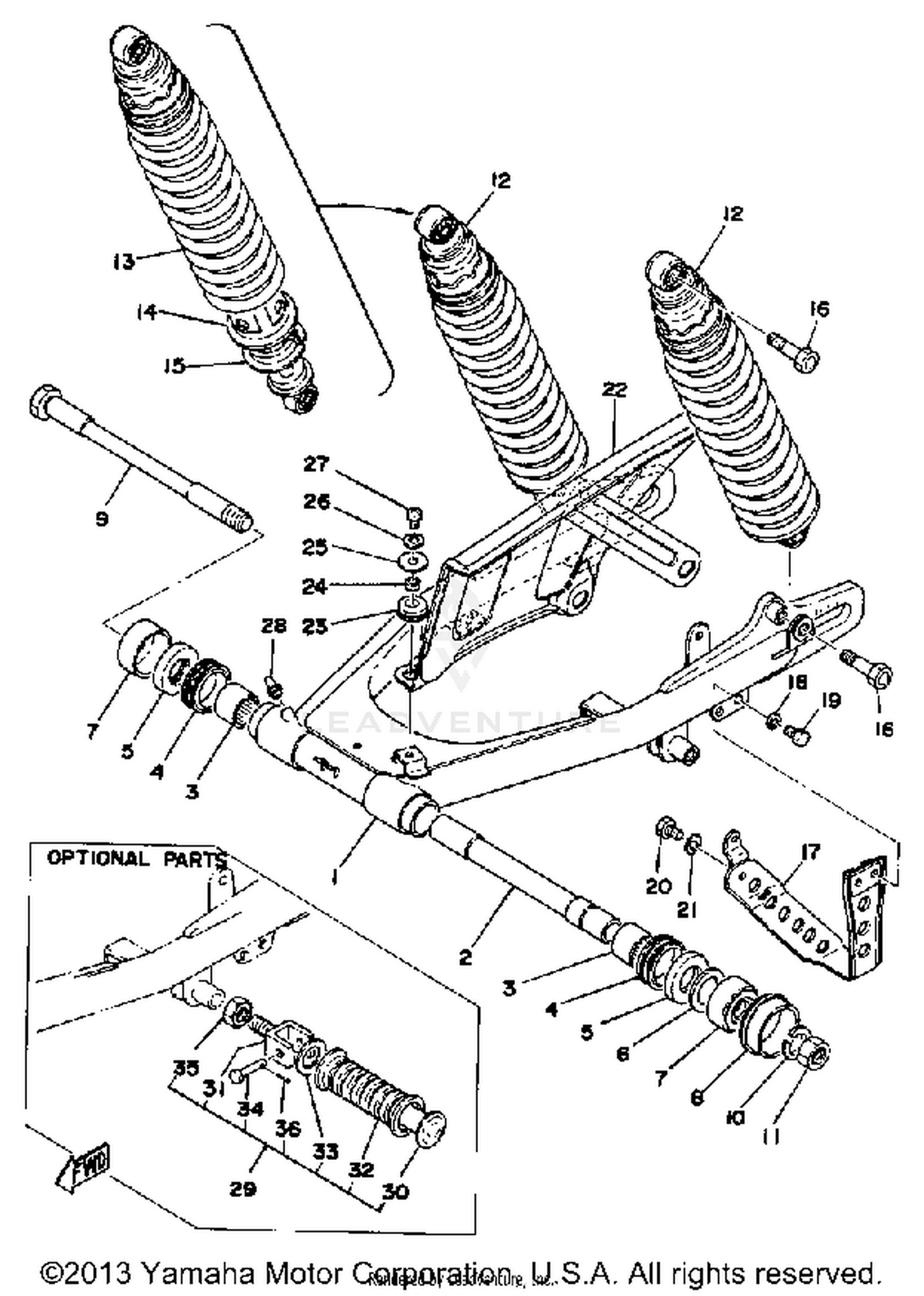

1976 Yamaha XT500 REAR ARM - REAR CUSHION - CHAIN CASE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1E6-22110-00-33
|
$105.99 | ||
|
Unavailable |
|||
|
#2
BUSH 2
483-22124-00-00
|
$97.99 | ||
|
Unavailable |
|||
|
#3
BEARING, CYLINDER.#17
93317-22208-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (35-41-8)
93108-35004-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, FLAT #42
93342-22205-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM (90201-22284)
648-45533-00-02
|
$3.35 | ||
|
Unavailable |
|||
|
#7
COVER, THRUST 2
2K8-22129-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SEAL, GUARD
431-22151-03-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#
THRUST COVER (483-22129-00)
99999-00938-00
|
$51.99 | ||
|
Unavailable |
|||
|
#8
SEAL, GUARD
431-22151-03-00
|
$23.99 | ||
|
Unavailable |
|||
|
#9
SHAFT, PIVOT
583-22141-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#10
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
SHK/ABS ASSEMBLY, REAR
1E6-22210-00-00
|
$130.99 | ||
|
Unavailable |
|||
|
#13
SPRING
583-22212-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#14
COVER
583-22211-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#15
GUIDE, SPRING 1
583-22214-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#16
BOLT
90109-10420-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUARD, CHAIN
438-22318-00-33
|
$14.42 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97001-06018-00
Superseded by 97017-06020-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#22
CASE, CHAIN
1E6-22311-00-33
|
$25.04 | ||
|
Unavailable |
|||
|
#23
GROMMET
90480-12529-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER
90560-05001-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
NIPPLE, GREASE
93700-06M03-00
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#29
RR FOOTREST ASSEMBLY 1
120-27430-02-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
FOOTREST, REAR 1
120-27431-00-00
Superseded by 2GV-27431-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET 1
120-27432-02-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
COVER, REAR FOOTREST
120-27433-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-20279-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, CLEVIS
90240-06052-00
|
$1.09 | ||
|
Unavailable |
|||
|
#35
NUT
95301-12700-00
Superseded by 95317-12700-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, COTTER
91490-16020-00
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
