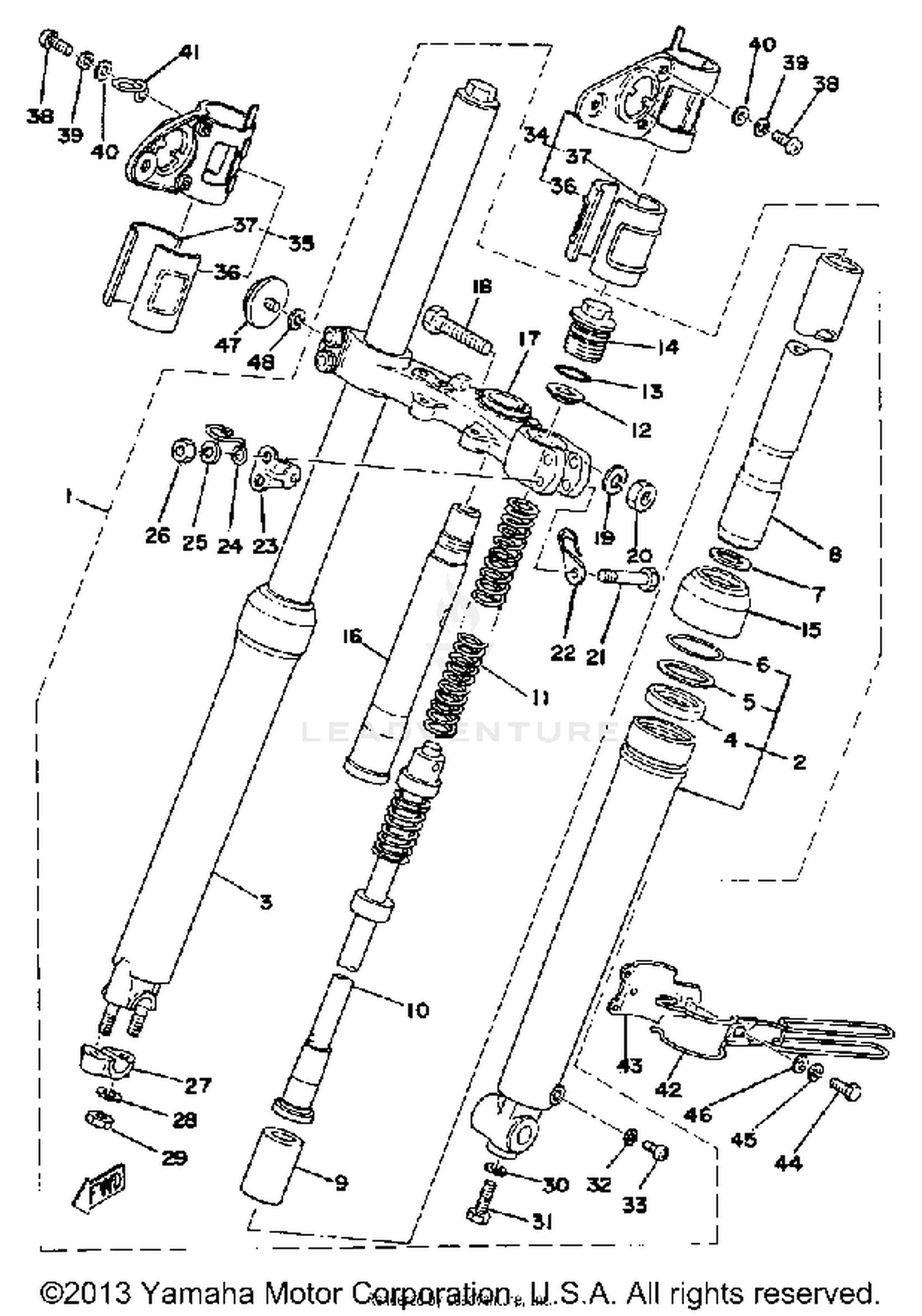

1976 Yamaha XT500 FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
1E6-23101-00-00
|
$166.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
583-23126-01-00
|
$108.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
583-23136-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
48Y-23145-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
341-23146-50-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, OIL SEAL
341-23156-50-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP, INNER
93450-30039-00
|
$2.39 | ||
|
Unavailable |
|||
|
#8
TUBE, INNER 1
583-23124-00-00
|
$71.59 | ||
|
Unavailable |
|||
|
#9
PISTON, FRONT FORK
583-23171-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#10
CYLINDER, FRTFRK
583-23170-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#11
SPRING, FRONT FORK
583-23141-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#12
SEAT, SPRING UPPER
583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#13
GASKET
240-23114-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CAP (583-23111-00)
2W6-23111-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#15
SEAL, DUST
583-23144-00-00
|
$11.84 | ||
|
Unavailable |
|||
|
#16
SHAFT, STEERING
1E6-23341-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#17
UNDER BRACKET
2H1-23340-00-33
|
$177.99 | ||
|
Unavailable |
|||
|
#18
BOLT 2
322-23356-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING
92990-10100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
322-23357-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#21
BOLT
90101-08340-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90462-08024-00
|
$2.37 | ||
|
Unavailable |
|||
|
#23
COVER, OUTER 1
1E6-23122-00-33
|
$2.17 | ||
|
Unavailable |
|||
|
#24
HOLDER, CABLE
4H7-23317-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, HEXAGON
90170-08180-00
|
$1.74 | ||
|
Unavailable |
|||
|
#27
HOLDER, AXLE (291-23167-60)
291-23167-61-00
|
$44.99 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, SELF-LOCKING
90185-08089-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET
509-23158-L0-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, UPPER 1
1N5-23121-00-33
|
$20.99 | ||
|
Unavailable |
|||
|
#35
COVER, UPPER 2
1N5-23131-00-33
|
$20.99 | ||
|
Unavailable |
|||
|
#36
GASKET, UPPER CVR 1
1N5-23137-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#37
GASKET, UPPER CVR 2
1E6-23138-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#38
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#41
GUIDE, CABLE
1E6-23389-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#42
HOLDER, CABLE 1
1E6-23318-00-00
|
$10.80 | ||
|
Unavailable |
|||
|
#43
HOLDER, CABLE 2
1E6-23319-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#44
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#46
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#47
REFLECTOR, FRONT 1
355-85111-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
