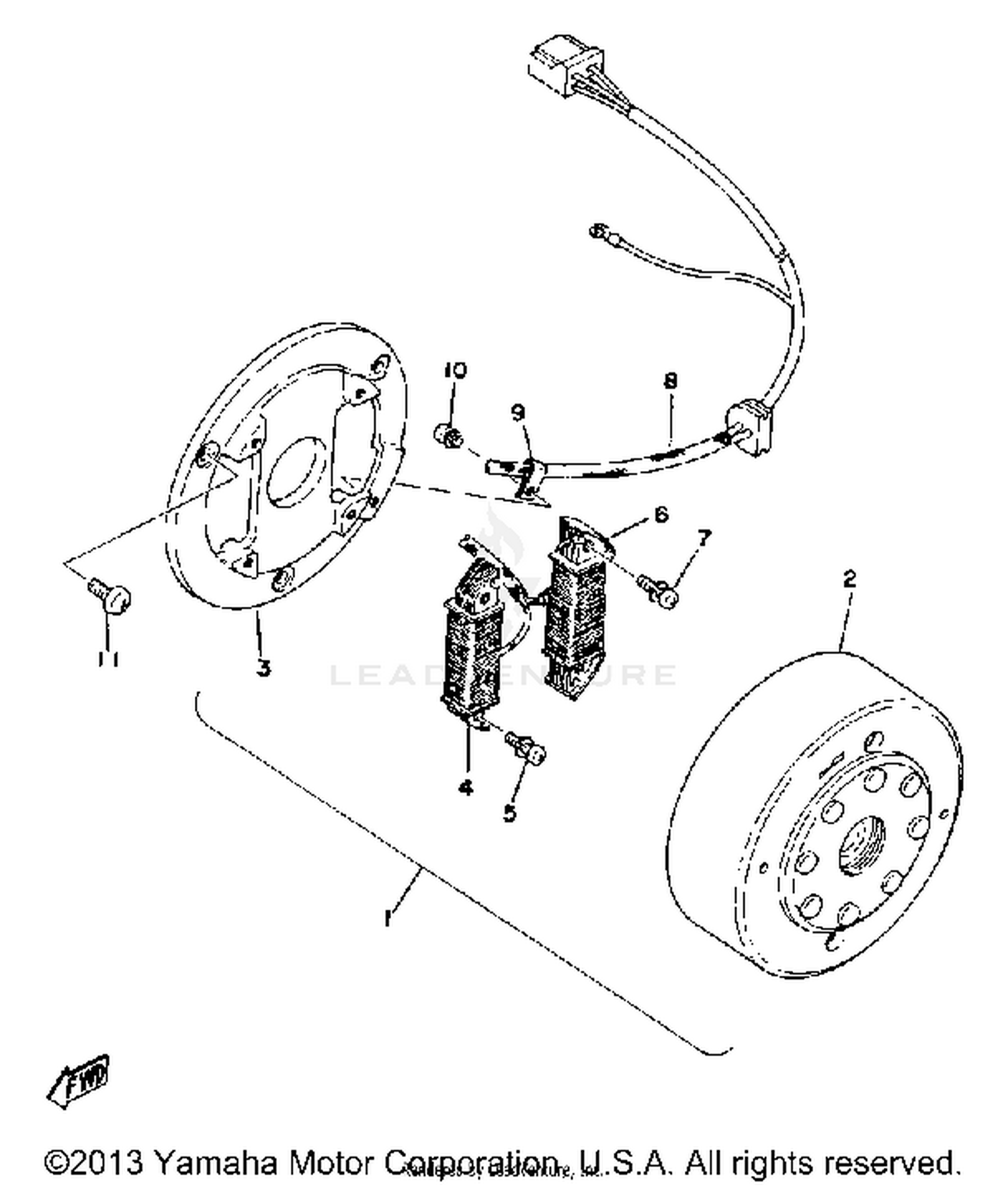

1976 Yamaha XT500 FLYWHEEL MAGNETO OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWHL MAGNETO ASSEMBLY
2H0-81300-50-00
|
$292.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
583-81350-50-00
|
$217.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
583-81309-50-00
|
$28.86 | ||
|
Unavailable |
|||
|
#4
COIL, IGNITION 1
583-81311-50-00
|
$139.99 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD (5.22)
583-81345-50-00
|
$5.00 | ||
|
Unavailable |
|||
|
#6
COIL, LIGHTING 1
1E6-81313-51-00
|
$87.99 | ||
|
Unavailable |
|||
|
#7
SCREW, PAN HEAD (5.22)
583-81345-50-00
|
$5.00 | ||
|
Unavailable |
|||
|
#8
LEAD WIRE ASSEMBLY
1E6-81315-50-00
|
$19.50 | ||
|
Unavailable |
|||
|
#9
CLAMP
1E6-81328-50-00
|
$0.62 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
583-81346-50-00
|
$1.98 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
