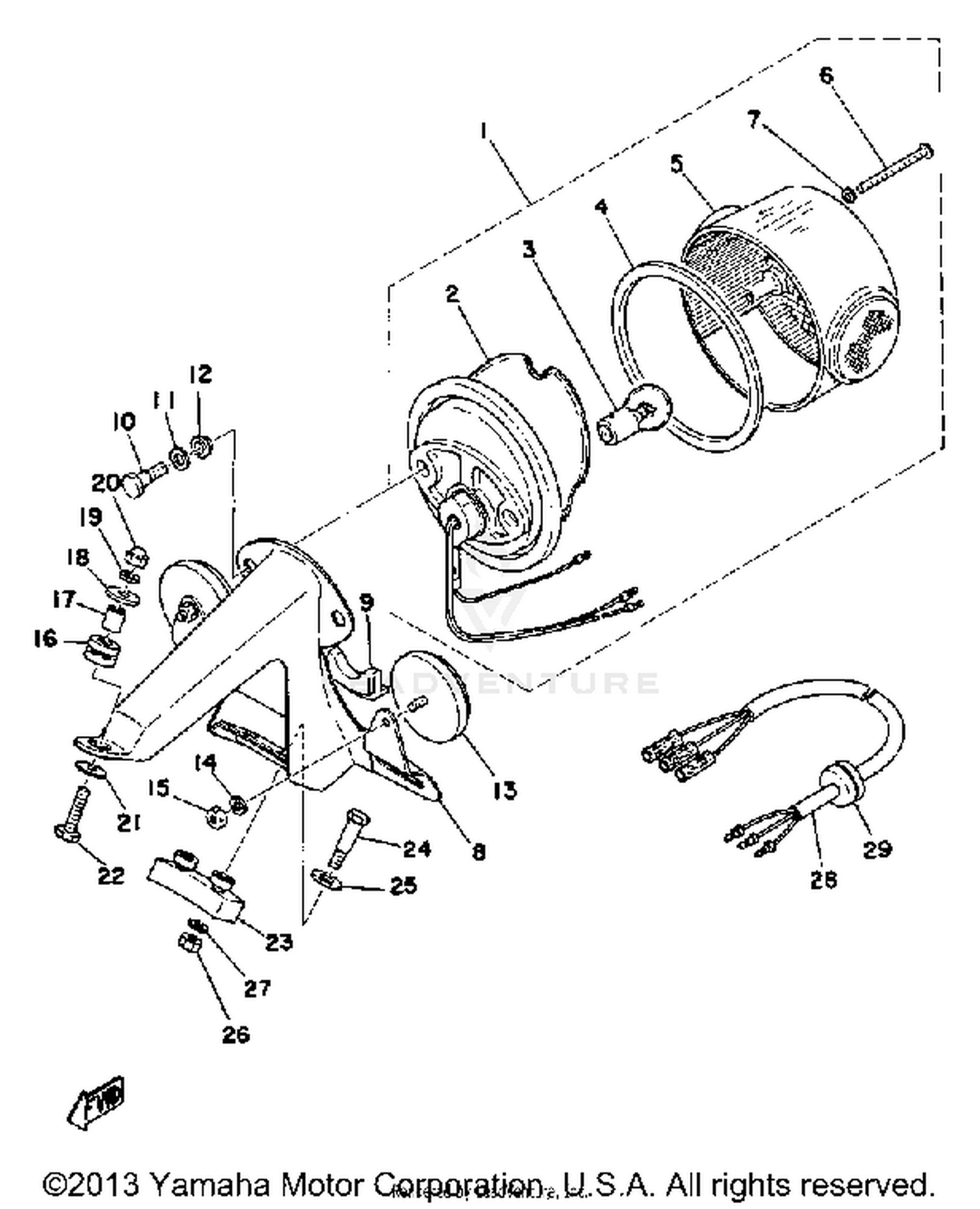

1976 Yamaha XT500 TAILLIGHT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
437-84510-62-00
|
$78.99 | ||
|
Unavailable |
|||
|
#2
BASE, TAILLIGHT
444-84711-61-00
|
$35.99 | ||
|
Unavailable |
|||
|
#3
BULB 6VP21/5W(17904)
1M1-84514-60-00
Superseded by 1M1-84514-60-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, LENS
275-84523-60-00
|
$9.20 | ||
|
Unavailable |
|||
|
#5
LENS, TAILLIGHT
341-84721-60-00
|
$21.16 | ||
|
Unavailable |
|||
|
#6
SCREW, LENS FITTING
98580-04055-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
341-84722-60-00
|
$3.96 | ||
|
Unavailable |
|||
|
#8
BRACKET, LICENCE
1E6-84551-61-35
|
$41.08 | ||
|
Unavailable |
|||
|
#9
DAMPER
437-84527-60-00
|
$5.04 | ||
|
Unavailable |
|||
|
#10
SCREW
479-84526-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#11
WASHER, SPECIAL
2H7-84754-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER
275-84527-60-00
|
$6.68 | ||
|
Unavailable |
|||
|
#13
REFLECTOR, REAR 1
449-85131-02-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95380-05600-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-14023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
90209-06095-00
Superseded by 90209-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER
308-84553-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
BOLT (338-84552-00)
90109-06022-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
90209-08125-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, HEXAGON
95380-06600-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#28
CORD, TAILLIGHT
1E6-84517-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#29
GROMMET
90480-15061-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
