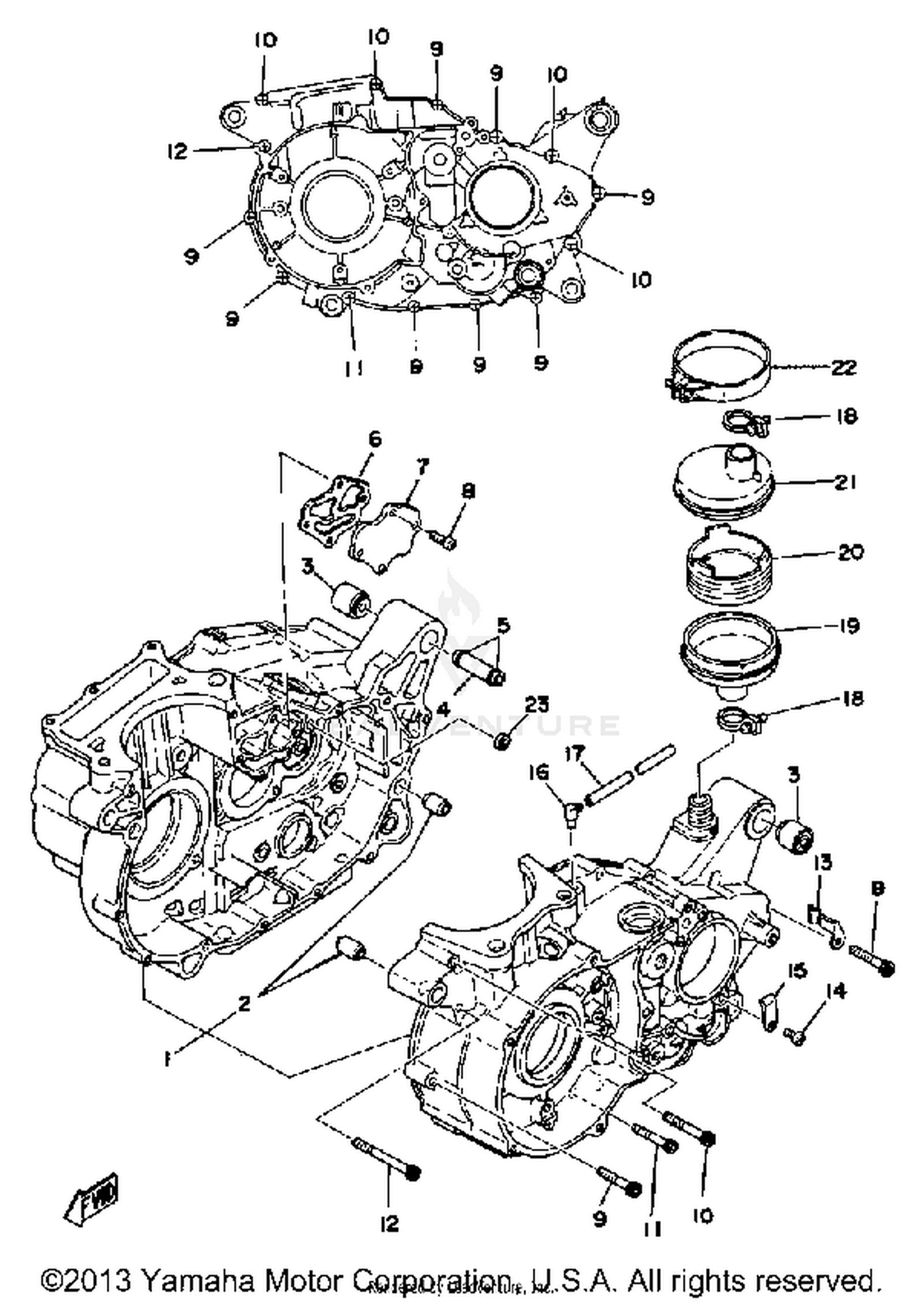

1976 Yamaha XT500 CRANKCASE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY (583-15100-0
583-15100-03-00
|
$718.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, ENG MOUNT 1
583-15316-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#4
SPACER, ENG MOUNT
583-15317-01-00
|
$6.04 | ||
|
Unavailable |
|||
|
#5
O-RING
93210-11313-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET 2
583-15466-00-00
Superseded by 3HT-15466-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, OIL PUMP 2
583-15426-00-00
Superseded by 583-15426-10-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91316-06045-00
Superseded by 91317-06045-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-06055-00
Superseded by 91317-06055-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06065-00
Superseded by 91317-06065-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-08277-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90465-05075-00
|
$1.98 | ||
|
Unavailable |
|||
|
#16
BREATHER
583-15371-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE (L310)
90445-07039-00
Superseded by 90445-072G8-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, HOSE
90460-22083-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BREATHER 2
583-15347-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEPARATOR,OIL
583-15358-00-00
Superseded by 3HT-15358-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BREATHER 1
583-15346-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP, HOSE (90460-71017)
90460-71129-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
GASKET
90430-09121-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
