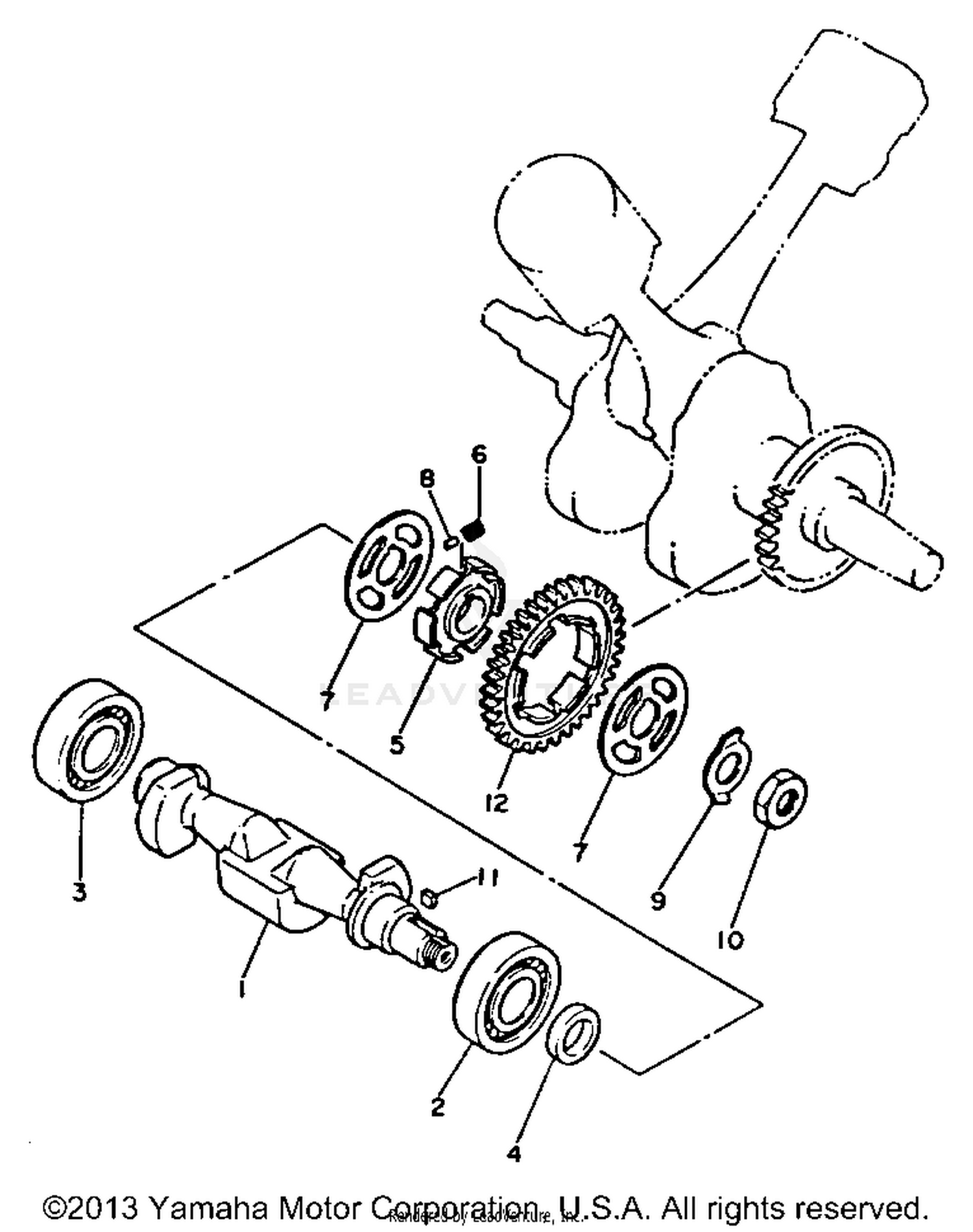

Balancer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WEIGHT 1
28-V1145-40-00
|
|||
|
Unavailable |
|||
|
#2
BEARING
93306-30534-00
Superseded by 93306-30560-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-30560-00
|
$73.99 | ||
|
Unavailable |
|||
|
#4
WASHER, plate
90201-200F1-00
|
$4.75 | ||
|
Unavailable |
|||
|
#5
BOSS, BUFFER
3Y1-11496-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, COMPRESSION
90501-21133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNAVAILABLE IN PRICE BOOK
3Y-11156-50-00
|
|||
|
Unavailable |
|||
|
#8
PIN, DOWEL
93605-10090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, LOCK
90215-20158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SPECIALL SHAPE
90179-16018-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY, STRAIGHT
90282-05013-00
Superseded by 90282-05065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, balance wt (45T)
11-H1153-10-00
|
|||
|
Unavailable |
|||
