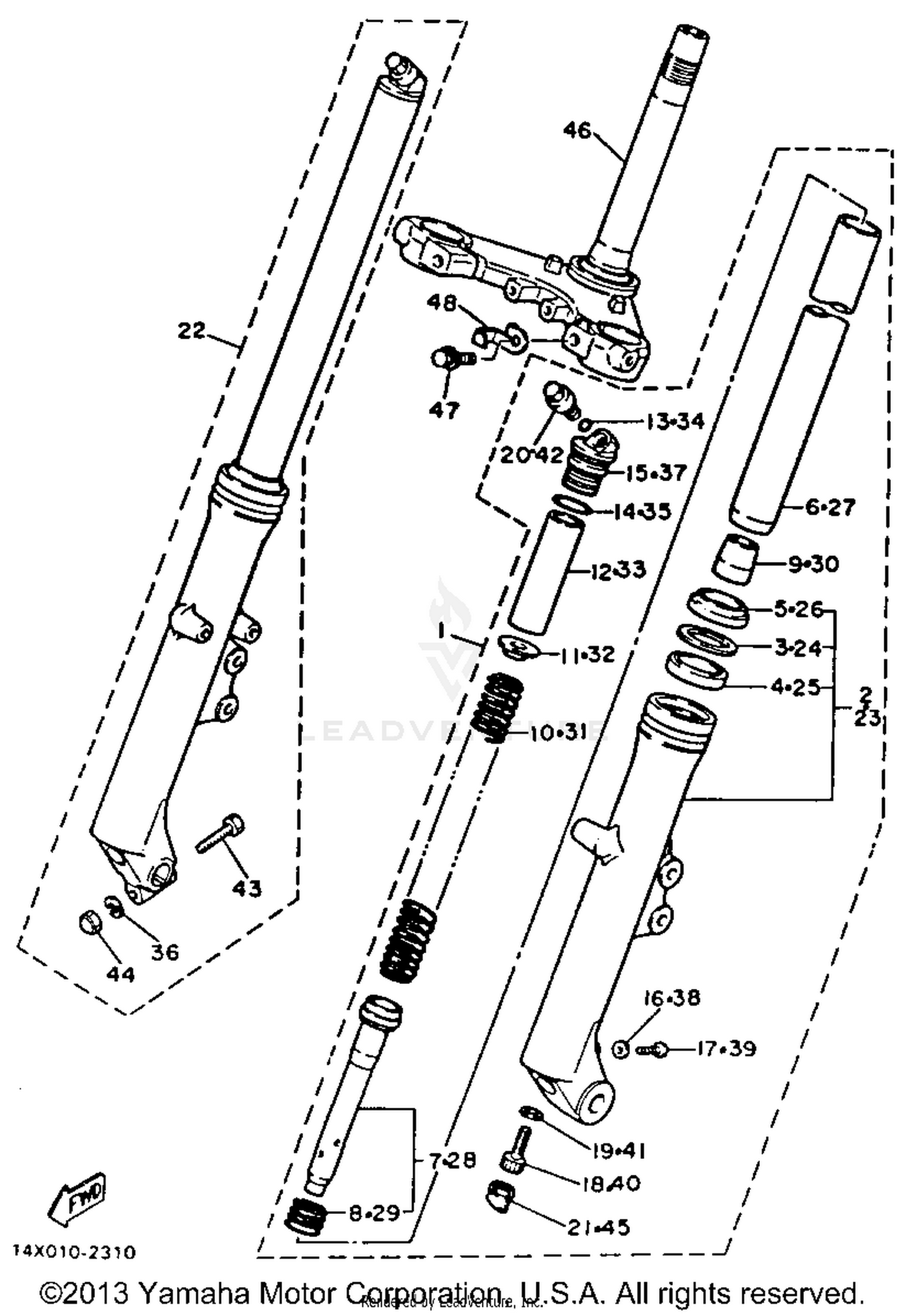

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASS''Y (L.H)
28-V2310-20-00
|
|||
|
Unavailable |
|||
|
#2
TUBE, outer 1
28V-23126-00-6G
|
$212.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
4G0-23145-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, dust
4G0-23144-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
INNER TUBE COMP. 1
14X-23110-00-00
|
$207.99 | ||
|
Unavailable |
|||
|
#7
CYLINDER COMP., front fork
11-H2317-00-00
|
|||
|
Unavailable |
|||
|
#8
SPRING, REBOUND
509-23151-L0-00
|
$16.99 | ||
|
Unavailable |
|||
|
#9
SPINDLE, TAPER
1W1-23173-L0-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, front fork
24R-23141-00-00
|
$28.86 | ||
|
Unavailable |
|||
|
#11
SEAT, SPRING UPPER
583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#12
SPACER
15A-23118-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#13
O-RING
509-23163-L0-00
|
$3.75 | ||
|
Unavailable |
|||
|
#14
GASKET
240-23114-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, cap
14-X2311-10-00
|
|||
|
Unavailable |
|||
|
#16
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
509-23158-L0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
AIR VALVE COMP.
14-X2319-00-00
|
|||
|
Unavailable |
|||
|
#21
PLUG
28-V2312-G0-00
|
|||
|
Unavailable |
|||
|
#22
FRONT FORK ASS''Y (R.H)
28-V2310-30-00
|
|||
|
Unavailable |
|||
|
#23
TUBE, outer 2
28V-23136-00-6G
|
$205.99 | ||
|
Unavailable |
|||
|
#24
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
OIL SEAL
4G0-23145-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
SEAL, dust
4G0-23144-01-00
|
$27.99 | ||
|
Unavailable |
|||
|
#27
INNER TUBE COMP. 1
14X-23110-00-00
|
$207.99 | ||
|
Unavailable |
|||
|
#28
CYLINDER COMP., front fork
11-H2317-00-00
|
|||
|
Unavailable |
|||
|
#29
SPRING, REBOUND
509-23151-L0-00
|
$16.99 | ||
|
Unavailable |
|||
|
#30
SPINDLE, TAPER
1W1-23173-L0-00
|
$31.99 | ||
|
Unavailable |
|||
|
#31
SPRING, front fork
24R-23141-00-00
|
$28.86 | ||
|
Unavailable |
|||
|
#32
SEAT, SPRING UPPER
583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#33
SPACER
15A-23118-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#34
O-RING
509-23163-L0-00
|
$3.75 | ||
|
Unavailable |
|||
|
#35
GASKET
240-23114-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#36
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, cap
14-X2311-10-00
|
|||
|
Unavailable |
|||
|
#38
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#39
SCREW, PAN HEAD
4H1-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#41
GASKET
509-23158-L0-00
|
$16.49 | ||
|
Unavailable |
|||
|
#42
AIR VALVE COMP.
14-X2319-00-00
|
|||
|
Unavailable |
|||
|
#43
BOLT
97026-08045-00
Superseded by 97017-08045-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT
28V-23357-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#45
PLUG
28V-2312G-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#46
UNDER BRACKET COMP. (11H-23340-
11U-23340-30-33
|
$202.99 | ||
|
Unavailable |
|||
|
#47
BOLT 1
4G0-23346-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#48
CLAMP
11-H2312-H0-00
|
|||
|
Unavailable |
|||
