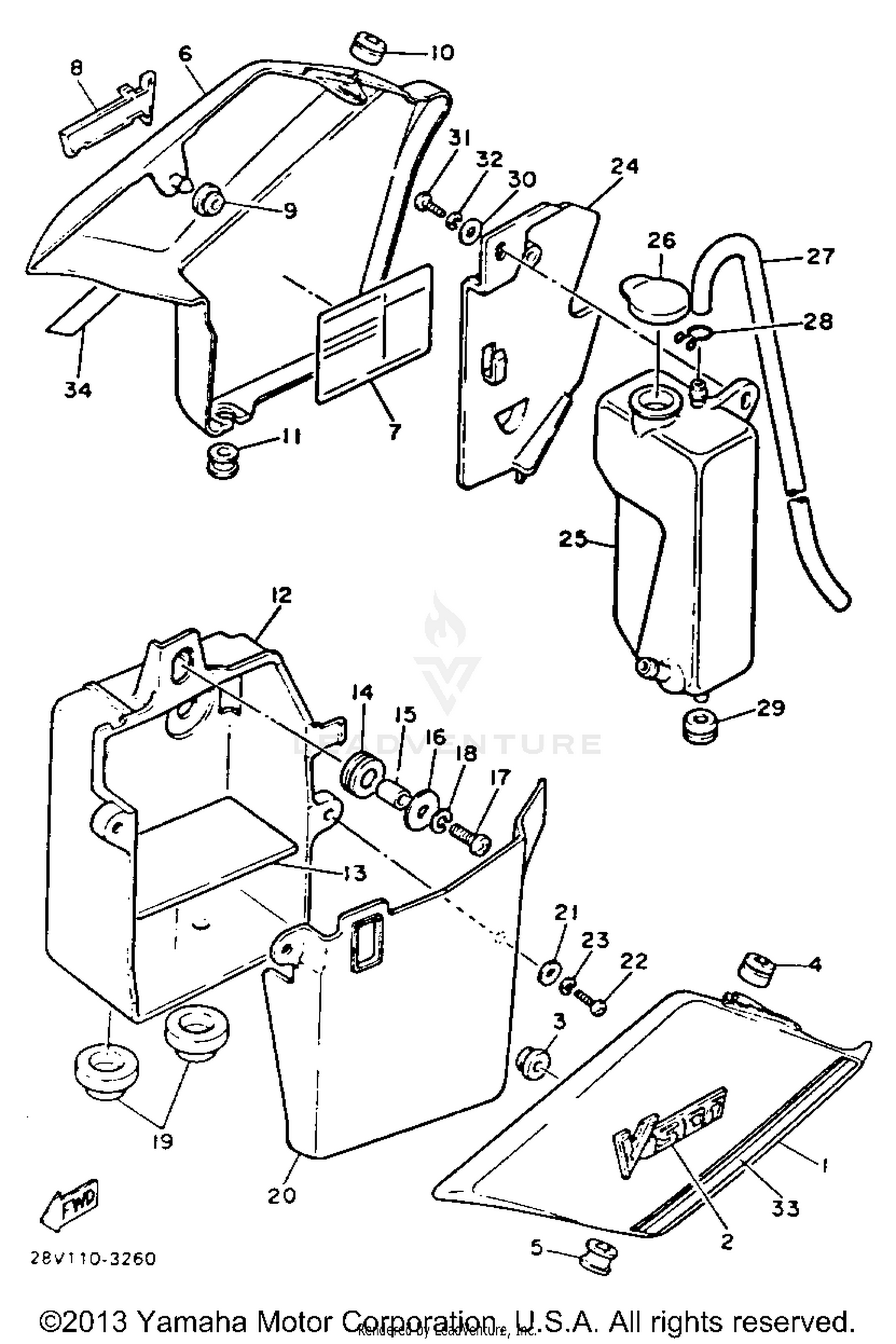

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
11H-21711-00-6G
|
$70.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM 1
11H-21781-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#3
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-12053-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-12296-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, SIDE 2
11H-21721-00-6G
|
$88.99 | ||
|
Unavailable |
|||
|
#7
PLATE, specification
11-H2168-31-00
|
|||
|
Unavailable |
|||
|
#8
EMBLEM 2
11H-21782-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.99 | ||
|
Unavailable |
|||
|
#10
GROMMET
90480-12053-00
|
$6.99 | ||
|
Unavailable |
|||
|
#11
GROMMET
90480-12296-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
BOX COMP.
11H-21240-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#13
DAMPER
11-H2174-70-00
|
|||
|
Unavailable |
|||
|
#14
GROMMET
90480-16233-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
92580-06020-00
Superseded by 98580-06020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-23192-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
LID
11H-28185-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-062A8-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW,PAN HEAD
92506-06016-00
Superseded by 98507-06016-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, bridge
11-H2124-30-00
|
|||
|
Unavailable |
|||
|
#25
TANK, RECOVERY
11H-21871-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#26
CAP
4L0-21815-01-00
Superseded by 1AA-21815-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE
90-44611-18-90
|
|||
|
Unavailable |
|||
|
#28
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GROMMET
90480-12053-00
|
$6.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN HEAD
92580-06020-00
Superseded by 98580-06020-00
|
$7.99 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#33
GRAPHIC 1
28V-2173E-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#34
GRAPHIC 2
28V-2173F-00-00
|
$23.99 | ||
|
Unavailable |
|||
