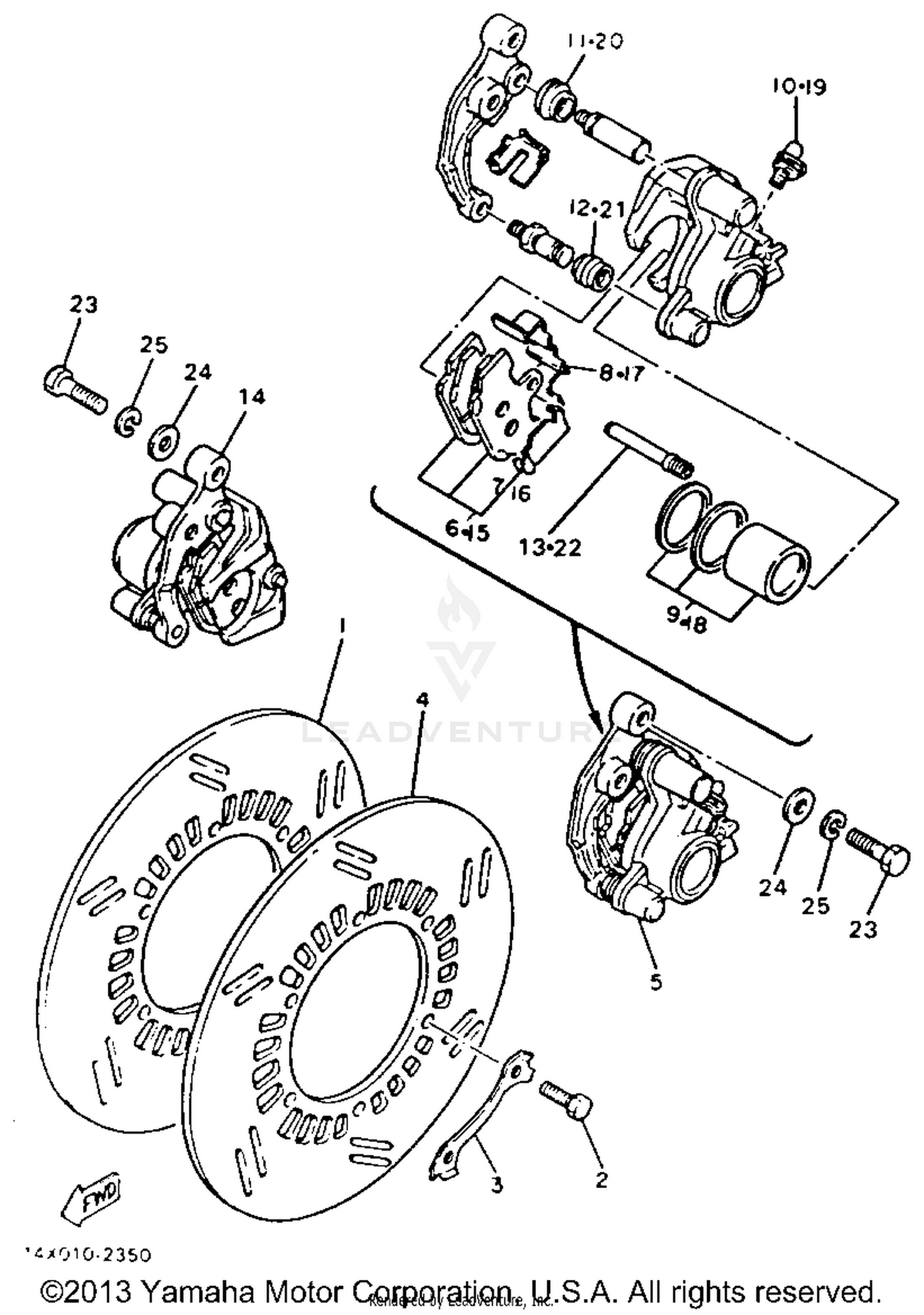

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, brake
28-V2583-10-00
|
|||
|
Unavailable |
|||
|
#2
BOLT
90101-08312-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, lock
11H-25834-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
DISC, brake
28-V2583-11-00
|
|||
|
Unavailable |
|||
|
#5
CALIPER ASSEMBLY (LEFT) (11H-25
29L-2580T-00-00
|
$378.99 | ||
|
Unavailable |
|||
|
#6
BRAKE PAD KIT, FRO (11H-W0045
43F-W0045-01-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CALIPER
11U-25827-10-00
|
$52.99 | ||
|
Unavailable |
|||
|
#8
SUPPORT, PAD
11H-25919-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON ASSEMBLY, CALIPER
4X8-W0057-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT, CALIPER
4X8-25917-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT 2
5R2-25937-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN PAD
34L-25924-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CALIPER ASS''Y (Right)
11U-25810-00-00
|
$244.99 | ||
|
Unavailable |
|||
|
#15
BRAKE PAD KIT, FRO (11H-W0045
43F-W0045-01-00
|
$40.99 | ||
|
Unavailable |
|||
|
#16
SHIM, CALIPER
11U-25827-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SUPPORT, PAD
11H-25919-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#18
PISTON ASSEMBLY, CALIPER
4X8-W0057-00-00
|
$133.99 | ||
|
Unavailable |
|||
|
#19
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#20
BOOT, CALIPER
4X8-25917-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#21
BOOT 2
5R2-25937-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#22
PIN PAD
34L-25924-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE
90105-10308-00
Superseded by 90105-10638-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
