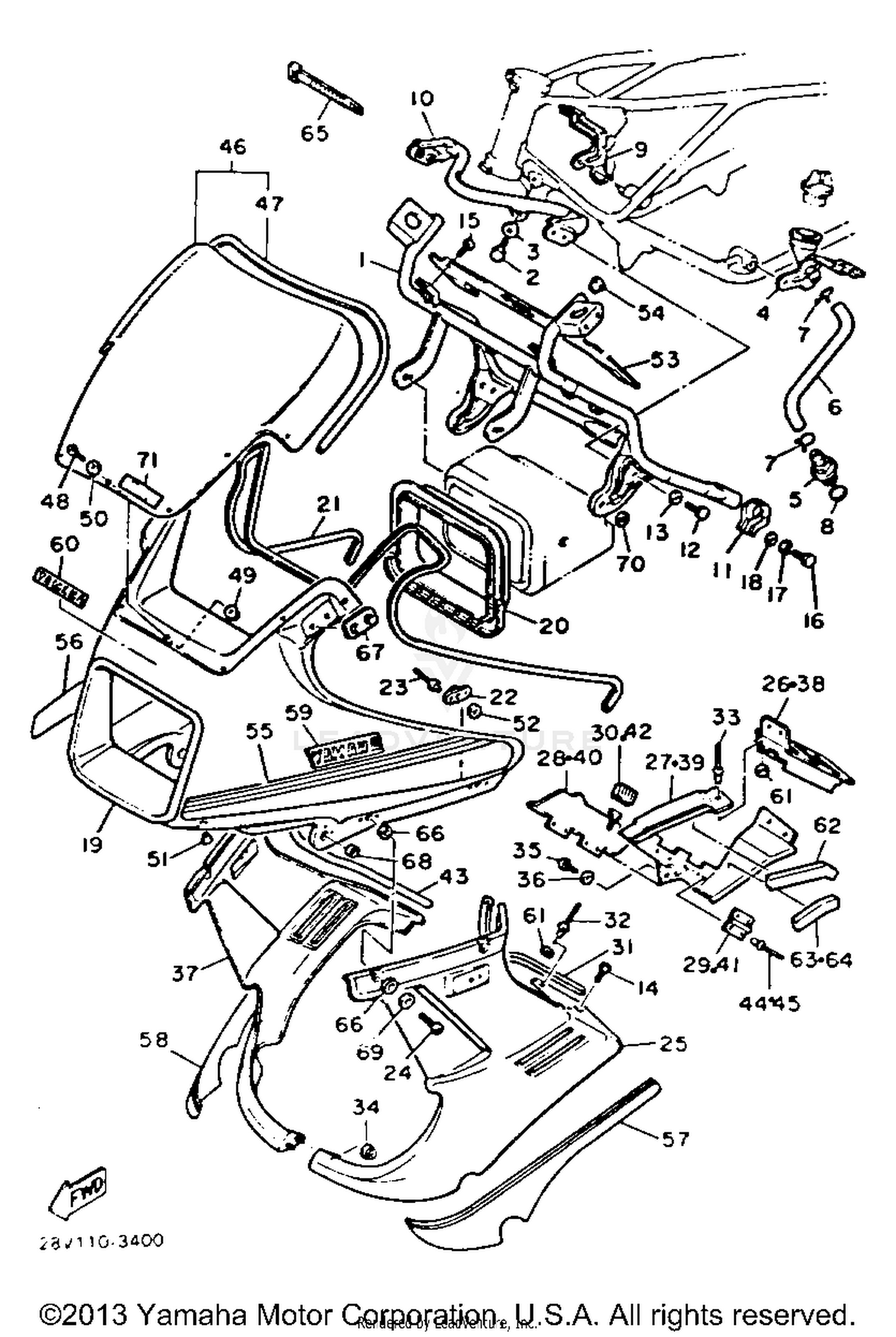

Fairing Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY 1
11U-28356-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#2
BOLT
97016-08016-00
Superseded by 97017-08016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY 2
11U-28359-00-00
|
$69.81 | ||
|
Unavailable |
|||
|
#5
JOINT 2
11U-2834L-00-00
|
$18.86 | ||
|
Unavailable |
|||
|
#6
PIPE, oil
11U-21766-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#7
CLIP
90467-20030-00
Superseded by 90467-20M15-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-27124-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY 3
11U-28358-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#10
STAY, cowling
11U-28369-00-00
|
$129.99 | ||
|
Unavailable |
|||
|
#11
CLAMP, cowling stay 1
11U-2837A-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#12
BOLT
97306-08018-00
Superseded by 97027-08018-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.97 | ||
|
Unavailable |
|||
|
#14
SCREW, ROUND HEAD
90150-06015-00
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BIND
98906-06016-00
Superseded by 98907-06016-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#19
BODY, front upper 1
11U-2835G-00-33
|
$986.99 | ||
|
Unavailable |
|||
|
#20
MOLE, headlight
11U-2838A-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#21
MOLE 1
11U-28345-00-00
|
$31.56 | ||
|
Unavailable |
|||
|
#22
NUT
11-U2836-30-00
|
|||
|
Unavailable |
|||
|
#23
RIVET, BLIND
90267-32103-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, BIND
90149-06183-00
Superseded by 98980-06020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BODY, front lower 1
11U-2835J-00-33
|
$571.99 | ||
|
Unavailable |
|||
|
#26
PANEL, 1
11U-2835U-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#27
PLATE 1
11U-28396-00-00
|
$16.02 | ||
|
Unavailable |
|||
|
#28
PLATE
11U-28336-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#29
HINGE
11-U2837-F0-10
|
|||
|
Unavailable |
|||
|
#30
CAP
11U-28349-00-00
|
$2.75 | ||
|
Unavailable |
|||
|
#31
MOLE 2
11U-28346-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#32
RIVET, BLIND
90267-32103-00
|
$2.34 | ||
|
Unavailable |
|||
|
#33
RIVET, BLIND
90267-32103-00
|
$2.34 | ||
|
Unavailable |
|||
|
#34
NUT
90179-06500-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, TAPPING
97701-60114-00
Superseded by 97707-60514-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER
92906-06200-00
Superseded by 92907-06200-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BODY, front lower 2
11U-2835K-00-33
|
$499.99 | ||
|
Unavailable |
|||
|
#38
PANEL, 2
11U-2835V-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#39
PLATE 2
11U-28397-00-00
|
$16.02 | ||
|
Unavailable |
|||
|
#40
HOLDER
11U-28337-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#41
HINGE
11-U2837-F0-10
|
|||
|
Unavailable |
|||
|
#42
CAP
11U-28349-00-00
|
$2.75 | ||
|
Unavailable |
|||
|
#43
MOLE 2
11U-28346-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#44
RIVET, BLIND
90267-32103-00
|
$2.34 | ||
|
Unavailable |
|||
|
#45
RIVET, BLIND
90267-32103-00
|
$2.34 | ||
|
Unavailable |
|||
|
#46
WINDSCREEN ASS''Y
28V-28380-00-00
|
$207.99 | ||
|
Unavailable |
|||
|
#47
TRIM
11U-28376-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#48
SCREW, pan head
90157-04040-00
|
$2.95 | ||
|
Unavailable |
|||
|
#49
NUT, FLANGE
95706-04100-00
Superseded by 95707-04500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER, plate
90202-04141-00
|
$1.10 | ||
|
Unavailable |
|||
|
#51
GROMMET
90480-10068-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
WASHER, plate
90201-076G3-00
|
$3.27 | ||
|
Unavailable |
|||
|
#53
HOOD 1
11U-2835E-00-00
|
$21.56 | ||
|
Unavailable |
|||
|
#54
PLUG
90338-18122-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
GRAPHIC 1
28V-28391-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#56
GRAPHIC 2
28V-28392-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#57
GRAPHIC 3
28V-28393-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#58
GRAPHIC 4
28V-28394-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#59
EMBLEM 1
3X0-24161-01-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
EMBLEM, YAMAHA
3X4-24786-01-00
Superseded by 99245-00080-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
WASHER
92906-03200-00
Superseded by 92907-03200-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
DAMPER
24R-28372-00-00
|
$0.95 | ||
|
Unavailable |
|||
|
#63
DAMPER (L.H)
24R-2834E-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#64
DAMPER (R.H)
24R-2834F-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#65
BAND, SWITCH CORD
437-83936-11-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#66
WASHER, plate
90201-055G9-00
|
$1.50 | ||
|
Unavailable |
|||
|
#67
DAMPER 5
24R-2837J-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#68
COLLAR
90387-120J3-00
|
$3.75 | ||
|
Unavailable |
|||
|
#69
WASHER, PLATE
90201-066G2-00
Superseded by 90201-06020-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
WASHER, plate
90-20117-6G-10
|
|||
|
Unavailable |
|||
|
#71
LABEL, caution
13X-2835Y-00-00
|
$11.99 | ||
|
Unavailable |
|||
