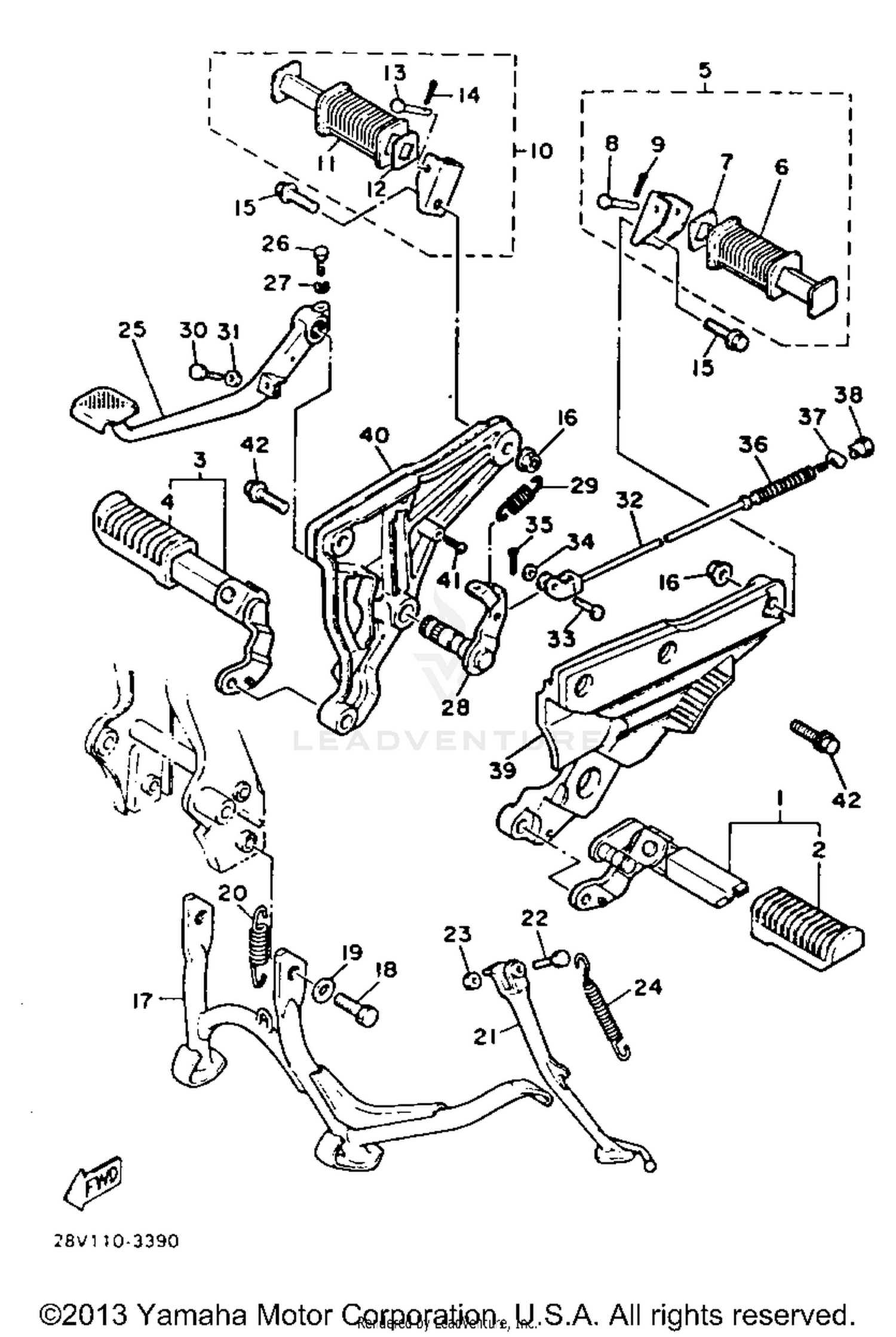

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FOOTREST ASS''Y (L.H)
28V-27410-00-R4
|
$77.99 | ||
|
Unavailable |
|||
|
#2
COVER, FOOTREST
4L0-27423-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRONT FOOTREST ASS''Y (R.H)
11U-27420-00-R4
|
$64.99 | ||
|
Unavailable |
|||
|
#4
COVER, FOOTREST
4L0-27423-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#5
REAR FOOTREST ASS''Y 1
4G0-27430-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#6
COVER, RR FOOTREST
447-27433-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPEC'L SHAPE
90209-18070-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, WITH HOLE
90240-06042-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
REAR FOOTREST ASS''Y 2
4G0-27440-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#11
COVER, RR FOOTREST
447-27433-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#12
WASHER, SPEC'L SHAPE
90209-18070-00
|
$2.44 | ||
|
Unavailable |
|||
|
#13
PIN, WITH HOLE
90240-06042-00
|
$2.76 | ||
|
Unavailable |
|||
|
#14
PIN, COTTER
91401-16020-00
Superseded by 91490-16020-00
|
$6.20 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95811-10040-00
Superseded by 95814-10040-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAND, main
11-H2711-10-0R
|
|||
|
Unavailable |
|||
|
#18
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-10752-00
Superseded by 90201-100A1-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, tension
90506-40256-00
|
$17.49 | ||
|
Unavailable |
|||
|
#21
STAND, side
28V-27311-00-R4
|
$64.99 | ||
|
Unavailable |
|||
|
#22
BOLT
90109-10590-00
Superseded by 90109-10473-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TENSION
90507-29009-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PEDAL, brake
11U-27211-00-93
|
$89.99 | ||
|
Unavailable |
|||
|
#26
BOLT
90109-06468-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHAFT, brake pedal
11-H2721-20-00
|
|||
|
Unavailable |
|||
|
#29
SPRING, tension
90506-18319-00
|
$11.49 | ||
|
Unavailable |
|||
|
#30
SCREW, HEXAGON
90153-06008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
ROD, BRAKE
28V-27231-00-00
Superseded by 11U-27231-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#33
PIN, clevis
90240-06079-00
|
$4.50 | ||
|
Unavailable |
|||
|
#34
WASHER
92906-06200-00
Superseded by 92907-06200-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPRING, COMPRESSION
90501-10609-00
|
$4.75 | ||
|
Unavailable |
|||
|
#37
PIN, SPEC''L SHAPE
90249-12150-00
|
$2.05 | ||
|
Unavailable |
|||
|
#38
NUT, SPEC''L SHAPE
90179-06324-00
|
$5.99 | ||
|
Unavailable |
|||
|
#39
BRACKET 2
28-VW274-20-00
|
|||
|
Unavailable |
|||
|
#40
BRACKET 3
28-VW274-30-00
|
|||
|
Unavailable |
|||
|
#41
HOOK 1
4L-02744-E0-00
|
|||
|
Unavailable |
|||
|
#42
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
