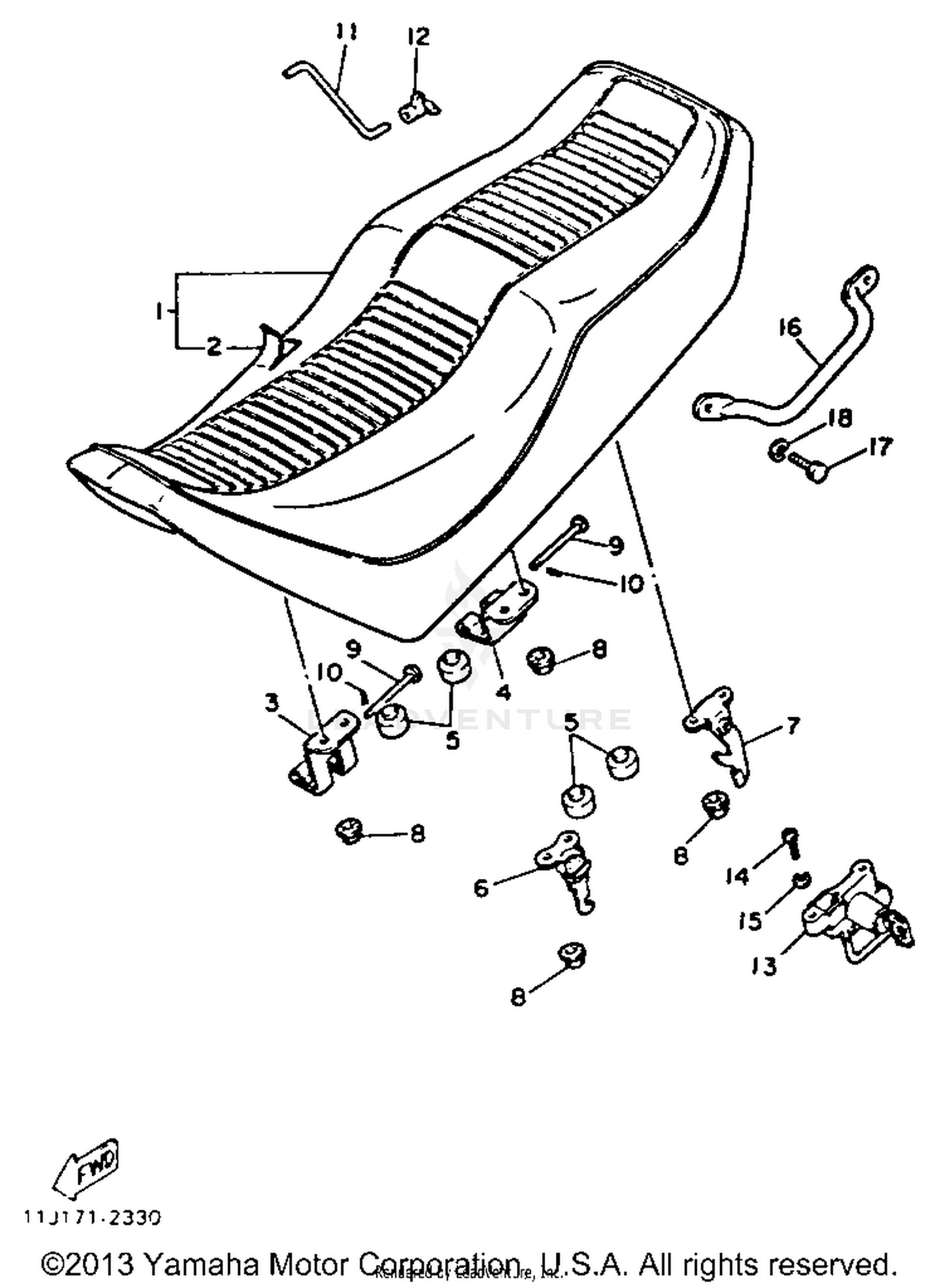

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY
14X-W2472-00-00
|
$195.99 | ||
|
Unavailable |
|||
|
#2
COVER, seat
11H-24731-00-00
|
$142.99 | ||
|
Unavailable |
|||
|
#3
HINGE, seat
11-H2472-60-00
|
|||
|
Unavailable |
|||
|
#4
HINGE, seat
11-H2476-90-00
|
|||
|
Unavailable |
|||
|
#5
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, SEAT
4K0-24728-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#7
SEAT LEVER ASS''Y
4K0-24760-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#8
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, CLEVIS
91701-05055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPPER
11H-24768-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#12
BRACKET, SEAT
1J7-24718-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#13
SEAT LOCK ASS''Y (11H-24705-00)
4K0-24705-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
HANDLE, standing
11H-21165-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#17
BOLT
97016-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
