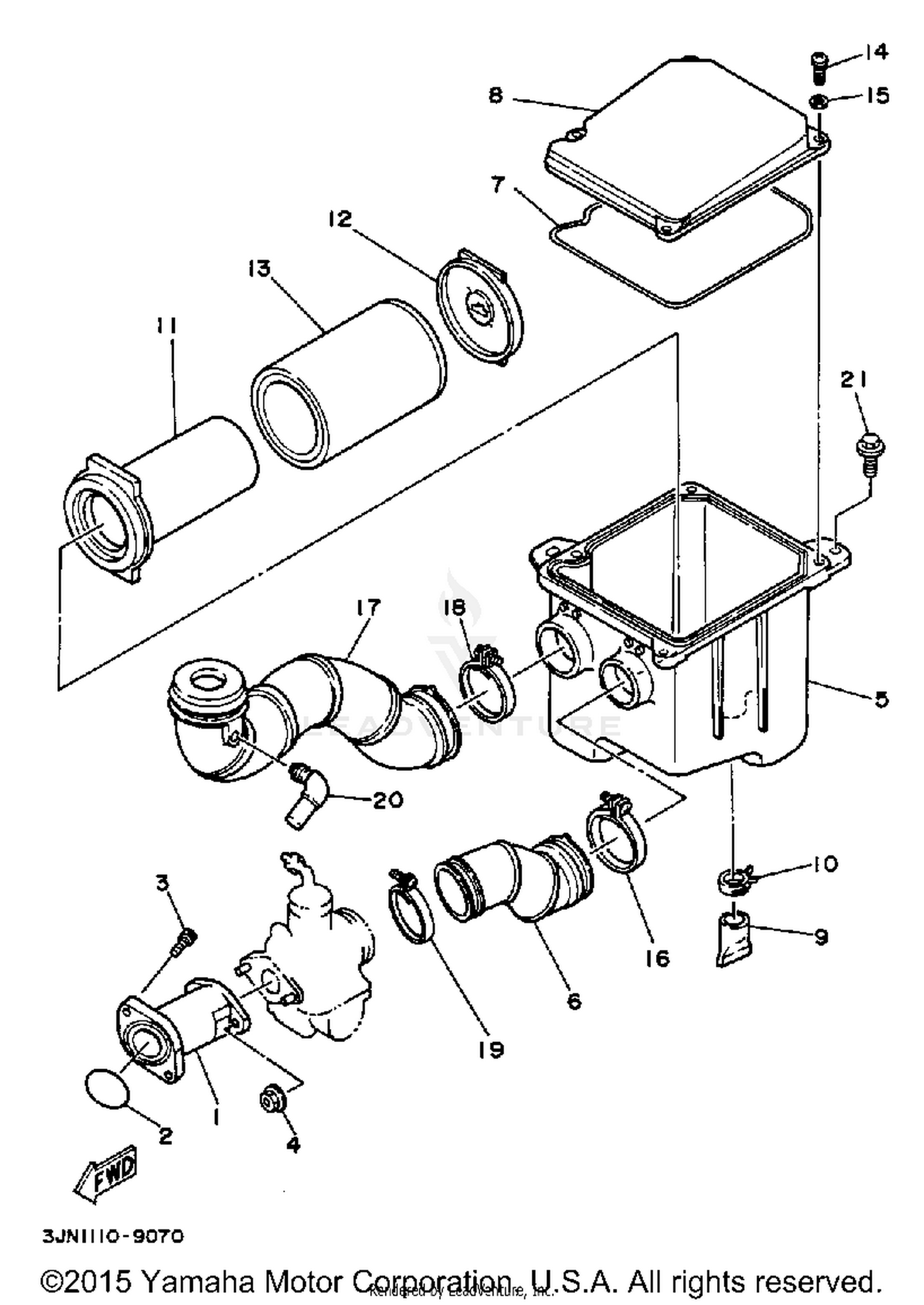

Air Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
24W-13586-02-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-35537-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE, AIR CLEANER 1
3GH-14411-00-00
Superseded by 3GH-14411-01-00
|
$55.99 | ||
|
Unavailable |
|||
|
#6
JOINT, AIR CLNR 1
3JN-14453-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#7
SEAL
1VJ-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, CLEANER CASE 1
21V-14412-00-00
Superseded by 21V-14412-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL
59V-14457-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-22080-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE
1YW-14458-00-00
Superseded by 1YW-14458-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE,ELEMENT FITTING
1UY-14468-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
ELEMENT,AIR CLNR
1YW-14451-00-00
Superseded by 1YW-14451-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE CLAMP ASSY
90460-56105-00
Superseded by 90450-56001-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DUCT
3JN-14437-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#18
HOSE CLAMP ASSY
90460-58015-00
Superseded by 90450-58002-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE CLAMP ASSY
90460-45040-00
Superseded by 90450-45075-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE
2NL-14419-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
