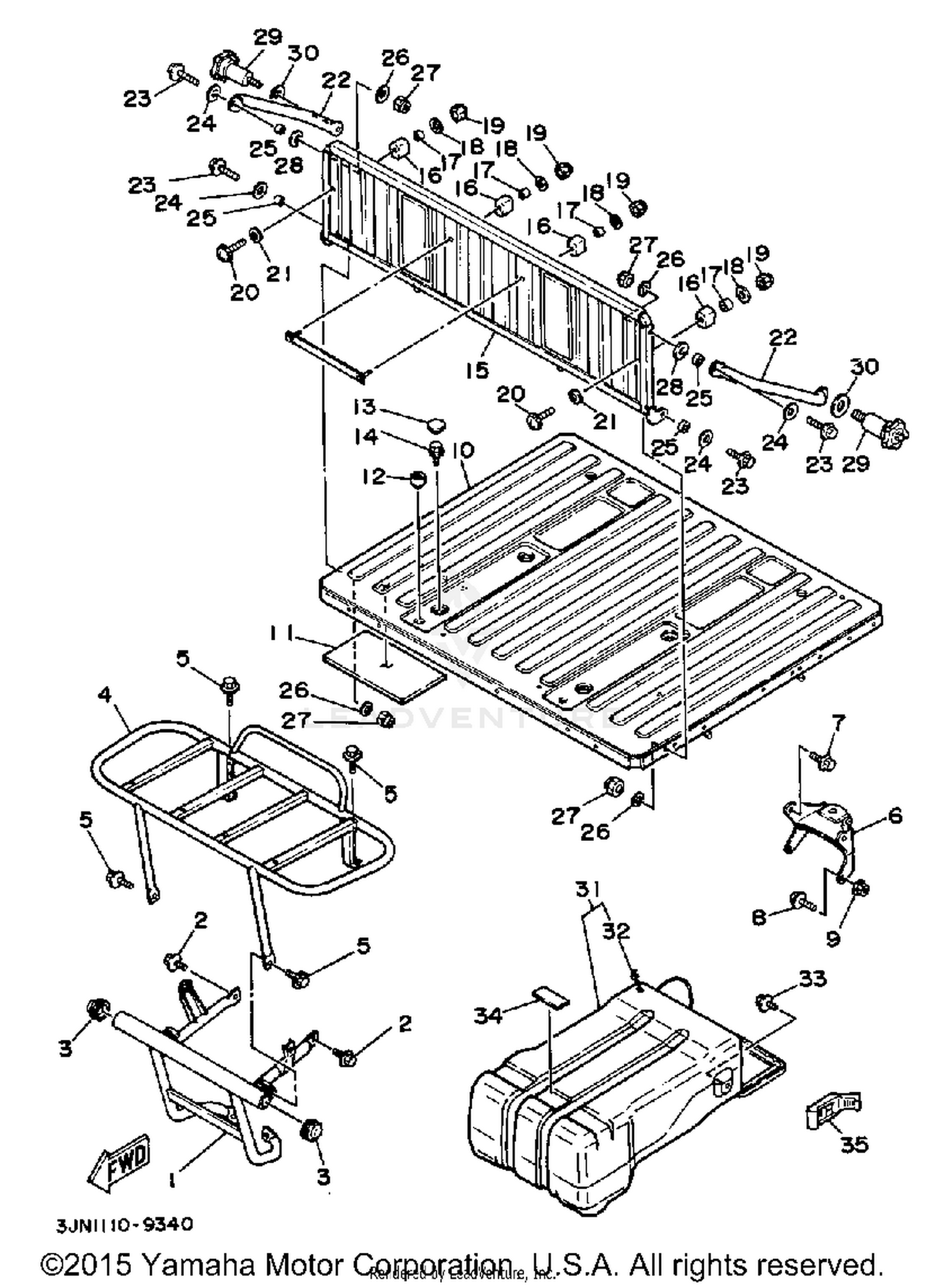

Carrier - Guard Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, CARRY FRONT
3JN-2845N-00-00
|
$206.99 | ||
|
Unavailable |
|||
|
#2
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER 1
2HR-28415-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARRIER,FRONT
3JN-24841-00-00
Superseded by 3JN-24841-10-00
|
$220.99 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOOK
3JN-28488-00-00
Superseded by 3JN-28488-01-00
|
$51.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95811-10016-00
Superseded by 95817-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
91021-10025-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
CARRIER, REAR
3JN-24842-00-00
|
$626.99 | ||
|
Unavailable |
|||
|
#11
GUARD, FLAP
3JN-21642-00-00
|
$16.44 | ||
|
Unavailable |
|||
|
#12
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
148-22315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95811-10016-00
Superseded by 95817-10016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
NUT, SPRING
3JN-2840K-00-00
|
$246.99 | ||
|
Unavailable |
|||
|
#16
DAMPER 1
3JN-28415-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#17
COLLAR
90387-06761-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, NYLON
95701-06300-00
Superseded by 95707-06300-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, FRT BUMPER 1
3JN-28413-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE
95821-08025-00
Superseded by 95817-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-08107-00
Superseded by 90201-086A3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-08057-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90202-13159-00
|
$2.80 | ||
|
Unavailable |
|||
|
#29
KNOB, HANDLEBAR
3JN-23450-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-08649-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CARRIER BOX ASSEMBLY
3JN-24850-00-00
|
$95.66 | ||
|
Unavailable |
|||
|
#32
STOPPER, SADDLE BAG
59V-2845L-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#33
BOLT, WITH WASHER
90119-06114-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
DAMPER
1YW-21638-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
BAND
59V-21646-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
