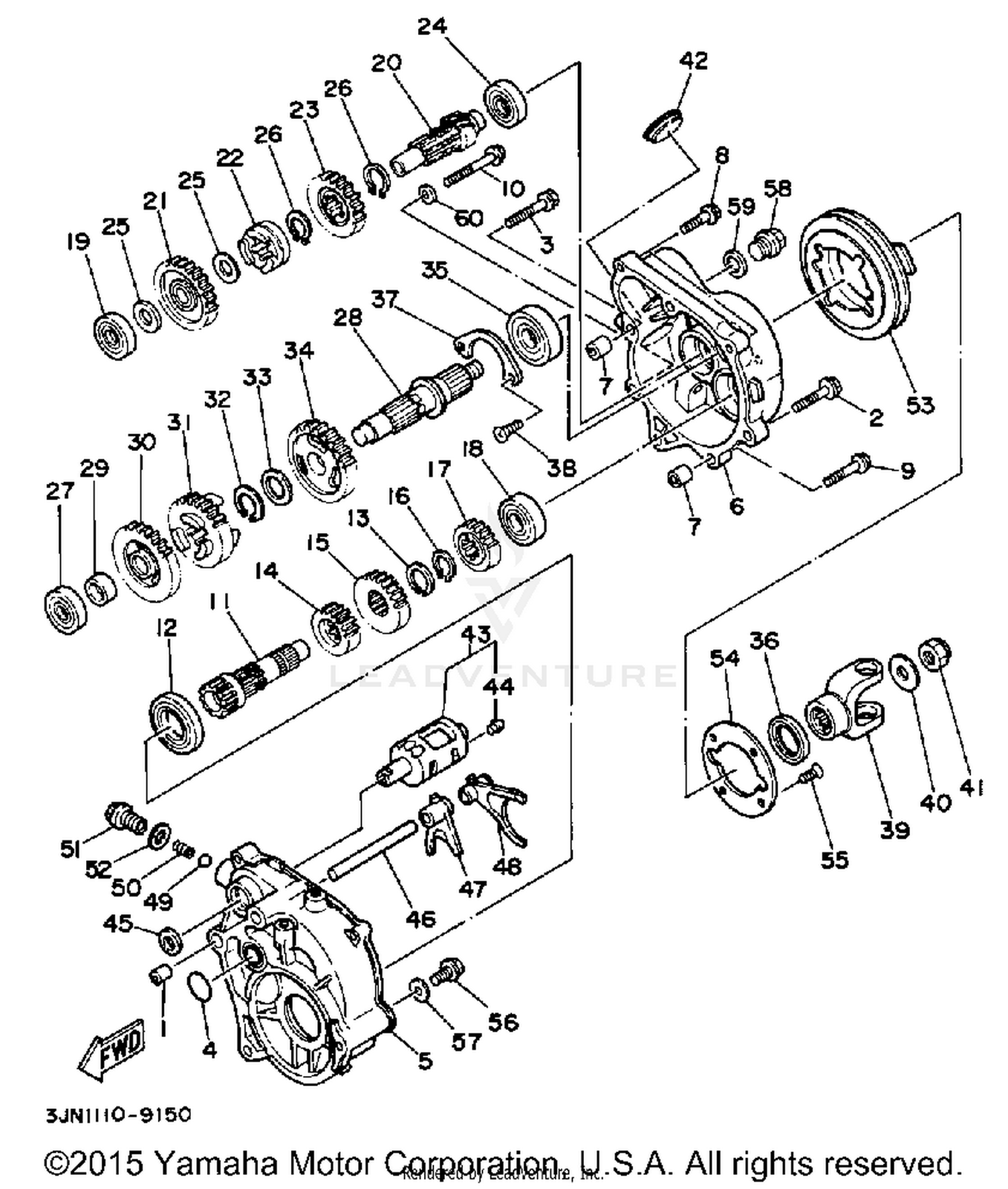

Sub Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
91011-08100-00
Superseded by 95817-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
91011-08110-00
Superseded by 95814-08110-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-24235-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE, TRANSMISSION
3GH-17911-00-00
|
$284.99 | ||
|
Unavailable |
|||
|
#6
CASE, TRANS. 2
3JN-17912-00-00
|
$191.99 | ||
|
Unavailable |
|||
|
#7
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (SMALL HEAD)
95023-06030-00
Superseded by 95024-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (SMALL HEAD)
95023-06040-00
Superseded by 95024-06040-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95021-06065-00
Superseded by 95027-06065-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE, DRIVE GEAR
3GH-17861-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#12
BEARING
93306-90702-00
|
$53.99 | ||
|
Unavailable |
|||
|
#13
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, REV. PINION 1 (15T)
3GH-17143-01-00
|
$45.99 | ||
|
Unavailable |
|||
|
#15
GEAR, HIGH PINION
3JN-17123-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#16
CIRCLIP, S-TYPE
93410-20070-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, LOW PINION
3GH-17133-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#18
BEARING
93306-30315-00
Superseded by 93306-30302-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-20326-00
Superseded by 93306-20335-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
AXLE, COUNTER
3JN-17431-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#21
GEAR, REV. WHEEL 1
3GH-17243-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#22
CLUTCH, DOG
3GH-17285-00-00
|
$42.30 | ||
|
Unavailable |
|||
|
#23
GEAR, REV. PINION 2
3GH-17153-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#24
BEARING
93306-20326-00
Superseded by 93306-20335-00
|
$32.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-174E3-00
|
$3.85 | ||
|
Unavailable |
|||
|
#26
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93306-20326-00
Superseded by 93306-20335-00
|
$32.99 | ||
|
Unavailable |
|||
|
#28
SHAFT
3JN-17523-00-00
|
$130.99 | ||
|
Unavailable |
|||
|
#29
COLLAR
90387-202A0-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GEAR, HIGH WHEEL
3JN-17223-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#31
GEAR, REV. WHEEL 2
3GH-17253-00-00
|
$124.99 | ||
|
Unavailable |
|||
|
#32
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#33
WASHER
90209-22191-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
GEAR, LOW WHEEL
3GH-17233-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#35
BEARING (B6205C4)
93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
OIL SEAL
93102-35393-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
UNAVAILABLE IN PRICE BOOKCOVER
1U-Y1538-30-00
|
|||
|
Unavailable |
|||
|
#38
SCREW, COUNTERSUNK
90151-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
YOKE, JOINT
1YW-17556-01-00
|
$243.99 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90201-14633-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLUG, SPEC''L SHAPE
90338-40215-00
|
$7.99 | ||
|
Unavailable |
|||
|
#43
SHIFTER ASSEMBLY
3JN-18420-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#44
POINT, NEUTRAL
3GH-18542-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
OIL SEAL
93102-15212-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BAR, SHIFT FORK GUIDE 2
22U-18535-00-00
Superseded by 4TR-18535-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
FORK, SHIFT 1
3GH-18311-00-00
|
$51.82 | ||
|
Unavailable |
|||
|
#48
FORK, SHIFT 2
3GH-18312-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#49
BALL
93503-08007-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPRING, COMPRESSION
90501-10353-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE
90105-14367-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
GASKET
90430-14194-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOOT, RUBBER
3JN-22189-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#54
PLATE 1
3GH-17665-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#55
SCREW, FLAT HEAD
98701-06012-00
Superseded by 98707-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#58
PLUG, STRAIGHT SCREW
90340-16019-00
|
$7.99 | ||
|
Unavailable |
|||
|
#59
GASKET
90430-16048-00
|
$4.10 | ||
|
Unavailable |
|||
|
#60
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
