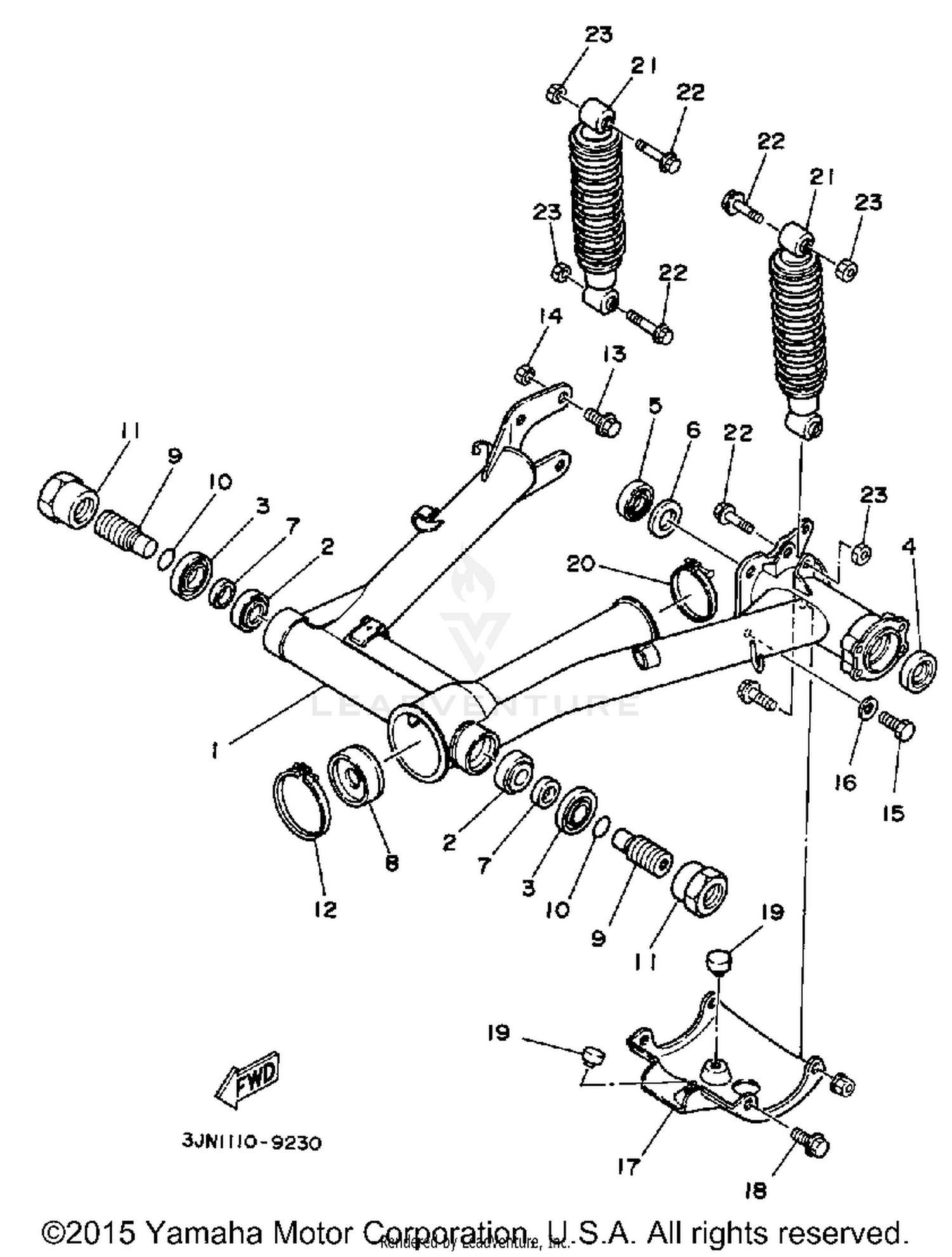

Swing Arm - Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
3JN-22110-00-33
|
$452.99 | ||
|
Unavailable |
|||
|
#2
BEARING, TAPRD #32
93332-00027-00
|
$29.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL, SD-TYPE
93102-40080-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93101-35097-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL, SWO-TYPE
93110-33022-00
|
$8.99 | ||
|
Unavailable |
|||
|
#6
COVER, HUB DUST
3JN-25367-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#7
COLLAR
90387-255V2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH
3JN-22184-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#9
SHAFT, PIVOT
3JN-22141-00-00
|
$38.67 | ||
|
Unavailable |
|||
|
#10
O-RING
93210-22298-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90170-33376-00
Superseded by 90170-33011-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, HOSE
90460-99289-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WASHER BASED
90105-12576-00
|
$2.97 | ||
|
Unavailable |
|||
|
#14
NUT, SELF-LOCKING
90185-12046-00
Superseded by 90185-12134-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (8J7)
97013-10030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-100F7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER
3JN-2219X-00-00
|
$126.99 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, MIN STAND
116-27114-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP, HOSE
90460-80229-00
|
$9.99 | ||
|
Unavailable |
|||
|
#21
SHK/ABS ASSEMBLY, REARASSEMBLY,
3JN-22210-00-33
|
$252.99 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE
90105-10469-00
Superseded by 90105-10402-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U
95601-10100-00
Superseded by 95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
