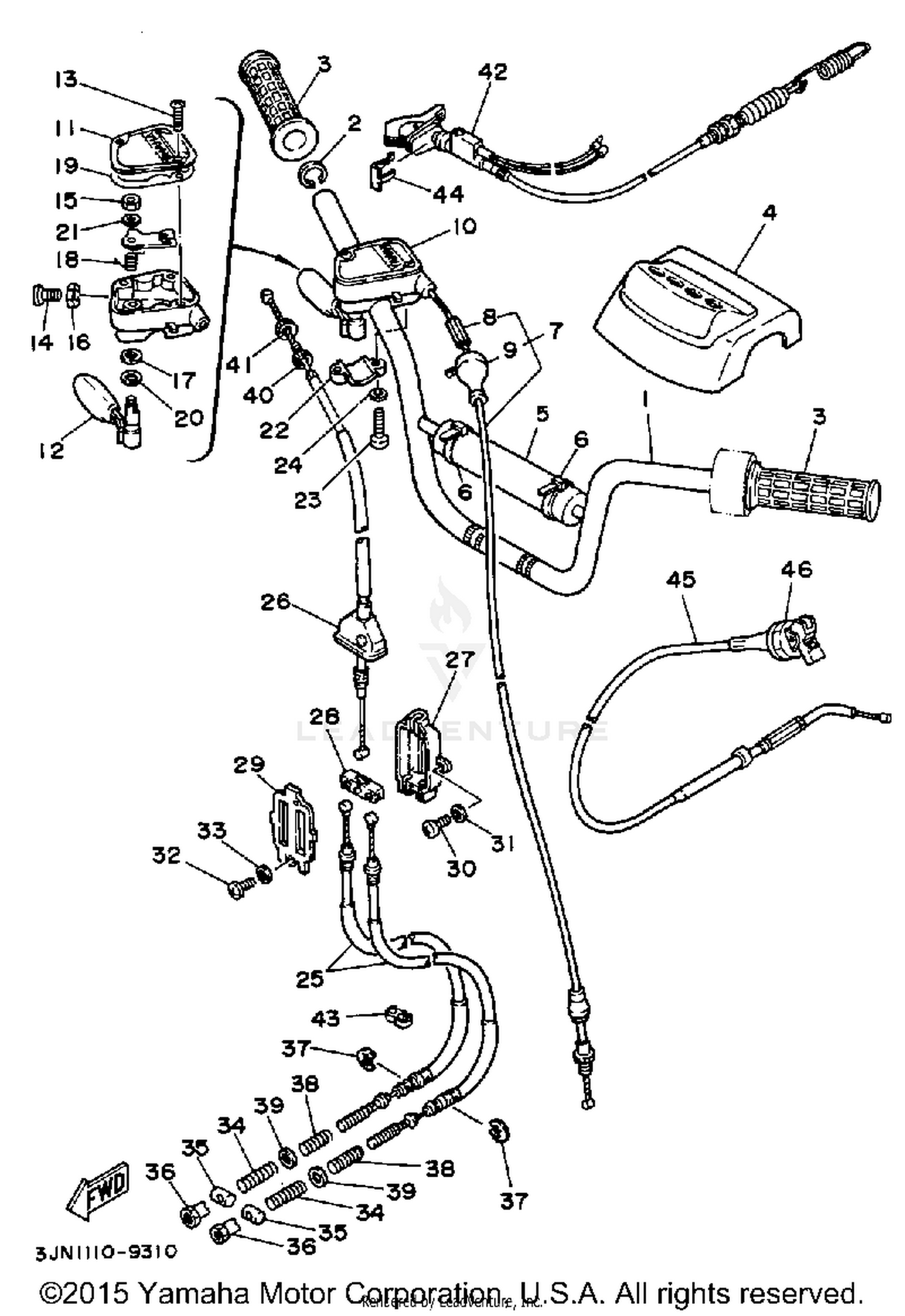

Handlebar - Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
3JN-26111-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-22660-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP
3GB-26241-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR, HDLBRHANDLEBAR
3JN-26124-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#5
PROTECTOR 1
3JN-2622K-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#6
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, THROTTLE 1
21V-26311-10-00
|
$36.99 | ||
|
Unavailable |
|||
|
#8
NUT, SPEC''L SHAPE
90179-06139-00
|
$1.54 | ||
|
Unavailable |
|||
|
#9
CAP, RUBBER
21V-26329-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#10
THROTTLE LEVER ASSEMBLY
1NV-26250-11-00
|
$123.99 | ||
|
Unavailable |
|||
|
#11
CAP, GEAR
1NV-2628F-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, THROTTLE
1NV-2625G-01-00
Superseded by 1NV-2625G-02-00
|
$57.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U
95612-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95316-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93104-09025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
1NV-26304-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
1NV-2628G-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
1NV-26129-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPECIAL
53L-83909-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#22
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE, BRAKE
3JN-26361-00-00
Superseded by 3JN-26361-01-00
|
$63.99 | ||
|
Unavailable |
|||
|
#26
CABLE,BRAKE 4
3JN-26373-00-00
Superseded by 3JN-26373-01-00
|
$54.99 | ||
|
Unavailable |
|||
|
#27
HOUSING, BRAKE LINK
52H-26371-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
JOINT, CABLE
52H-26347-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE
52H-2631G-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER
92902-03600-00
Superseded by 92907-03600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, COMPRESSION
90501-10782-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, COMPRESSION
90501-123A0-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER
90209-06265-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#42
WIRE, CONTROL 6
3JN-2637M-00-00
|
$128.99 | ||
|
Unavailable |
|||
|
#43
CLIP
90468-05188-00
|
$2.40 | ||
|
Unavailable |
|||
|
#44
CIRCLIP
2GU-25866-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
STARTER CABLE 1
59V-26331-01-00
Superseded by 59V-26331-02-00
|
$28.99 | ||
|
Unavailable |
|||
|
#46
NUT
8G8-26333-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
