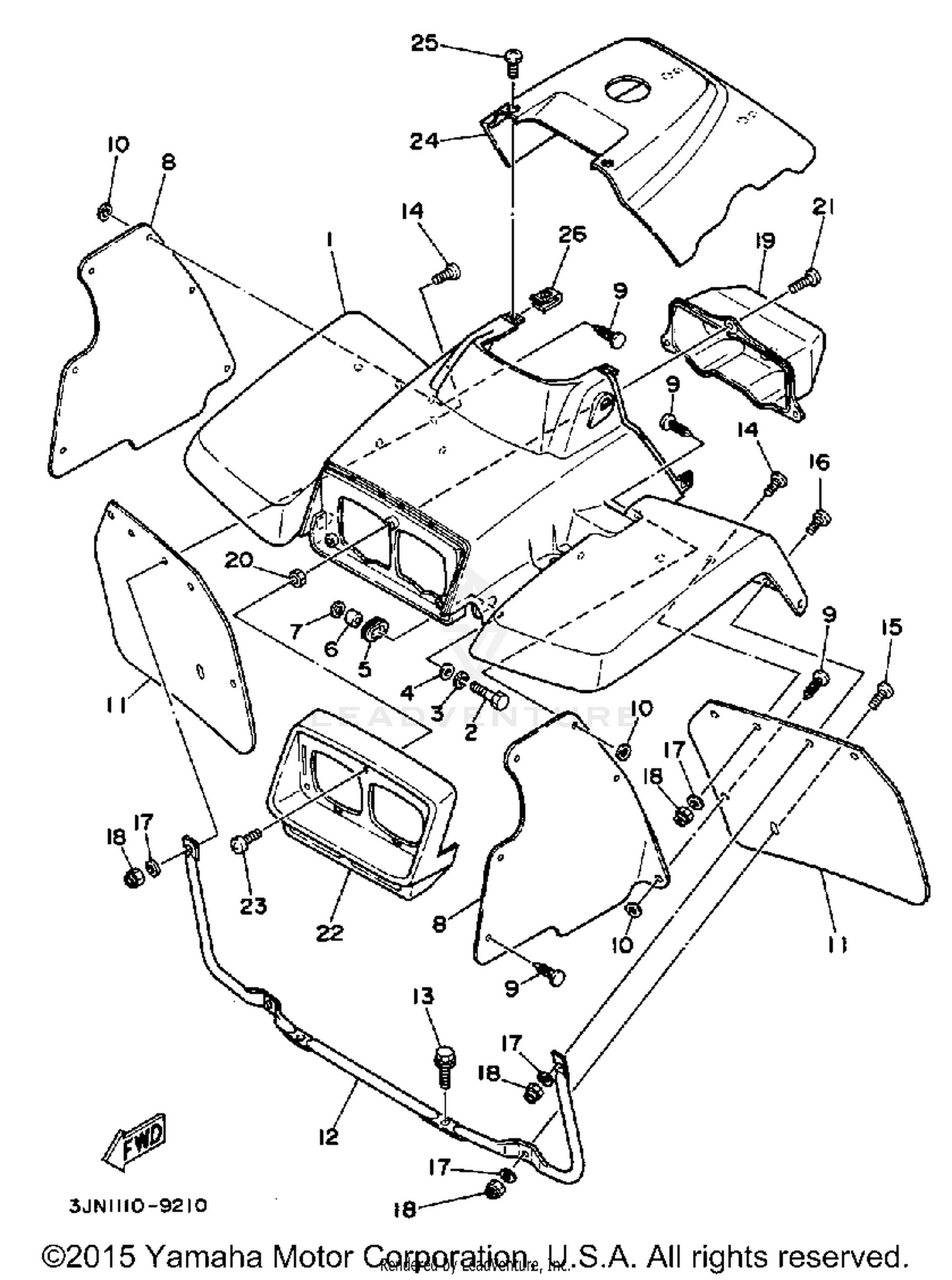

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
3JN-21511-10-00
|
$209.99 | ||
|
Unavailable |
|||
|
#2
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-01400-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06553-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06074-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER 1
3JN-21541-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#9
RIVET
90269-05039-00
Superseded by 90269-05055-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-04325-00
Superseded by 90201-04027-00
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLAP, FRONT FENDER
3JN-21521-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#12
STAY, FENDER 1
3JN-21513-00-00
|
$140.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, BINDING
90154-05059-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BINDING
90154-05002-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, BINDING
90154-05005-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-05029-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE
95701-05300-00
Superseded by 95707-05300-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
BODY, HEADLIGHT
2HR-84111-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#20
NUT
90170-05362-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, BIND
98901-05014-00
Superseded by 98907-05014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PANEL, FRONT
2HR-23391-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, TOP
3JN-2171A-10-00
|
$56.99 | ||
|
Unavailable |
|||
|
#25
SCREW, BINDING
90154-05041-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
