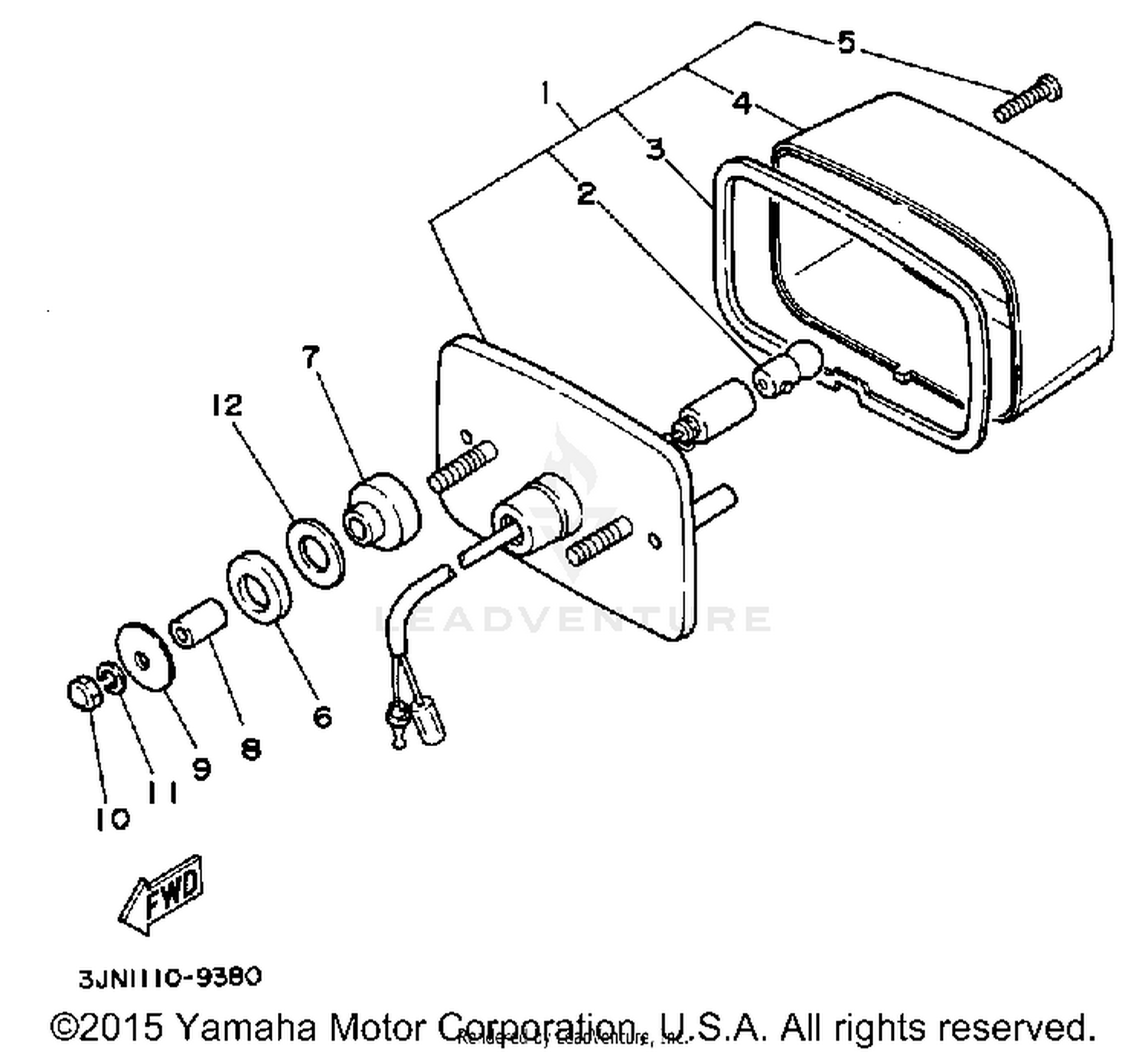

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
3GD-84710-00-00
Superseded by 3GB-84710-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-7.5W)
3GD-84714-00-00
Superseded by 3GD-84714-00-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, LENS
1K8-84523-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, TAILLIGHT
1K8-84521-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
97780-40130-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90202-14077-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-10509-00
|
$25.99 | ||
|
Unavailable |
|||
|
#8
COLLAR
90387-06027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06074-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-14218-00
Superseded by 90201-15797-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
