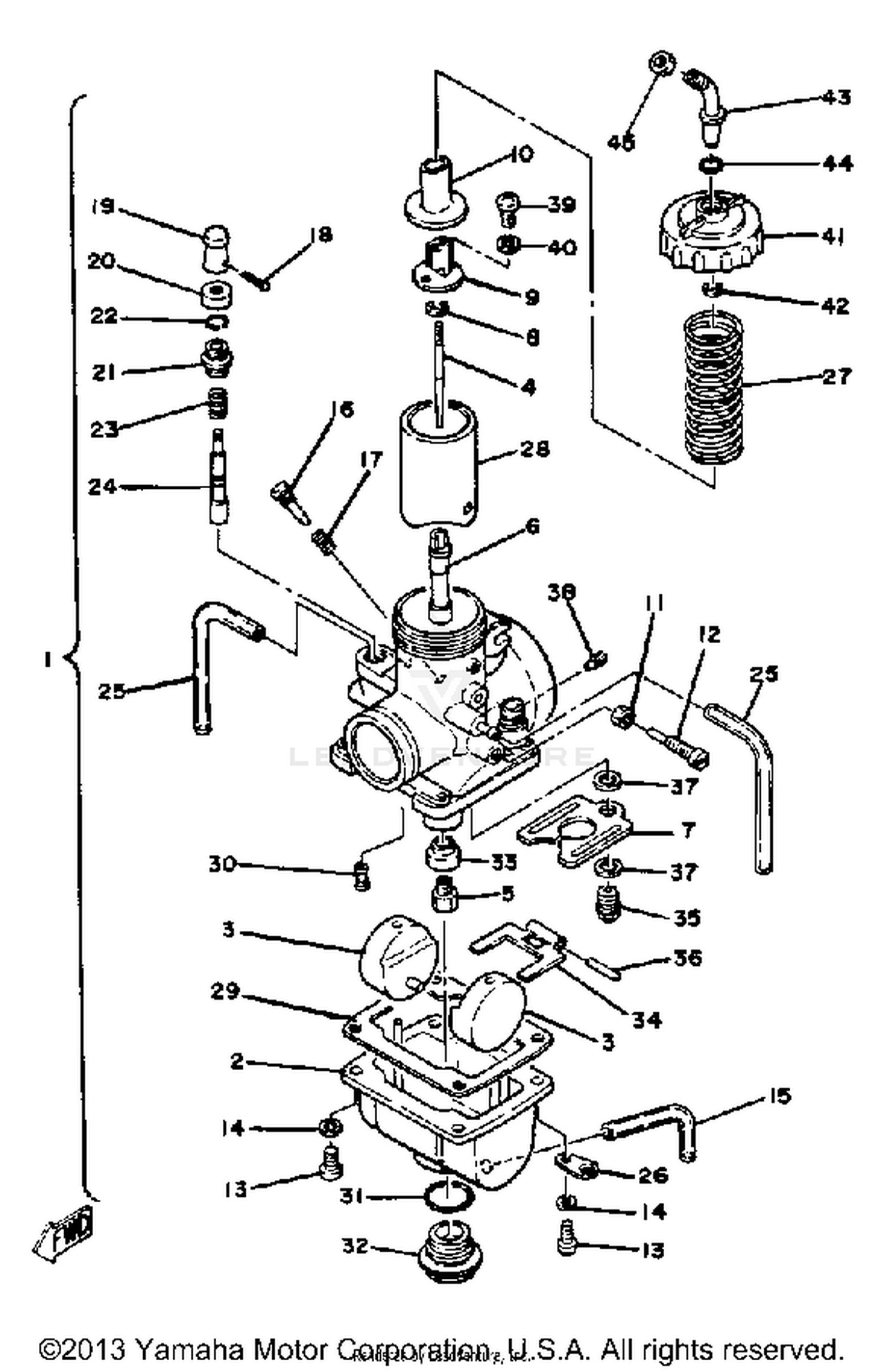

Carburetor Yz125g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
4V2-14101-00-00
|
$232.99 | ||
|
Unavailable |
|||
|
#2
BODY, FLOAT CHMBR 1
3R3-14181-16-00
|
$27.76 | ||
|
Unavailable |
|||
|
#3
FLOAT
310-14185-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#4
NEEDLE
239-14116-22-00
|
$12.16 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#290)
137-14143-58-A1
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#300)
137-14143-60-A0
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#310)
137-14143-62-A1
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NOZZLE, MAIN P-8
239-14141-48-00
|
$16.49 | ||
|
Unavailable |
|||
|
#7
PLATE
483-14146-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#8
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTOR
509-14274-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#10
SEAT, SPRING
509-14136-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#11
NUT, CABLE ADJUSTING
802-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
THROTTLE SCREW SET
24X-14103-00-00
Superseded by 40T-14103-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE
2J2-14196-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
AIR SCREW SET
23X-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, AIR ADJUSTING
127-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER
737-14261-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
COVER, PLUNGER CAP
637-14173-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#21
CAP, PLUNGER
152-14174-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, PLUNGER
353-14138-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, PLUNGER
132-14135-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUNGER, STARTER
737-14171-01-00
|
$17.82 | ||
|
Unavailable |
|||
|
#25
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE
313-14146-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#27
SPRING, THROTTLE VALVE
363-14131-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#28
VALVE, THROTTLE 1
3R3-14112-30-00
|
$81.92 | ||
|
Unavailable |
|||
|
#29
GASKET, FLOAT CHAMBER
483-14184-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET, PILOT (#60)
193-14142-60-00
|
$5.00 | ||
|
Unavailable |
|||
|
#31
O-RING
2K6-14147-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG, SCREW
2K6-14115-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#33
WASHER, MAIN JET
3R3-14153-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#34
ARM, FLOAT
310-14187-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#35
NEEDLE VALVE SET (#3.3)
24X-14107-33-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, NEEDLE VALVE
239-14195-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PILOT JET, AIR (2.0)
239-14172-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
TOP, MIXING CHAMBER
3R3-14158-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#42
CLIP
363-14137-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CBLE AJST SCRW SETSCREW SET
24X-14106-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#44
O-RING
8F2-14147-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
