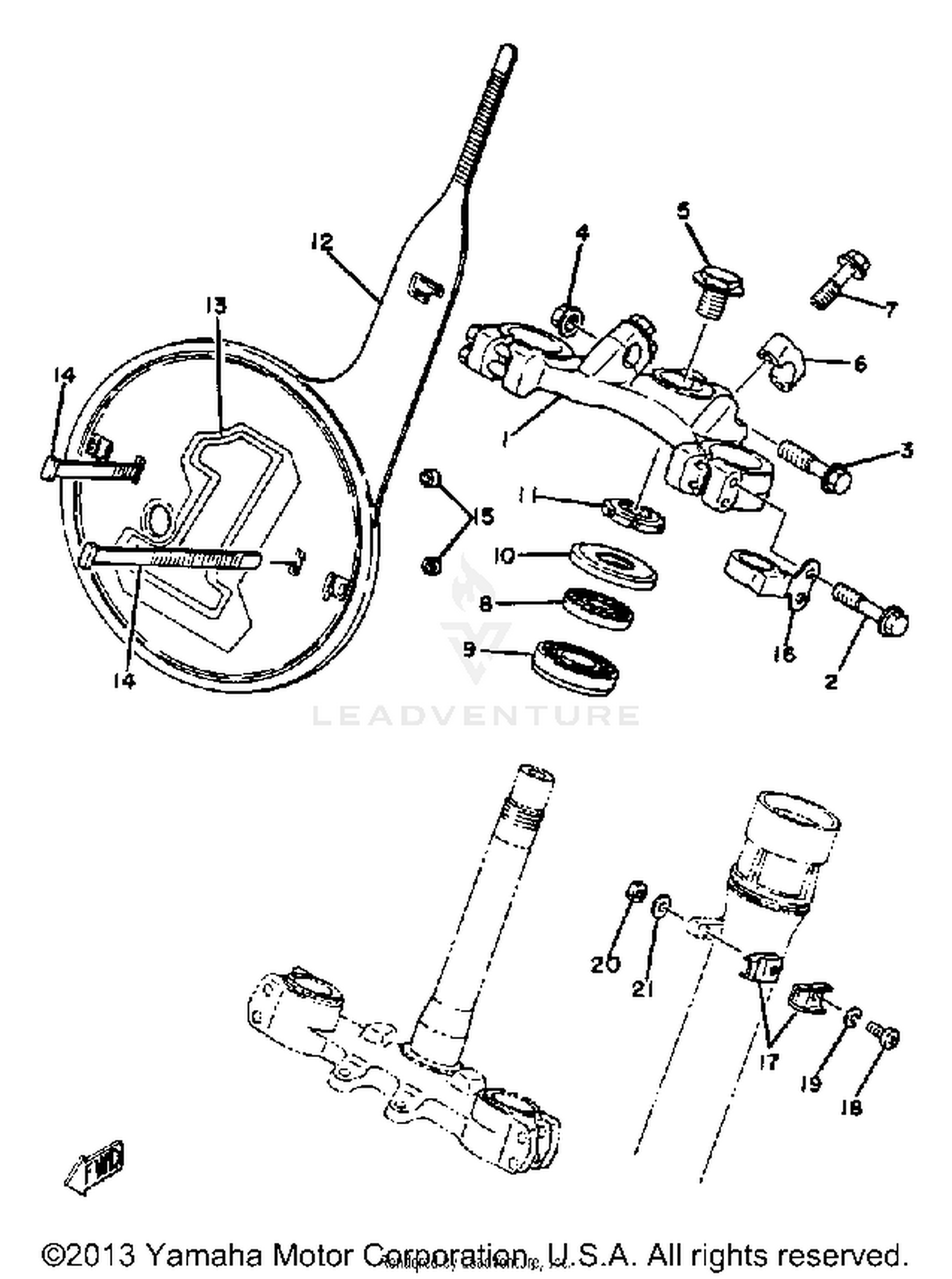

Steering Yz125g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CROWN, HANDLE
5X3-23435-01-98
|
$129.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
90105-08091-00
Superseded by 95814-08040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-14136-00
Superseded by 90105-14220-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, HANDLE UPPER
1E6-23441-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93332-00001-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93332-00008-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, BALL RACE 2
3HE-23416-00-00
Superseded by 1W1-23416-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, NUMBER
3R4-23485-00-00
|
$37.67 | ||
|
Unavailable |
|||
|
#13
EMBLEM 2
3R2-21782-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
BAND
2X4-23489-00-00
|
$3.40 | ||
|
Unavailable |
|||
|
#15
HOSE
90446-09158-00
|
$0.75 | ||
|
Unavailable |
|||
|
#16
HOLDER, CABLE
3R4-23317-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90462-14055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
