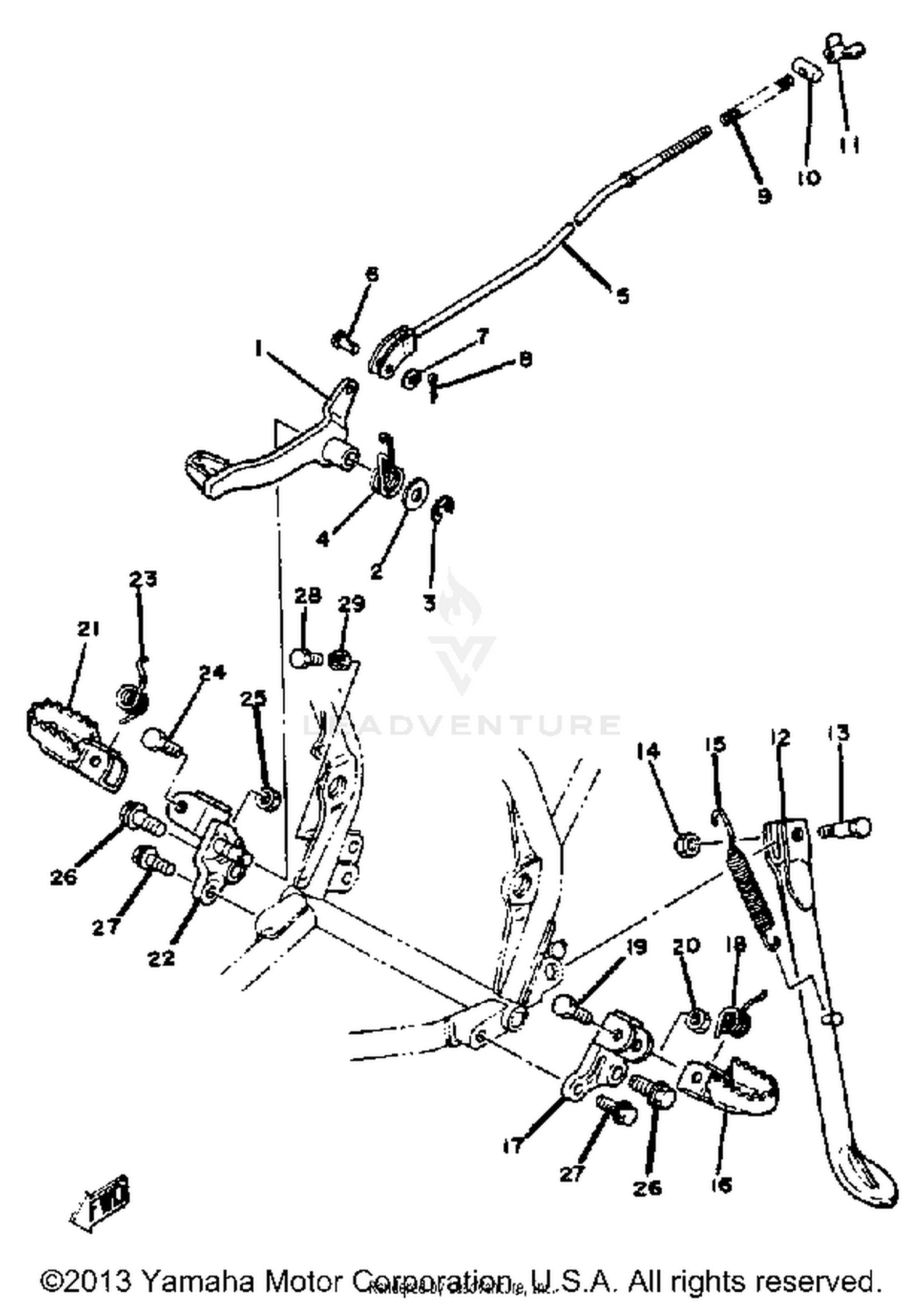

Stand - Footrest Yz125g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5X4-27211-00-90
|
$21.99 | ||
|
Unavailable |
|||
|
#2
WASHER, PLAIN
92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP (E) (99001-09600-00)
99001-09600-00
Superseded by 99080-09600-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-32438-00
|
$4.17 | ||
|
Unavailable |
|||
|
#5
ROD, BRAKE
3R3-27231-00-00
|
$13.48 | ||
|
Unavailable |
|||
|
#6
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAND, SIDE
3R3-27311-00-33
|
$37.30 | ||
|
Unavailable |
|||
|
#13
BOLT
90109-103A1-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TENSION
90507-29008-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
UNAVAILABLE IN PRICE BOOK (3R4-
3R3-27411-00-00
|
|||
|
Unavailable |
|||
|
#17
BRACKET, FOOTREST 1
3R3-27412-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#18
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-08428-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
FOOTREST 2 (3R1-27421-00)
3R4-27421-00-00
Superseded by 22W-27421-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, FOOTREST 2
3R3-27422-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#23
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
BOLT
90101-08428-00
|
$3.35 | ||
|
Unavailable |
|||
|
#25
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
BOLT, WASHER BASED
90105-12096-00
|
$3.15 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
