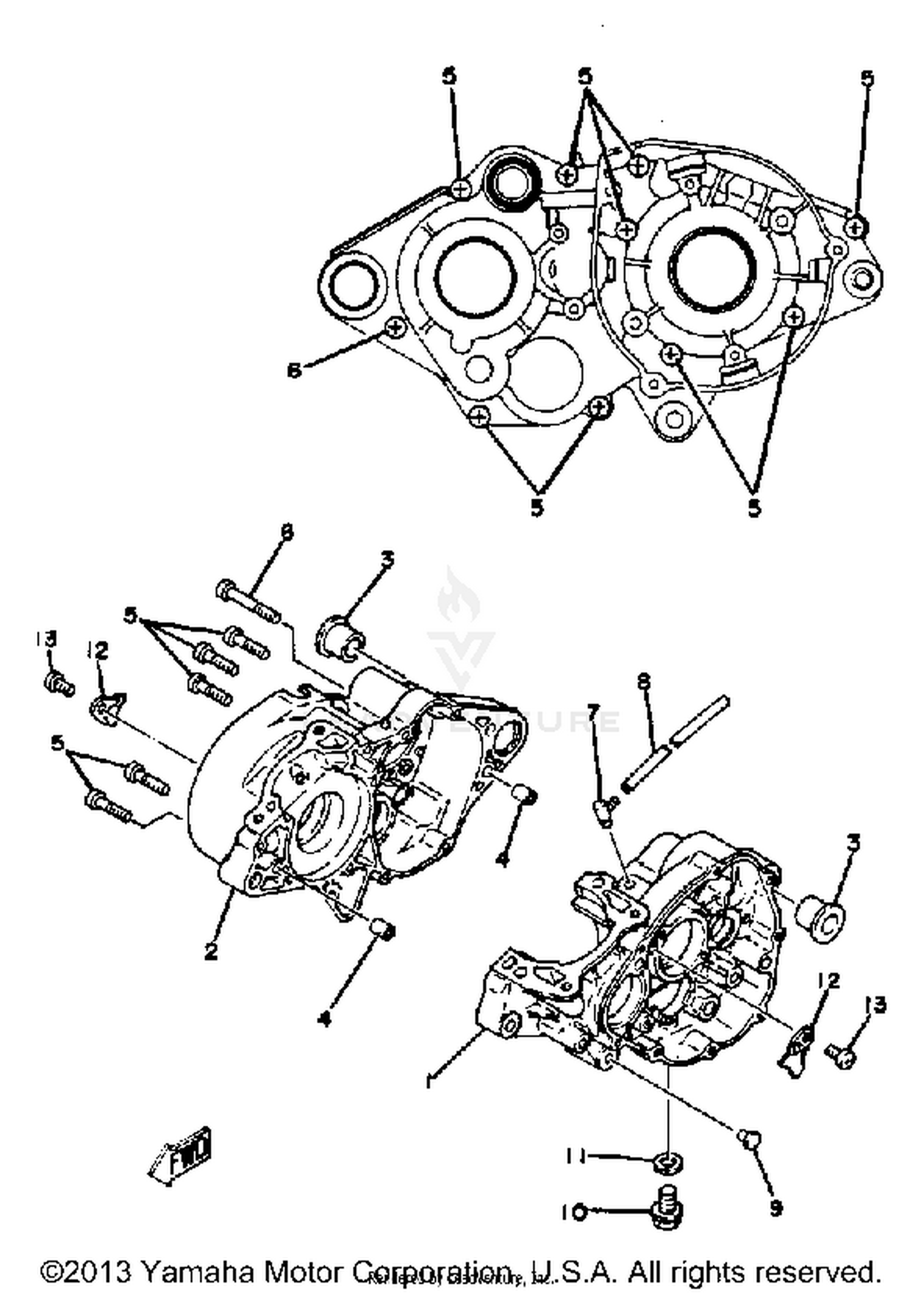

Crankcase Yz125g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
3R3-15111-02-00
|
$116.99 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2 (3R3-15121-01)
3R3-15121-02-00
|
$247.99 | ||
|
Unavailable |
|||
|
#3
COLLAR
90387-16781-00
|
$14.49 | ||
|
Unavailable |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98516-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98506-06050-00
Superseded by 98507-06050-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
BREATHER
2N4-15371-00-00
Superseded by 5UG-15371-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE (L310)
90445-07340-00
Superseded by 90445-072G8-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
90338-07011-00
Superseded by 90338-07124-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, STRAIGHT SCREW
90340-12097-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER
3R3-15128-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
92501-08010-00
Superseded by 98507-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
