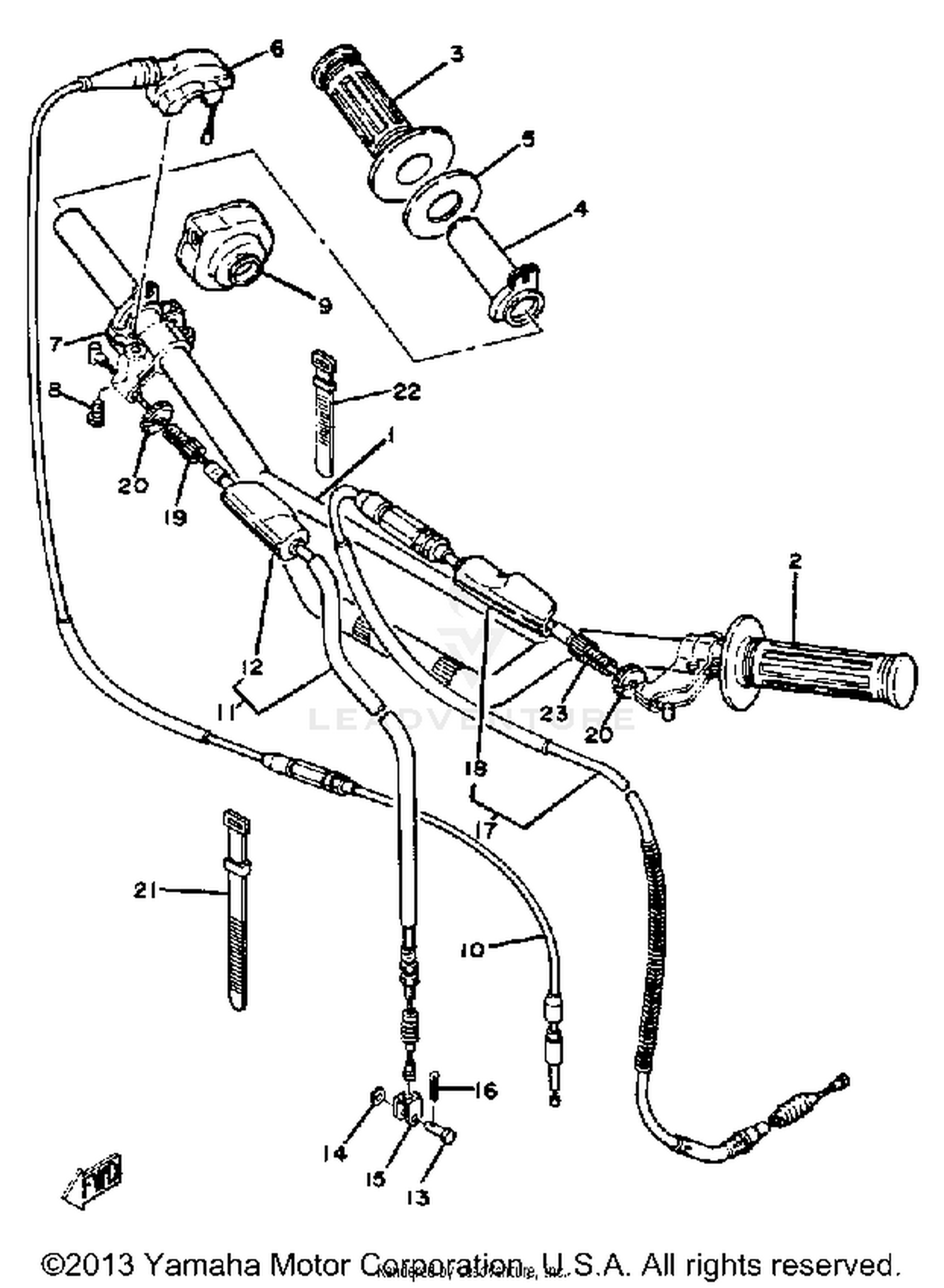

Handlebar - Cable Yz125g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
2X4-26111-01-00
Superseded by 2A8-26111-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP LH (L.H.)
1E6-26241-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP RH (R.H.)
583-26242-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, THROTTLE GUIDE
322-26243-00-00
Superseded by 22W-26243-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, LEAF
1W1-26249-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
CAP, GRIP UPPER
322-26281-00-98
|
$28.99 | ||
|
Unavailable |
|||
|
#7
CAP, GRIP UNDER
322-26282-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, CAP GRIP
3R8-26287-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#10
CABLE, THROTTLE 1
3R3-26311-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#11
CABLE, BRAKE (1230MM)
1W4-26341-02-00
|
$49.99 | ||
|
Unavailable |
|||
|
#12
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT, CABLE
156-26347-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE, CLUTCH
3R3-26335-02-00
|
$36.99 | ||
|
Unavailable |
|||
|
#18
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#19
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Unavailable |
|||
