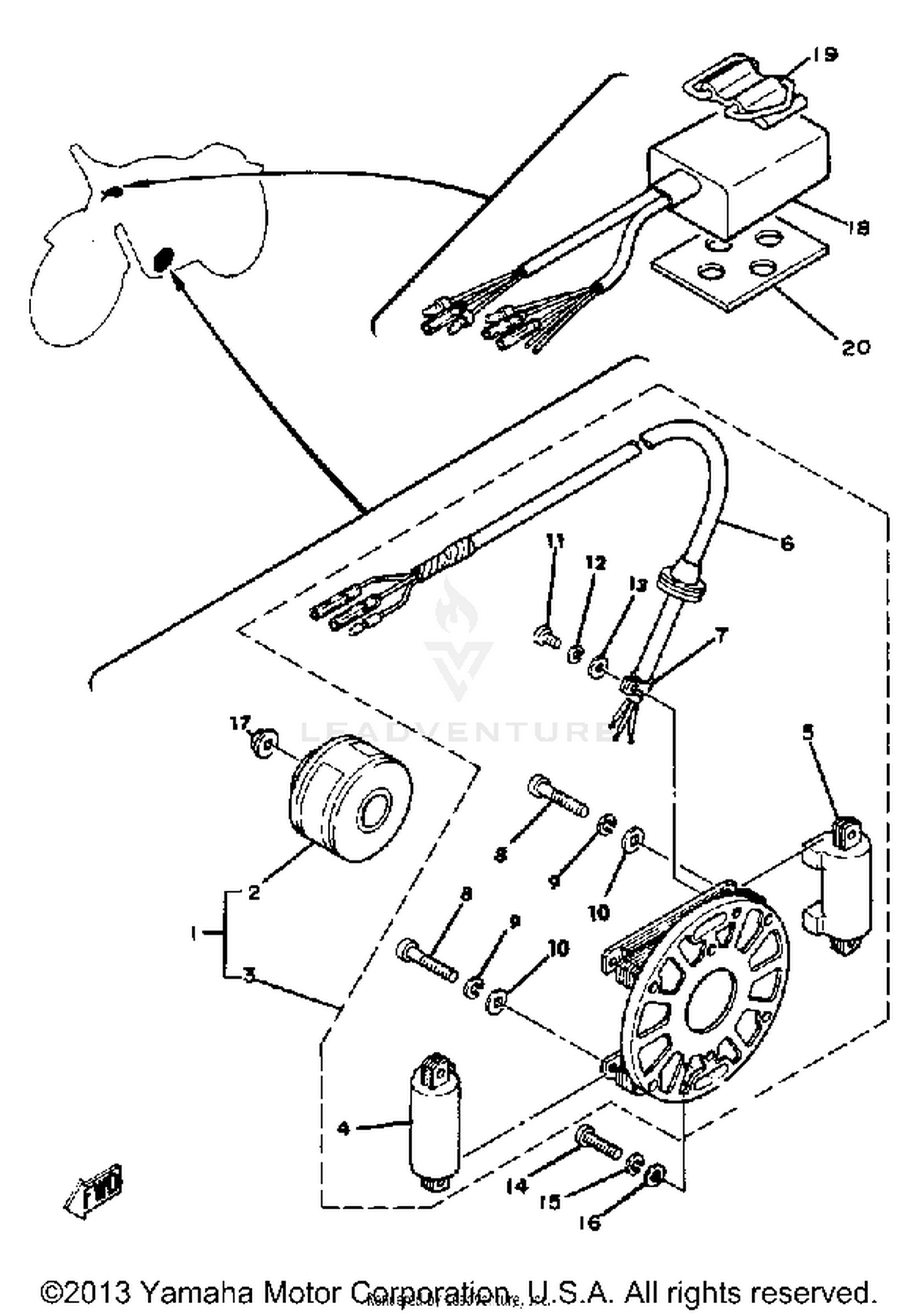

Generator Yz125g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI MAGNETO ASSEMBLY
3R3-85500-11-00
|
$373.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
3R3-85550-10-00
|
$191.99 | ||
|
Unavailable |
|||
|
#3
STATOR ASSEMBLY
3R3-85510-11-00
|
$155.99 | ||
|
Unavailable |
|||
|
#4
COIL, CHARGE
2X6-85566-10-00
Superseded by 3R4-85520-11-00
|
$360.99 | ||
|
Unavailable |
|||
|
#5
COIL, CHARGE 2
3R3-85567-10-00
|
$239.99 | ||
|
Unavailable |
|||
|
#6
LEAD WIRE ASSEMBLY
2X6-85515-10-00
|
$56.99 | ||
|
Unavailable |
|||
|
#7
CLAMP
109-81328-11-00
|
$9.49 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98501-05030-00
Superseded by 98517-05030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPECL SHAPE
90179-10257-00
|
$9.49 | ||
|
Unavailable |
|||
|
#18
CDI UNIT ASSEMBLY
3R3-85540-10-00
|
$217.99 | ||
|
Unavailable |
|||
|
#19
BAND, BATTERY
122-82131-00-00
Superseded by 26L-82131-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER
1M2-85547-00-00
|
$4.10 | ||
|
Unavailable |
|||
