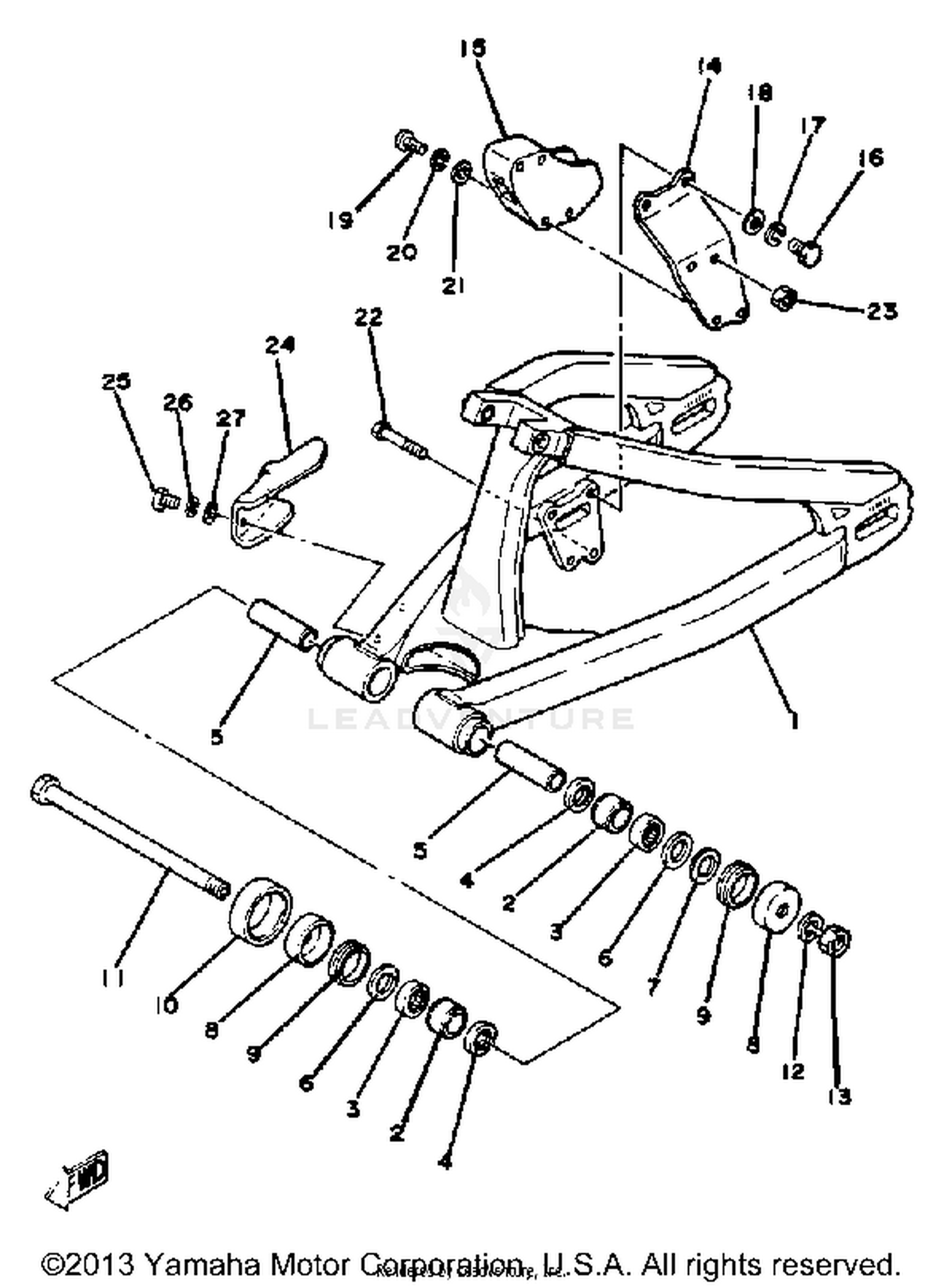

Swing Arm Yz125g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
3R3-22110-00-35
|
$445.99 | ||
|
Unavailable |
|||
|
#2
BUSH, SPEC''L NYLON
90386-22097-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CYLINDER.#17
93317-22214-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL, SDO-TYPE
93109-22018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, SOLID
90380-16077-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-22680-00
|
$4.40 | ||
|
Unavailable |
|||
|
#7
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, THRUST 1
2K6-22128-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL (35-41-8)
93108-35004-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, GUARD
431-22151-03-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT, PIVOT
1W4-22141-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#12
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#14
ARM, TENSIONER
3R3-22179-00-00
|
$25.49 | ||
|
Unavailable |
|||
|
#15
SUPPORT, CHAIN
3R3-22199-00-00
|
$17.82 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON W/W
97313-06055-00
Superseded by 97E95-06555-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PORTECTOR, CHAIN
3R3-22147-00-00
|
$11.54 | ||
|
Unavailable |
|||
|
#25
BOLT, HEXAGON
97313-05010-00
Superseded by 97013-05010-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
