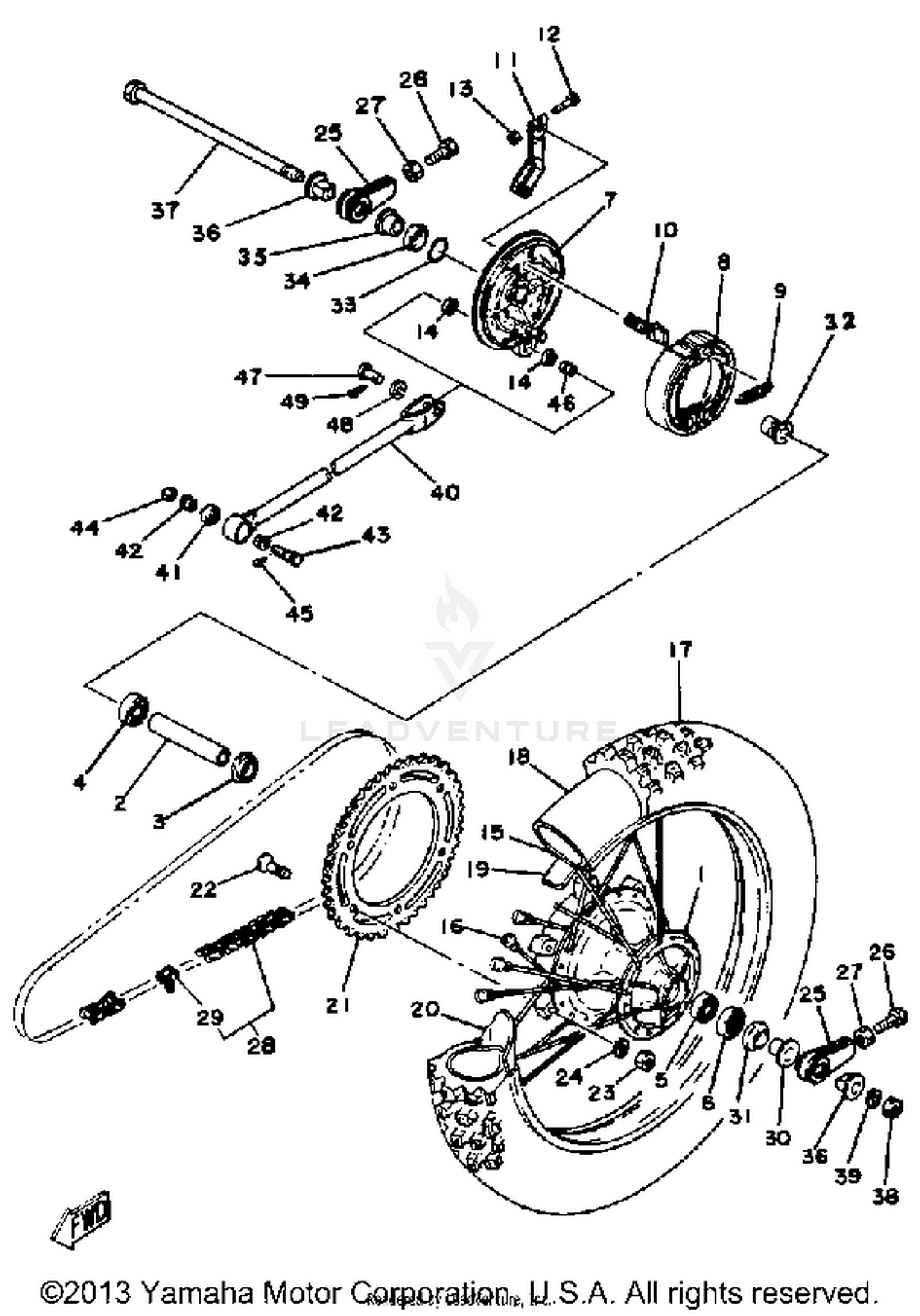

Rear Wheel Yz125g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
3R3-25311-02-98
|
$228.99 | ||
|
Unavailable |
|||
|
#
SPOKE SET, REAR
4V2-25304-00-00
|
$157.99 | ||
|
Unavailable |
|||
|
#
HUB REAR (3R3-25311-00-98)
99999-01159-00
|
$225.99 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
3R3-25317-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL, DD-TYPE
93106-22017-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
PLATE, BRAKE SHOE
3R3-25321-00-98
|
$127.99 | ||
|
Unavailable |
|||
|
#8
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#9
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT
401-25351-00-00
Superseded by 26A-25351-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#11
LEVER, CAMSHAFT (2X3-25355-00)
2X3-25355-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#12
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93104-11056-00
Superseded by 93104-12003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM 1.85X18
94418-18245-00
|
$274.99 | ||
|
Unavailable |
|||
|
#16
SPOKE SET, REAR
537-25304-01-00
|
$131.99 | ||
|
Unavailable |
|||
|
#17
410-18 4PR M22
94141-18649-00
|
$55.99 | ||
|
Unavailable |
|||
|
#18
TUBE (4.10-18)
94241-18153-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, RIM (2.50-18)
94345-18081-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER, BEAD
2X3-25394-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#21
SPROCKET, DRIVEN 46T
3R4-25446-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 48T
3R4-25448-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 50T
3R4-25450-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX SKT HEAD
90109-08552-00
Superseded by 90110-08038-00
|
$4.05 | ||
|
Unavailable |
|||
|
#23
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
PULLER, CHAIN 1
2K6-25388-00-00
|
$14.80 | ||
|
Unavailable |
|||
|
#26
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
CHAIN 520DS-103L (DID520DS-102L
9Y585-20101-00
|
$122.67 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT,CHAIN (DID 520DM-RJ)
94685-20001-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-15791-00
|
$7.99 | ||
|
Unavailable |
|||
|
#31
COVER, HUB DUST
3R3-25367-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#32
COLLAR
90387-15792-00
|
$8.17 | ||
|
Unavailable |
|||
|
#33
O-RING
93210-27ME3-00
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, PLATE
2X3-25327-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#35
COLLAR
90387-15790-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
BUSH, SOLID
90381-15029-00
|
$7.99 | ||
|
Unavailable |
|||
|
#37
AXLE, WHEEL
3R3-25381-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#38
NUT
90170-14349-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER (6TC)
92901-14100-00
Superseded by 92907-14100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BAR, TENSION
3R3-25371-00-00
|
$34.93 | ||
|
Unavailable |
|||
|
#41
BEARING, SPECIAL
93399-99906-00
|
$36.99 | ||
|
Unavailable |
|||
|
#42
COLLAR
90387-080A8-00
|
$4.17 | ||
|
Unavailable |
|||
|
#43
BOLT, WITH HOLE
90102-08034-00
|
$3.35 | ||
|
Unavailable |
|||
|
#44
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
COLLAR
90387-08699-00
|
$5.49 | ||
|
Unavailable |
|||
|
#47
BOLT, WITH HOLE
90102-08034-00
|
$3.35 | ||
|
Unavailable |
|||
|
#48
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
