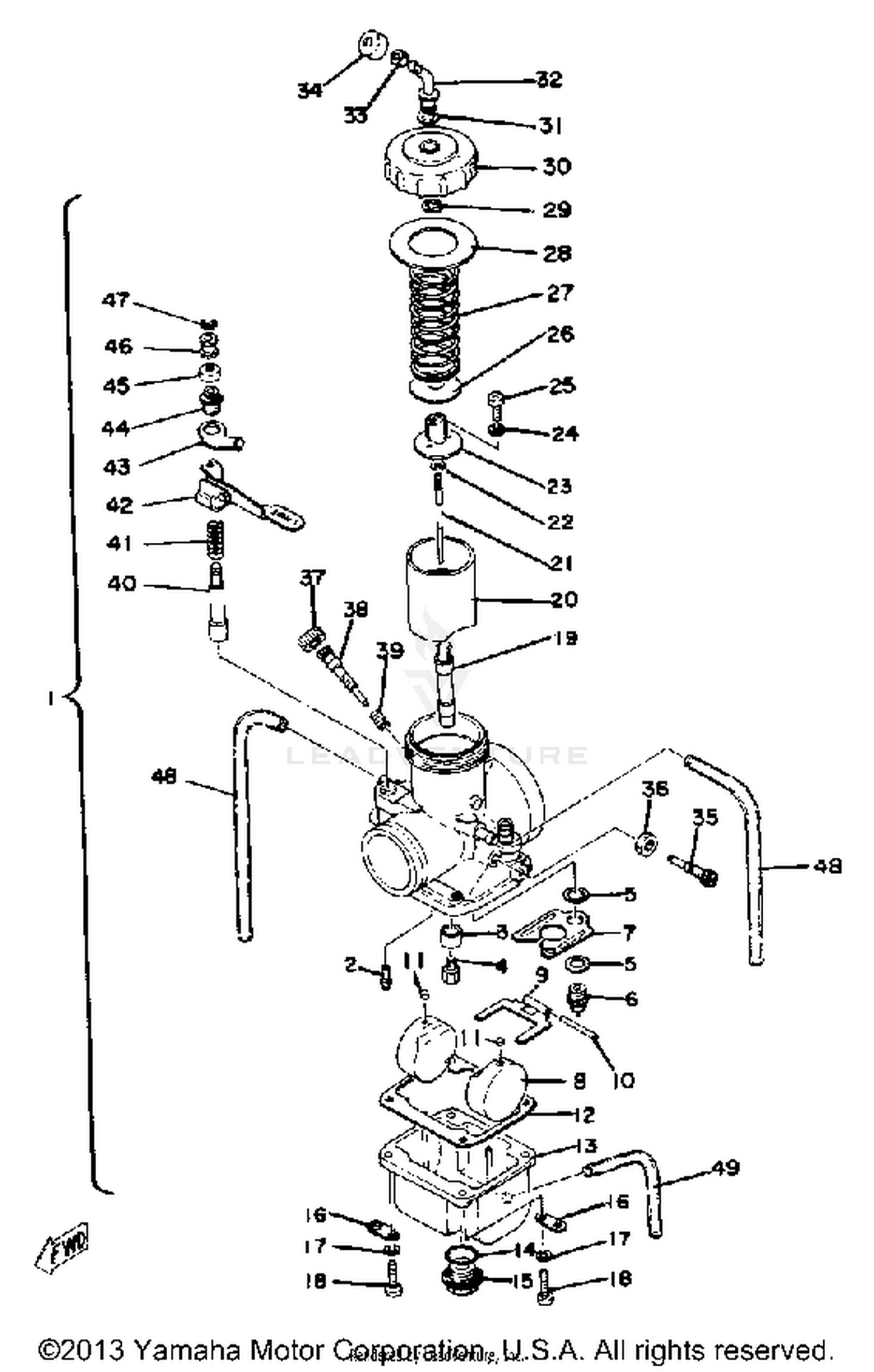

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
2X4-14101-00-00
|
$176.99 | ||
|
Unavailable |
|||
|
#2
JET, PILOT #50
193-14142-50-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, MAIN JET
1W5-14153-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#4
JET, MAIN (#400)
137-14143-80-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#390)
137-14143-78-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#410)
137-14143-82-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, NEEDLE VALVE
239-14195-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEEDLE VALVE SET
23X-14107-35-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE
510-14146-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#8
FLOAT
214-14185-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#9
ARM, FLOAT
363-14187-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP
214-14118-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, FLOAT CHAMBER
363-14184-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BODY, FLOAT CHMBR 1
510-14181-16-00
|
$48.99 | ||
|
Unavailable |
|||
|
#14
O-RING
558-14147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, SCREW
500-14115-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE
313-14146-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
NOZZLE, MAIN (Q-0)
510-14141-50-00
|
$37.67 | ||
|
Unavailable |
|||
|
#20
VALVE, THROTTLE 1
510-14112-30-00
|
$108.99 | ||
|
Unavailable |
|||
|
#21
NEEDLE
239-14116-16-00
|
$11.18 | ||
|
Unavailable |
|||
|
#22
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CONNECTOR
509-14274-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAT, SPRING
509-14136-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#27
SPRING, THROTTLE VALVE
363-14131-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#28
GASKET
363-14126-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#29
CLIP
363-14137-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
TOP, MIXING CHAMBER
1W3-14158-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#31
GASKET
509-14198-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CABLE ADJUST SCREW SET
23X-14106-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP
1M1-14169-00-00
Superseded by 3X3-14169-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
THROTTLE SCREW SET
23X-14103-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, CABLE ADJUSTING
802-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CAP
1W1-14968-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#38
AIR SCREW SET (1W3-14123-00)
26A-14104-00-00
|
$4.70 | ||
|
Unavailable |
|||
|
#39
SPRING, THROTTLE STOP
137-14133-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLUNGER, STARTER
1W1-14171-00-00
|
$11.96 | ||
|
Unavailable |
|||
|
#41
SPRING, PLUNGER
256-14135-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#42
COVER, PLUNGER CAP (1W3-14173
1W3-14175-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#43
PLATE, STARTER LVR
1W3-14178-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#44
CAP, PLUNGER
802-14174-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#45
COVER, PLUNGER CAP
802-14173-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#46
BUSH
737-14241-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#47
CLIP
737-14137-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
HOSE
3Y3-14196-00-00
Superseded by 88R-14987-00-00
|
$8.99 | ||
|
Unavailable |
|||
