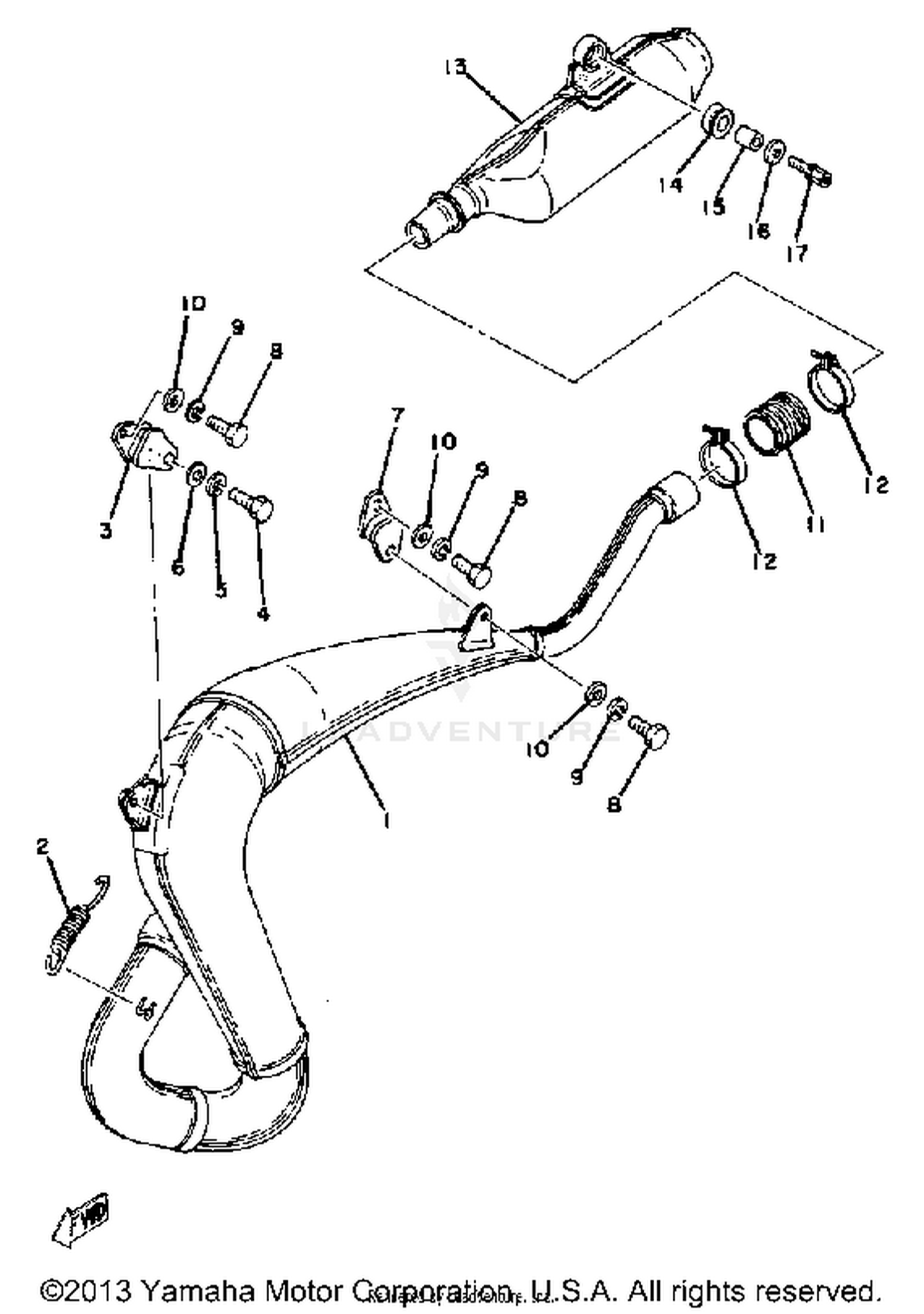

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
2X4-14610-03-00
|
$325.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90507-20030-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, MUFFLER 2
483-14781-02-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, MUFFLER 1
565-14771-00-00
Superseded by 565-14771-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#8
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, MUFFLER
1M1-14714-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SILENCER, EXHAUST
2X4-14753-00-00
|
$64.35 | ||
|
Unavailable |
|||
|
#14
DAMPER, MUFFLER
565-14747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-08512-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
