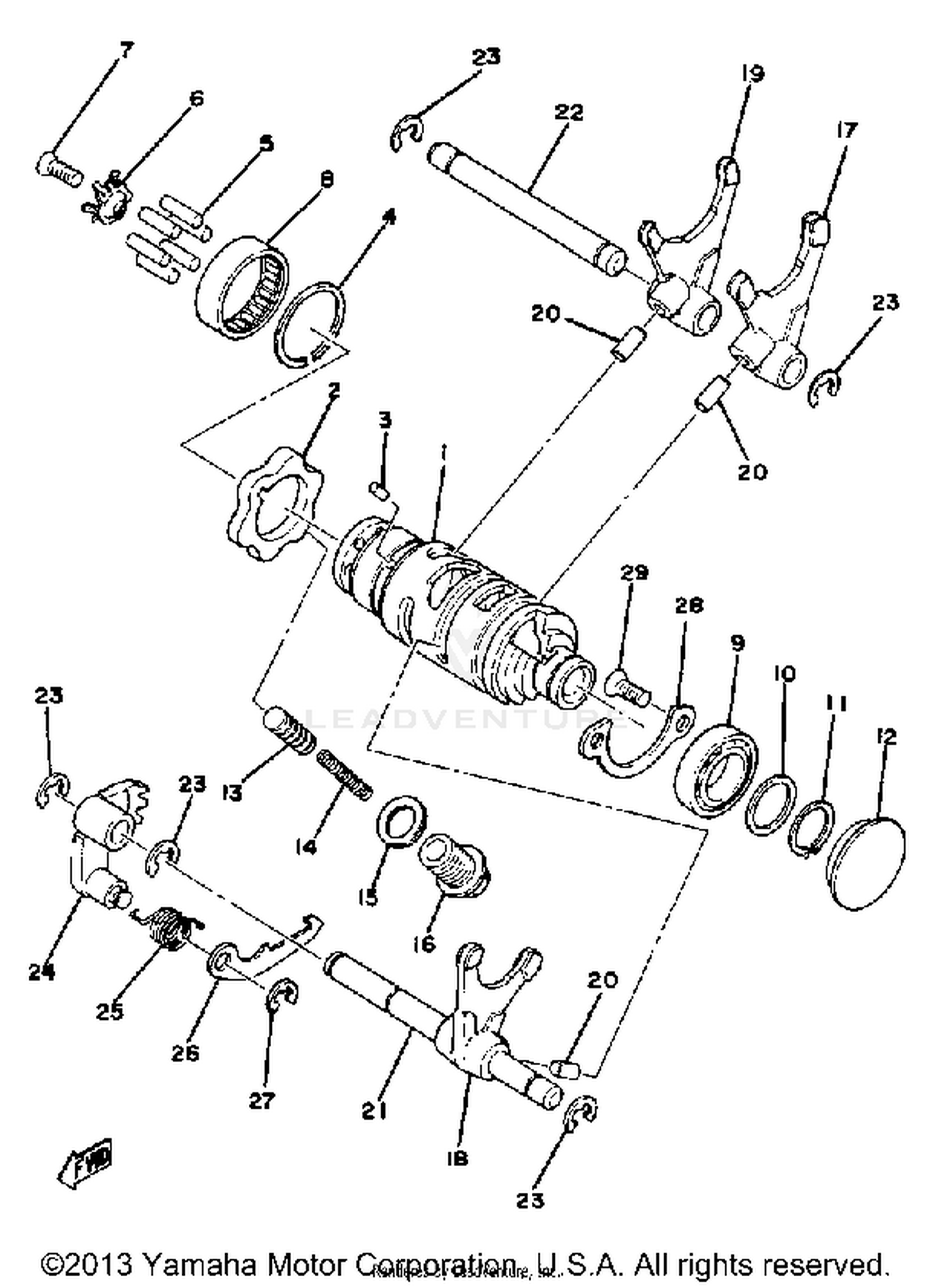

Shifter 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSEMBLY (2K7-18541-0
2K7-18540-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#2
PLATE, STOPPER
2K7-18141-00-00
|
$18.90 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
93604-08071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP, OUTER (32V SPECIAL)
93440-32017-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
PIN, DOWEL
93604-18100-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, SIDE 1
2K9-18561-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, COUNTERSUNK
98701-05012-00
Superseded by 98707-05012-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93315-23208-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-90403-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-20613-00
|
$3.90 | ||
|
Unavailable |
|||
|
#11
CIRCLIP
99009-19400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NO LONGER AVAILABLE
90338-32086-00
|
$2.72 | ||
|
Unavailable |
|||
|
#13
STOPPER, CAM
353-18547-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#14
SPRING, COMPRESSION
90501-10062-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-14485-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FORK, SHIFT 1
2K7-18511-00-00
|
$27.76 | ||
|
Unavailable |
|||
|
#18
FORK, SHIFT 2
2K7-18512-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#19
FORK, SHIFT 3
2K7-18513-00-00
|
$21.34 | ||
|
Unavailable |
|||
|
#20
PIN, DOWEL
93606-14154-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAR, SHIF FRK GDE 1
2K7-18531-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#22
BAR, SHIF FRK GDE 2
2K7-18535-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#23
CIRCLIP
99001-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
LEVER, SHIFT 2 (2K7-18122-00)
2K7-18122-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#25
SPRING, TORSION
90508-10386-00
|
$1.98 | ||
|
Unavailable |
|||
|
#26
LEVER, SHIFT 3
2K7-18151-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
99080-07600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE, BRNG COVER
2K7-15381-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#29
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
