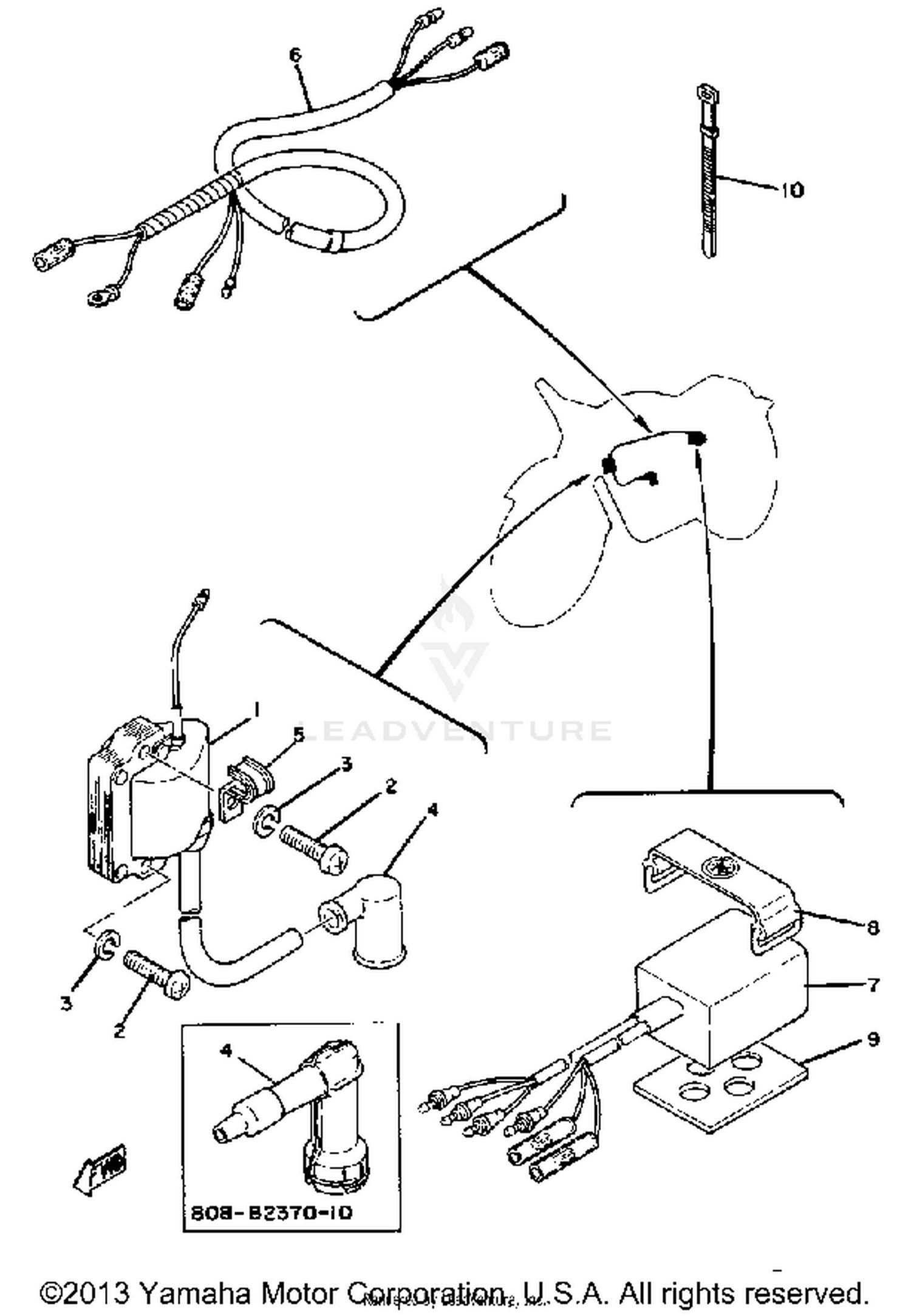

| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSEMBLY
2X6-82310-10-00
|
$121.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG CAP ASSEMBLY
294-82370-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#5
CLAMP
90462-05005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE HARNESS ASSEMBLY
2X4-82590-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#7
CDI UNIT ASSEMBLY
2X4-85540-10-00
|
$191.99 | ||
|
Unavailable |
|||
|
#8
BAND, BATTERY
122-82131-00-00
Superseded by 26L-82131-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
1M2-85547-00-00
|
$4.10 | ||
|
Unavailable |
|||
|
#10
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
