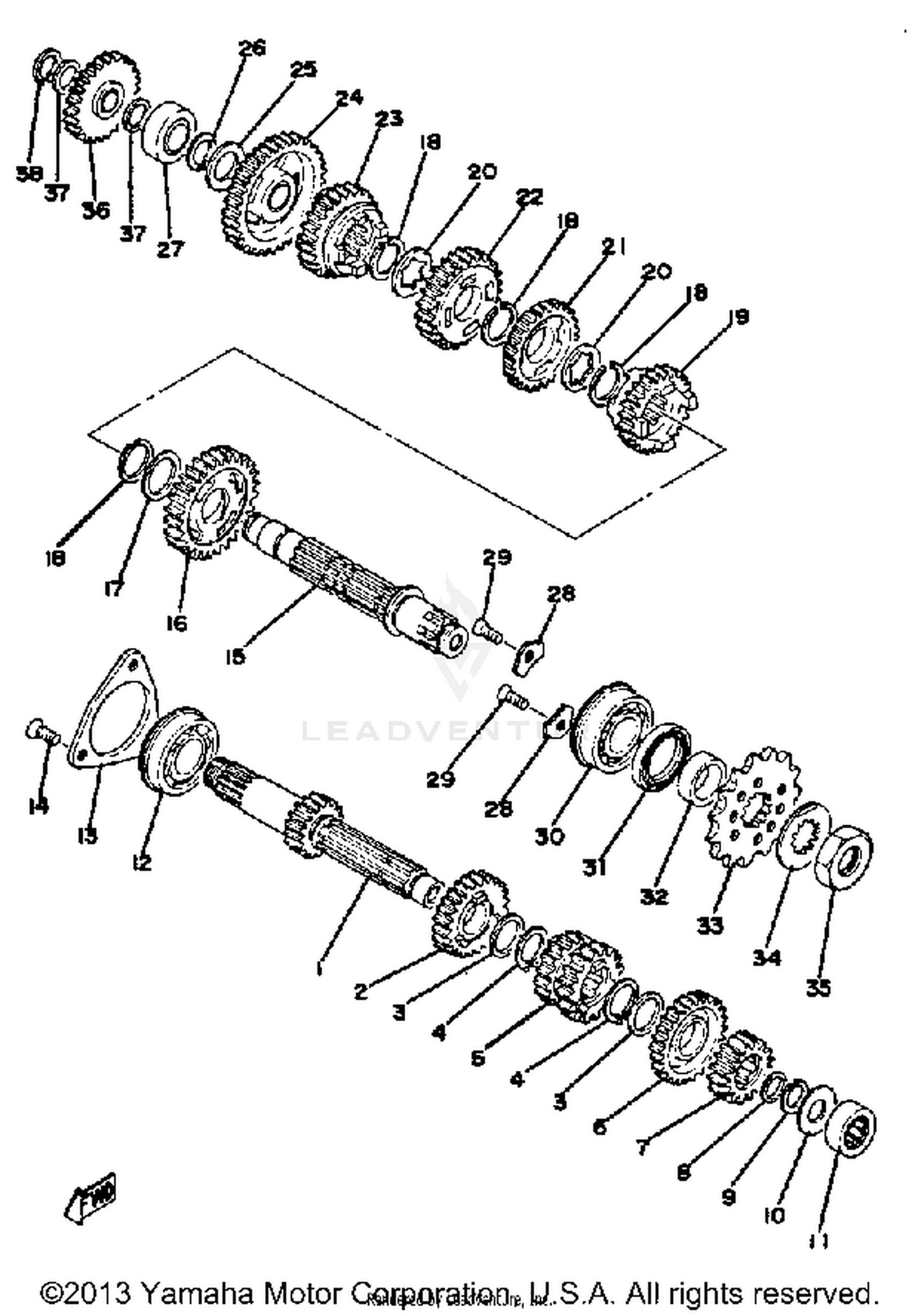

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
2X4-17411-00-00
|
$68.84 | ||
|
Unavailable |
|||
|
#2
GEAR, 5TH PINION
2X4-17151-00-00
|
$54.44 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
2X4-17131-00-00
|
$55.42 | ||
|
Unavailable |
|||
|
#6
GEAR, 6TH PINION
2X7-17161-00-00
|
$57.16 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION (16T)
2K7-17121-00-00
|
$34.82 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-17682-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
93440-17064-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-17257-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CYLINDER 11
93311-41734-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING (93306-20515)
93306-20535-00
|
$20.99 | ||
|
Unavailable |
|||
|
#13
PLATE, BRNG COVER
1W4-15383-00-00
Superseded by 363-15383-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#15
AXLE, DRIVE
2K7-17421-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#16
GEAR, 2ND WHEEL (29T)
2K7-17221-01-00
|
$106.99 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 6TH WHEEL
2X7-17261-00-00
|
$96.42 | ||
|
Unavailable |
|||
|
#20
WASHER (T=0.5)
90209-22082-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 4TH WHEEL
2X4-17241-00-00
|
$71.86 | ||
|
Unavailable |
|||
|
#22
GEAR, 3RD WHEEL (26T)
2K7-17231-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#23
GEAR, 5TH WHEEL
2X4-17251-00-00
|
$59.34 | ||
|
Unavailable |
|||
|
#24
GEAR, 1ST WHEEL (2X4-17211-00)
2X4-17211-01-00
|
$88.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, CYLINDRICAL
93311-62035-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE, BEARING COVER
2K7-15383-00-00
Superseded by 4XM-15383-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#30
BEARING
93304-20501-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93102-32M07-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-25663-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, DRIVE
93834-15078-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
93834-14051-00
|
$15.65 | ||
|
Unavailable |
|||
|
#
SPROCKET,DRIVE 13T
93834-13030-00
Superseded by 93834-13206-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, LOCK
90215-21239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
90179-20255-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
GEAR, KICK IDLE
3R4-15651-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#37
WASHER, PLATE
90201-17545-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP
99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
