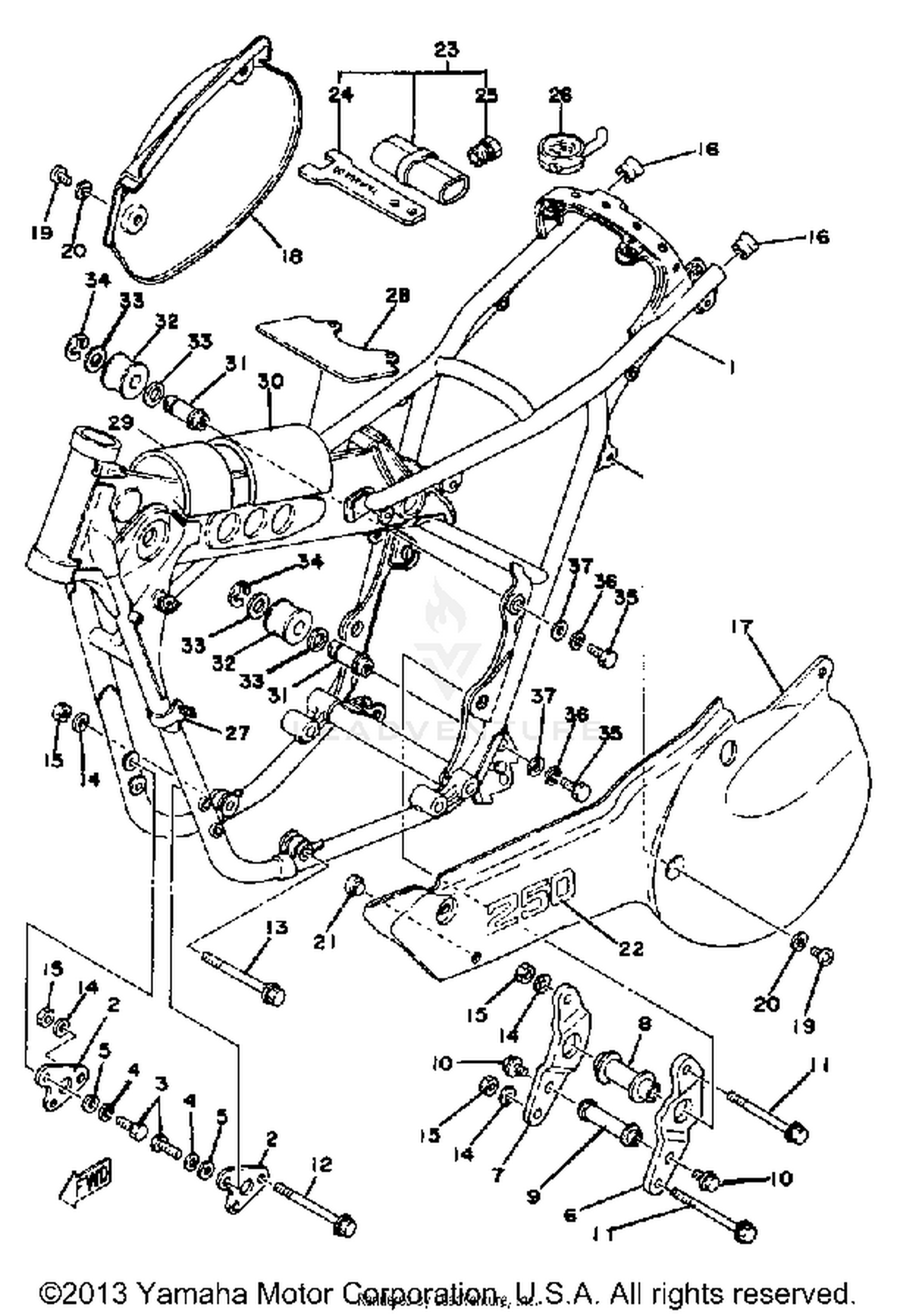

Frame - Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
2X4-21110-01-33
|
$463.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FRT UPR 1 (2K7-21415-0
2X4-21415-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#3
BOLT
97001-08025-00
Superseded by 97017-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, REAR LWR 1
2X4-21427-01-00
|
$62.99 | ||
|
Unavailable |
|||
|
#7
BRACKET, REAR LWR 2
2X4-21428-00-00
|
$52.66 | ||
|
Unavailable |
|||
|
#8
SPACER
2K7-21459-00-00
|
$18.66 | ||
|
Unavailable |
|||
|
#9
BOSS, ENGINE MOUNT
2K7-21424-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#10
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95811-08090-00
Superseded by 95817-08090-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95811-08100-00
Superseded by 95817-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95811-08180-00
Superseded by 95817-08180-00
|
$14.99 | ||
|
Unavailable |
|||
|
#14
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
90339-13005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, SIDE 1
2X4-21711-00-98
|
$59.99 | ||
|
Unavailable |
|||
|
#18
COVER, SIDE 2
2X4-21721-00-98
|
$46.99 | ||
|
Unavailable |
|||
|
#19
SCREW, BIND
98903-06012-00
Superseded by 98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
EMBLEM
2X4-21737-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#23
TOOL KIT
5X5-28100-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#24
SPANNER, SPECIAL
10V-28135-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#25
PULLER, ROTOR
2K7-85555-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GAUGE, AIR
2X4-2811A-01-00
|
$83.99 | ||
|
Unavailable |
|||
|
#27
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, LOCATING 1
1W1-24181-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#29
DAMPER, LOCATING 3
1W1-24183-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#30
DAMPER, LOCATING 3
2X4-24183-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#31
SHAFT
2K6-2148A-02-00
|
$6.44 | ||
|
Unavailable |
|||
|
#32
TENSIONER
2K6-22178-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-13202-00
Superseded by 90201-13013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CIRCLIP
1W1-18136-00-00
Superseded by 99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#37
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Unavailable |
|||
