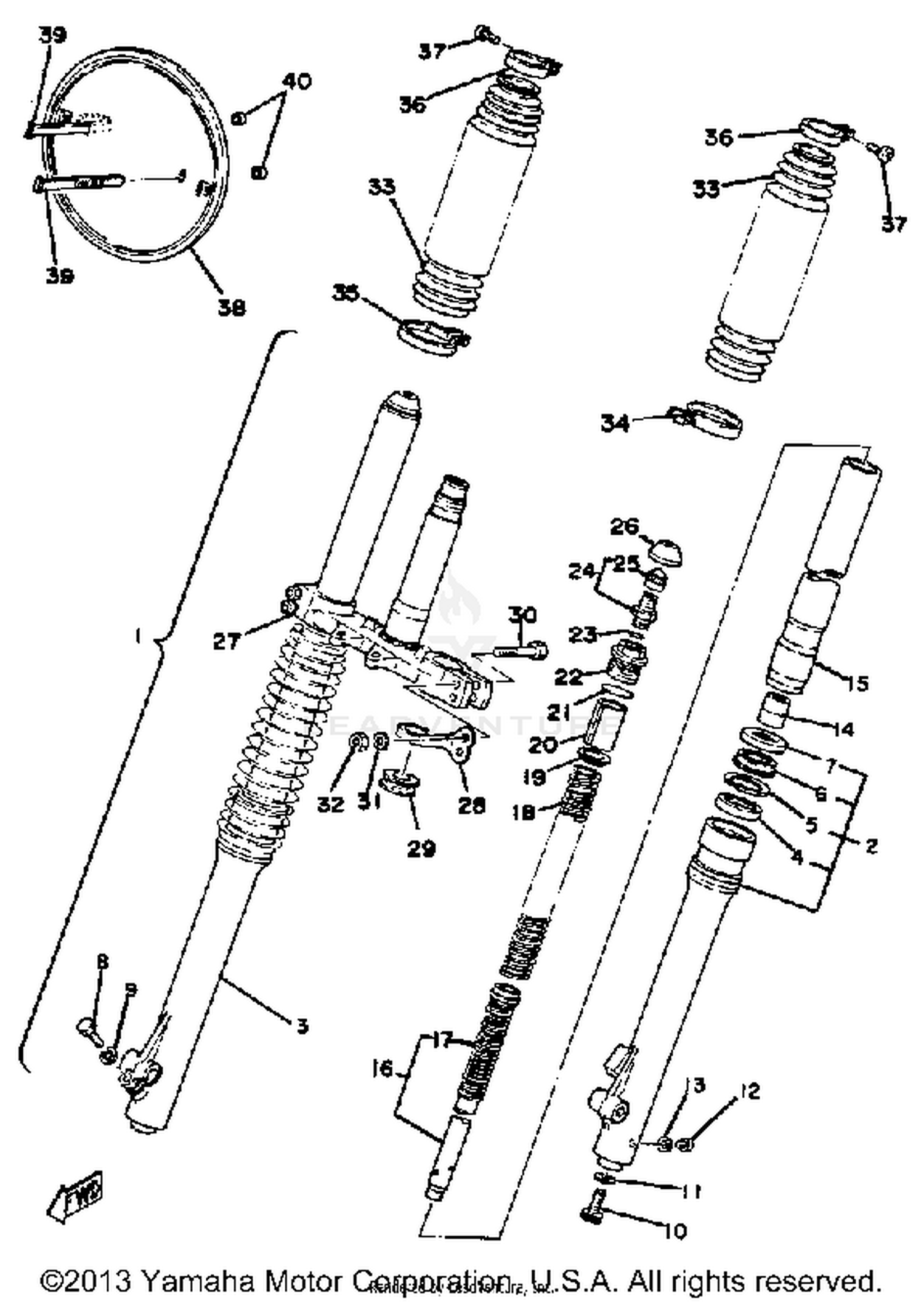

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
2X4-23101-L0-00
|
$445.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
2K8-23126-L0-00
|
$223.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
2K8-23136-L0-00
|
$188.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
3EN-23145-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, OIL SEAL
1W4-23156-L0-00
|
$3.76 | ||
|
Unavailable |
|||
|
#6
SEAL, DUST
1W4-23144-L0-00
|
$9.70 | ||
|
Unavailable |
|||
|
#7
COVER, DUST SEAL
1W4-23148-L0-00
|
$8.06 | ||
|
Unavailable |
|||
|
#8
BOLT, AXLE HOLDER
1W4-23128-L0-00
|
$2.97 | ||
|
Unavailable |
|||
|
#9
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX SCKT HEAD
2K8-23181-L0-00
|
$3.36 | ||
|
Unavailable |
|||
|
#11
GASKET
2K8-23158-L0-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPINDLE, TAPER
3R4-23173-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#15
INNER TUBE 1
2X4-23110-L0-00
|
$265.99 | ||
|
Unavailable |
|||
|
#16
CYLINDER, FRTFRK
2X4-23170-L0-00
|
$42.30 | ||
|
Unavailable |
|||
|
#17
SPRING, SUB
2X4-23152-L0-00
|
$4.15 | ||
|
Unavailable |
|||
|
#18
SPRING, FRONT FORK
2X4-23141-L0-00
|
$28.86 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK
2X4-23141-10-00
|
$29.38 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK
2X4-23141-20-00
|
$29.38 | ||
|
Unavailable |
|||
|
#19
SEAT, SPRING UPPER
1W4-23142-L0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
SPACER
1W4-23118-L0-00
|
$4.56 | ||
|
Unavailable |
|||
|
#21
GASKET
1W4-23114-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, CAP
1W4-23111-L1-00
|
$29.99 | ||
|
Unavailable |
|||
|
#23
O-RING
509-23163-L0-00
|
$3.75 | ||
|
Unavailable |
|||
|
#24
AIR VALVE
509-23190-L0-00
|
$18.99 | ||
|
Unavailable |
|||
|
#25
CAP, AIR VALVE
509-23184-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, VALVE
1W1-23185-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
UNDER BRACKET
2X4-23340-L0-33
|
$121.99 | ||
|
Unavailable |
|||
|
#28
HOLDER, CABLE
1W1-23317-01-00
|
$8.72 | ||
|
Unavailable |
|||
|
#29
GUIDE, CABLE
1W1-23389-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
90101-08340-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOOT, FRONT FORK
2X4-23191-L0-00
|
$91.99 | ||
|
Unavailable |
|||
|
#34
FRONT FORK ASSEMBLY
2K8-23101-L0-00
|
$469.99 | ||
|
Unavailable |
|||
|
#35
BAND
1W4-23489-L0-00
|
$7.52 | ||
|
Unavailable |
|||
|
#36
BAND, BOOT
341-92090-60-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, BOOT BAND
509-23194-L0-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLATE, NUMBER
3R0-23485-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#39
BAND
2X4-23489-00-00
|
$3.40 | ||
|
Unavailable |
|||
|
#40
HOSE
90446-09158-00
|
$0.75 | ||
|
Unavailable |
|||
