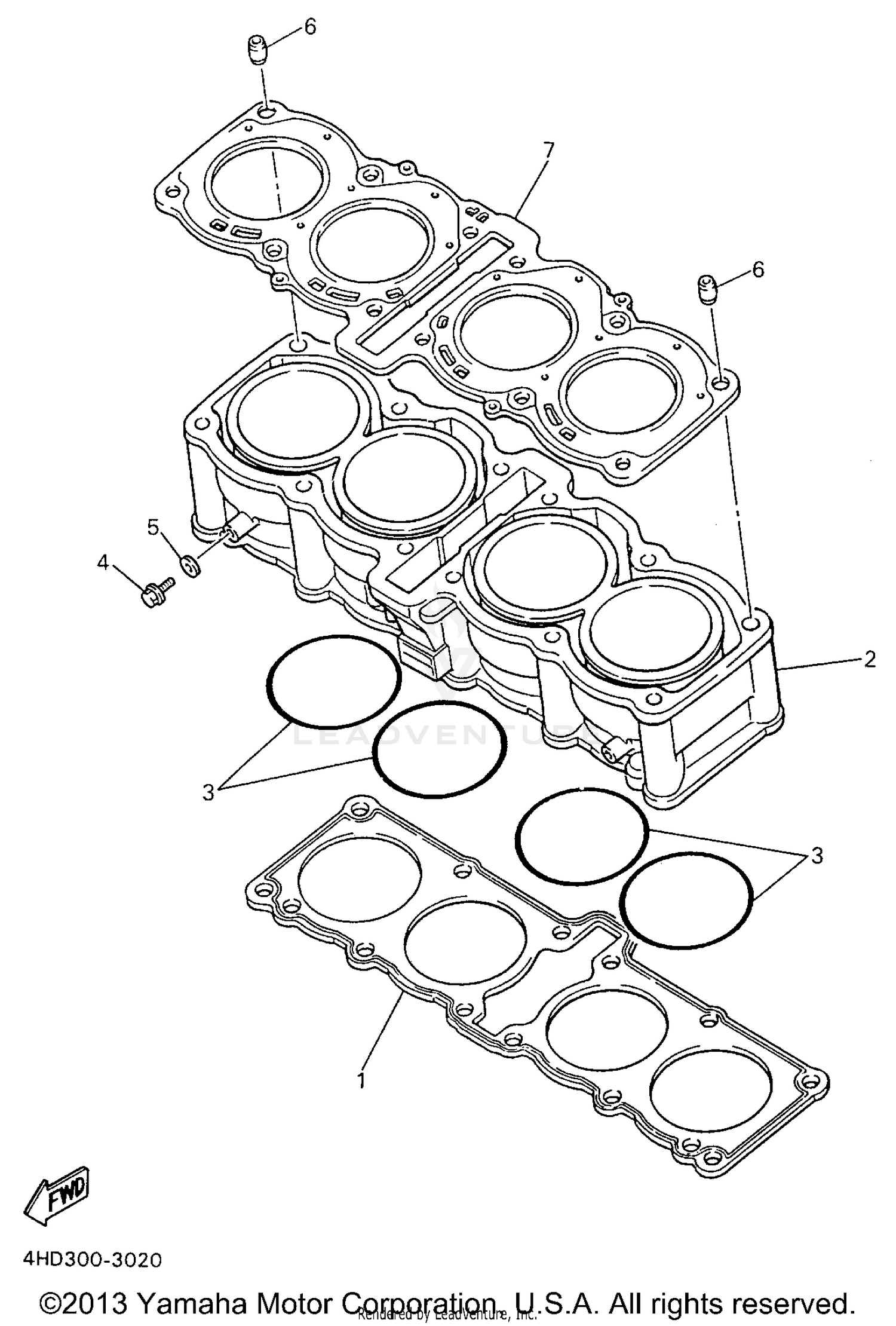

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, CYLINDER
3FV-11351-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER
4FM-11310-00-00
Superseded by 4FM-11310-01-00
|
$665.99 | ||
|
Unavailable |
|||
|
#3
O-RING
93210-76211-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
99510-14016-00
|
$2.50 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD 1
3FV-11181-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
