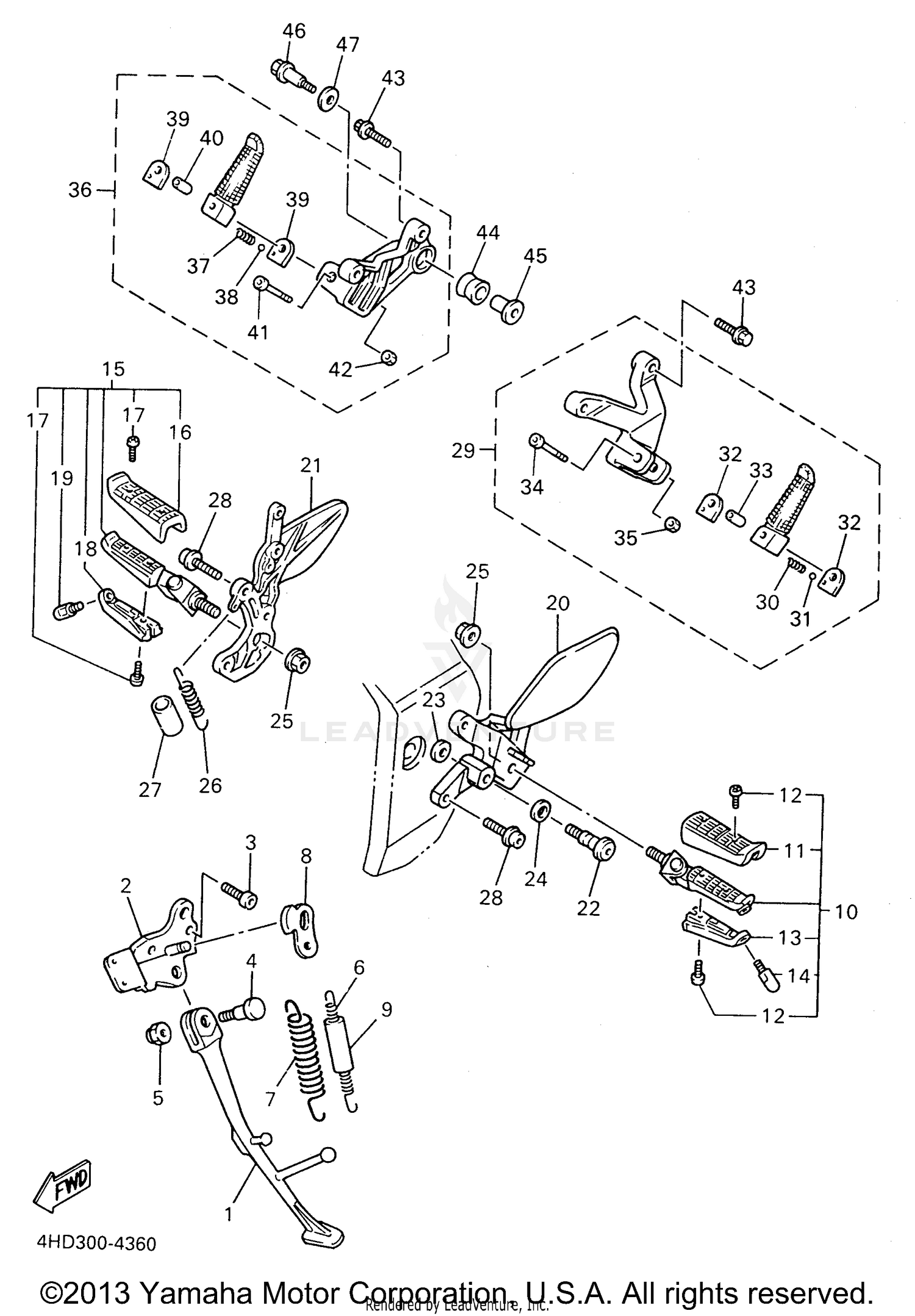

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
4FM-27311-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SIDE STAND
4FM-27321-00-00
|
$139.73 | ||
|
Unavailable |
|||
|
#3
BOLT
90110-08155-00
Superseded by 91317-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90109-104E6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-18224-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TENSION
90506-26225-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LINK, SIDE STAND
4FM-27315-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, SIDE STAND
1TX-27351-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FRONT FOOTREST ASSEMBLY (LEFT)
4FM-27410-00-00
|
$120.99 | ||
|
Unavailable |
|||
|
#11
COVER, FOOTREST
2GH-27413-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAR, FOOTREST 1
4FM-27471-00-00
|
$73.60 | ||
|
Unavailable |
|||
|
#14
BOLT
4FM-27435-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#15
FRONT FOOTREST ASSEMBLY (RIGHT)
4FM-27420-00-00
|
$120.99 | ||
|
Unavailable |
|||
|
#16
COVER, FOOTREST
2GH-27413-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
BAR, FOOTREST 1
4FM-27471-00-00
|
$73.60 | ||
|
Unavailable |
|||
|
#19
BOLT
4FM-27435-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#20
BRACKET 2
4FM-27442-00-00
Superseded by 4FM-27442-02-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET 3
4FM-27443-00-00
Superseded by 4FM-27443-02-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
4BP-27434-01-00
Superseded by 4BP-27434-11-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-127J6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, TENSION
90506-20377-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE
90446-17346-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
90110-08231-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
REAR FOOTREST ASSEMBLY 1
4FM-27430-10-00
Superseded by 4FM-27430-11-00
|
$152.99 | ||
|
Unavailable |
|||
|
#30
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#31
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPECIAL
1HX-27437-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-064H8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, U FLANGE
95607-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
REAR FOOTREST ASSEMBLY 2
4FM-27440-10-00
Superseded by 4FM-27440-11-00
|
$152.99 | ||
|
Unavailable |
|||
|
#37
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Unavailable |
|||
|
#38
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
WASHER, SPECIAL
1HX-27437-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#40
COLLAR
90387-064H8-00
|
$7.49 | ||
|
Unavailable |
|||
|
#41
BOLT
91317-06045-00
|
$4.70 | ||
|
Unavailable |
|||
|
#42
NUT, U FLANGE
95607-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Unavailable |
|||
|
#43
BOLT, FLANGE
95817-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
DAMPER, FOOTREST
2H7-27414-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
COLLAR
90387-10636-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE
90105-10316-00
Superseded by 90105-10778-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER, PLATE
90201-10669-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
