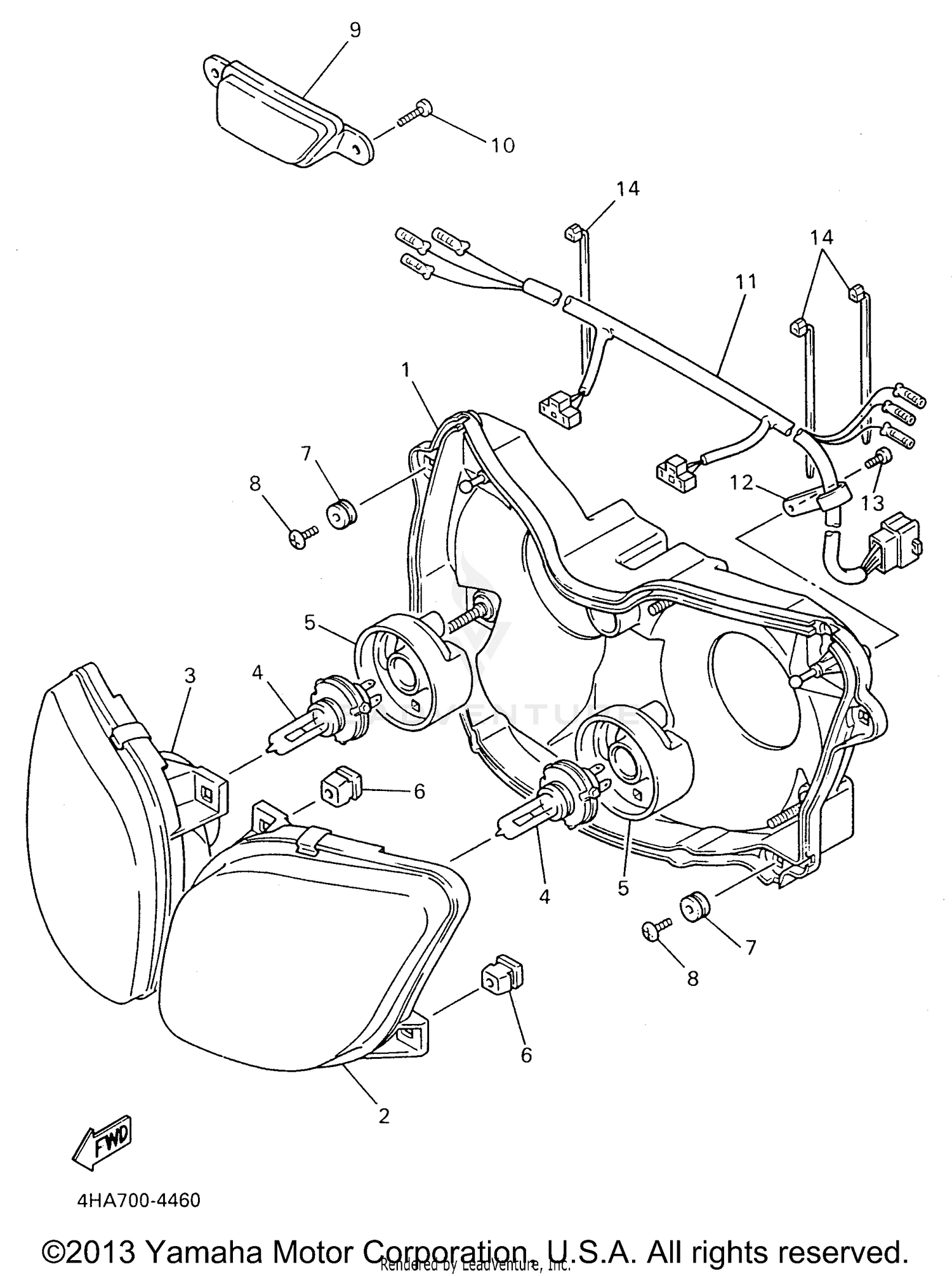

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY
4FM-84330-41-00
|
$130.99 | ||
|
Unavailable |
|||
|
#2
LENS ASSEMBLY
4FM-84320-40-00
|
$188.99 | ||
|
Unavailable |
|||
|
#3
LENS ASSEMBLY
4FM-8432A-40-00
|
$390.65 | ||
|
Unavailable |
|||
|
#4
BULB, HEADLIGHT
1ML-84314-00-XX
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SOCKET
4JG-84397-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, ADJUSTING
51L-84334-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-10584-00
|
$11.99 | ||
|
Unavailable |
|||
|
#8
SCREW, TAPPING
97707-60014-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP
3LK-84378-00-4B
Superseded by 3LK-84378-00-P7
|
$63.99 | ||
|
Unavailable |
|||
|
#10
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
CORD, HEADLIGHT
4HY-84359-10-00
|
$81.99 | ||
|
Unavailable |
|||
|
#12
CLAMP
90462-05061-00
Superseded by 90462-10236-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#14
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
