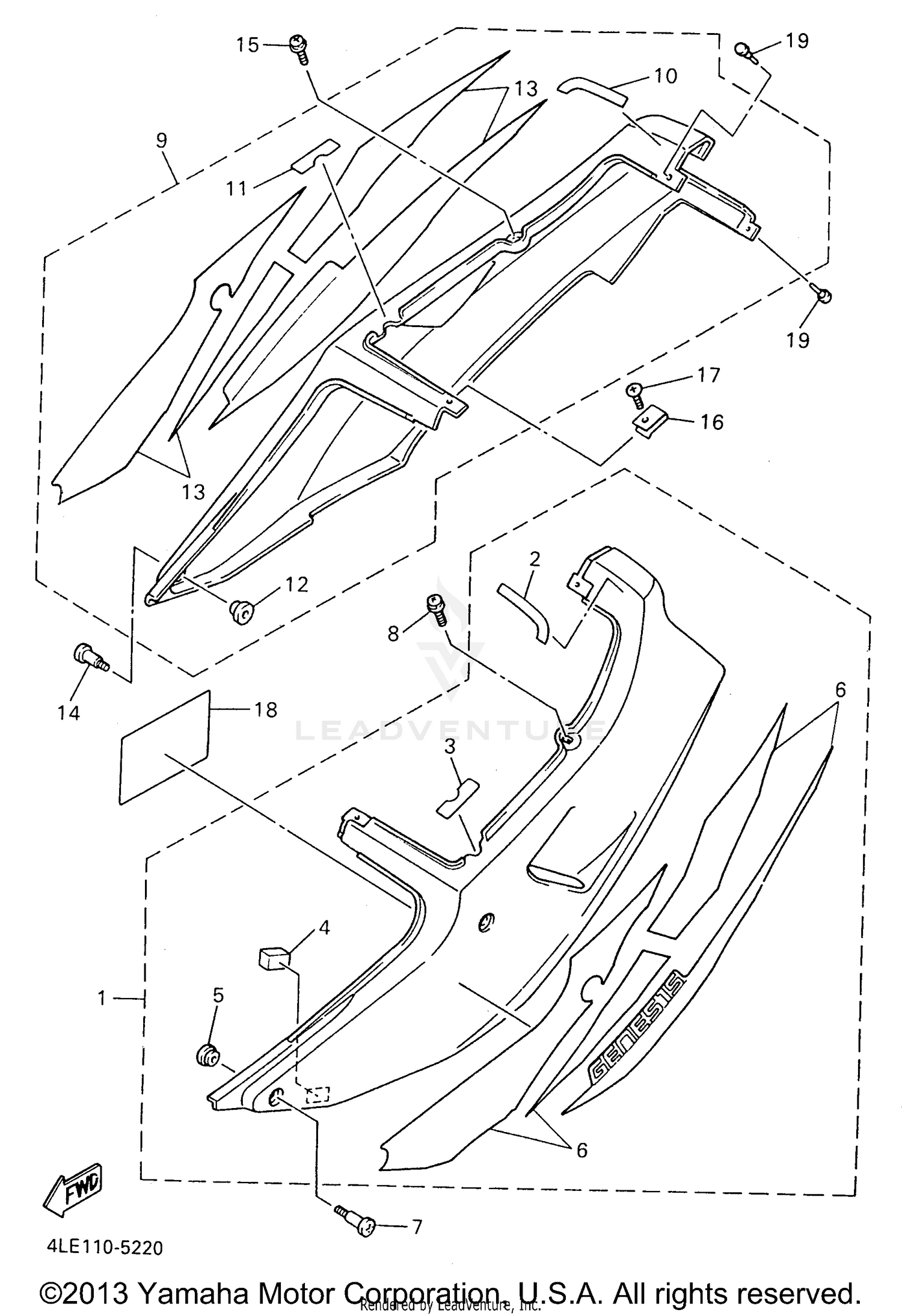

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
4FM-Y2171-F1-P0
|
$392.99 | ||
|
Unavailable |
|||
|
#2
SEAL 1
3GM-21575-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE 1
4FM-2173T-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#4
CAP
1WG-2143A-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRAPHIC SET 1
4FM-2173L-40-00
Superseded by 4FM-2173L-41-00
|
$226.99 | ||
|
Unavailable |
|||
|
#7
SCREW, ROUND HEAD
90150-06036-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, WITH WASHER
90159-06093-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SIDE 2
4FM-Y2172-A1-P0
|
$243.99 | ||
|
Unavailable |
|||
|
#10
SEAL 2
3GM-21576-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
TAPE 1
4FM-2173T-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#12
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
GRAPHIC SET 2
4FM-2174L-40-00
Superseded by 4FM-2174L-41-00
|
$219.99 | ||
|
Unavailable |
|||
|
#14
SCREW, ROUND HEAD
90150-06036-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
SCREW, WITH WASHER
90159-06093-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
NUT, SPRING
90183-04064-00
|
$3.65 | ||
|
Unavailable |
|||
|
#17
SCREW, TAPPING
97707-40010-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE,EPA CAL 2
4LE-2179R-10-00
Superseded by 4LE-2179R-11-00
|
$66.99 | ||
|
Unavailable |
|||
|
#
PLATE, EPA 1
4LE-2179V-10-00
|
$24.99 | ||
|
Unavailable |
|||
|
#19
GROMMET
90480-04166-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
