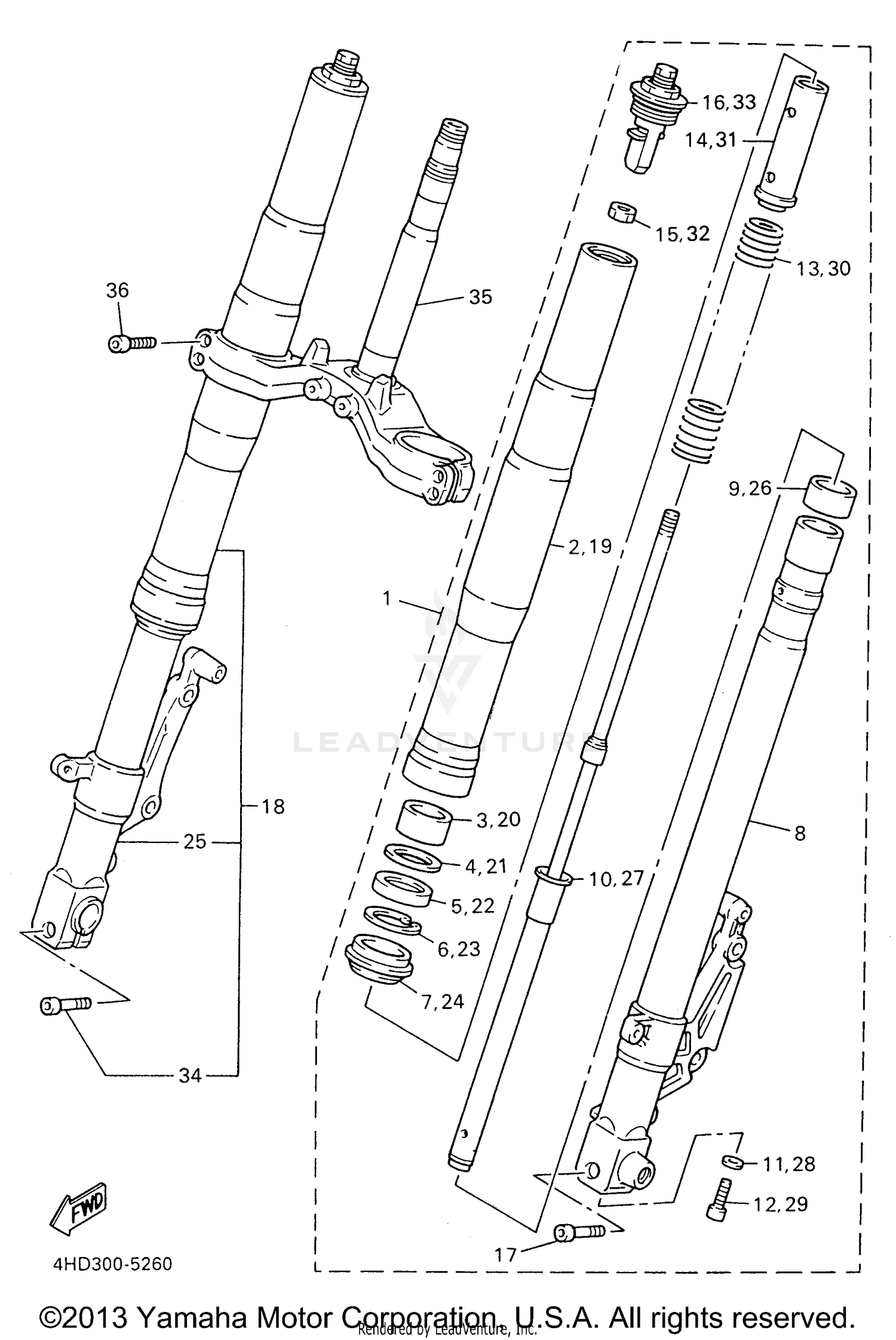

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY (L.H)
4FM-23102-40-00
|
$900.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (RIGHT)
4FM-23136-40-00
|
$888.99 | ||
|
Unavailable |
|||
|
#3
METAL, SLIDE 1
4FM-23125-40-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
36Y-23146-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
4FM-23145-40-00
Superseded by 4EB-23145-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, SNAP
26H-23156-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, DUST
3XV-23144-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE COMP.1
4FM-23110-20-00
|
$480.99 | ||
|
Unavailable |
|||
|
#9
METAL, SLIDE
4FM-23171-40-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
4FM-23170-40-00
|
$756.99 | ||
|
Unavailable |
|||
|
#11
GASKET
2K8-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
3LC-23181-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FRONT FORK
4FM-23141-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#14
SPACER
4FM-23118-40-00
|
$42.99 | ||
|
Unavailable |
|||
|
#15
NUT
3XJ-23357-L0-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CAP
4FM-23111-10-00
|
$260.99 | ||
|
Unavailable |
|||
|
#17
BOLT
91317-08040-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT FORK ASSEMBLY (R.H)
4FM-23103-40-00
|
$900.99 | ||
|
Unavailable |
|||
|
#19
TUBE, OUTER (RIGHT)
4FM-23136-40-00
|
$888.99 | ||
|
Unavailable |
|||
|
#20
METAL, SLIDE 1
4FM-23125-40-00
|
$33.99 | ||
|
Unavailable |
|||
|
#21
WASHER, OIL SEAL
36Y-23146-10-00
|
$27.99 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
4FM-23145-40-00
Superseded by 4EB-23145-01-00
|
$28.99 | ||
|
Unavailable |
|||
|
#23
RING, SNAP
26H-23156-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
SEAL, DUST
3XV-23144-50-00
|
$30.99 | ||
|
Unavailable |
|||
|
#25
INNER TUBE COMP. 2
4FM-23120-20-00
|
$682.99 | ||
|
Unavailable |
|||
|
#26
METAL, SLIDE
4FM-23171-40-00
|
$23.99 | ||
|
Unavailable |
|||
|
#27
CYLINDER COMP., FRONT FORK
4FM-23170-40-00
|
$756.99 | ||
|
Unavailable |
|||
|
#28
GASKET
2K8-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
3LC-23181-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#30
SPRING, FRONT FORK
4FM-23141-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#31
SPACER
4FM-23118-40-00
|
$42.99 | ||
|
Unavailable |
|||
|
#32
NUT
3XJ-23357-L0-00
|
$1.04 | ||
|
Unavailable |
|||
|
#33
BOLT, CAP
4FM-23111-10-00
|
$260.99 | ||
|
Unavailable |
|||
|
#34
BOLT
91317-08040-00
|
$6.99 | ||
|
Unavailable |
|||
|
#35
UNDER BRACKET COMP.
4FM-23340-00-00
Superseded by 4FM-23340-60-00
|
$524.99 | ||
|
Unavailable |
|||
|
#36
BOLT, HEXAGON SOCKET HEAD
91311-08030-00
Superseded by 91314-08030-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
