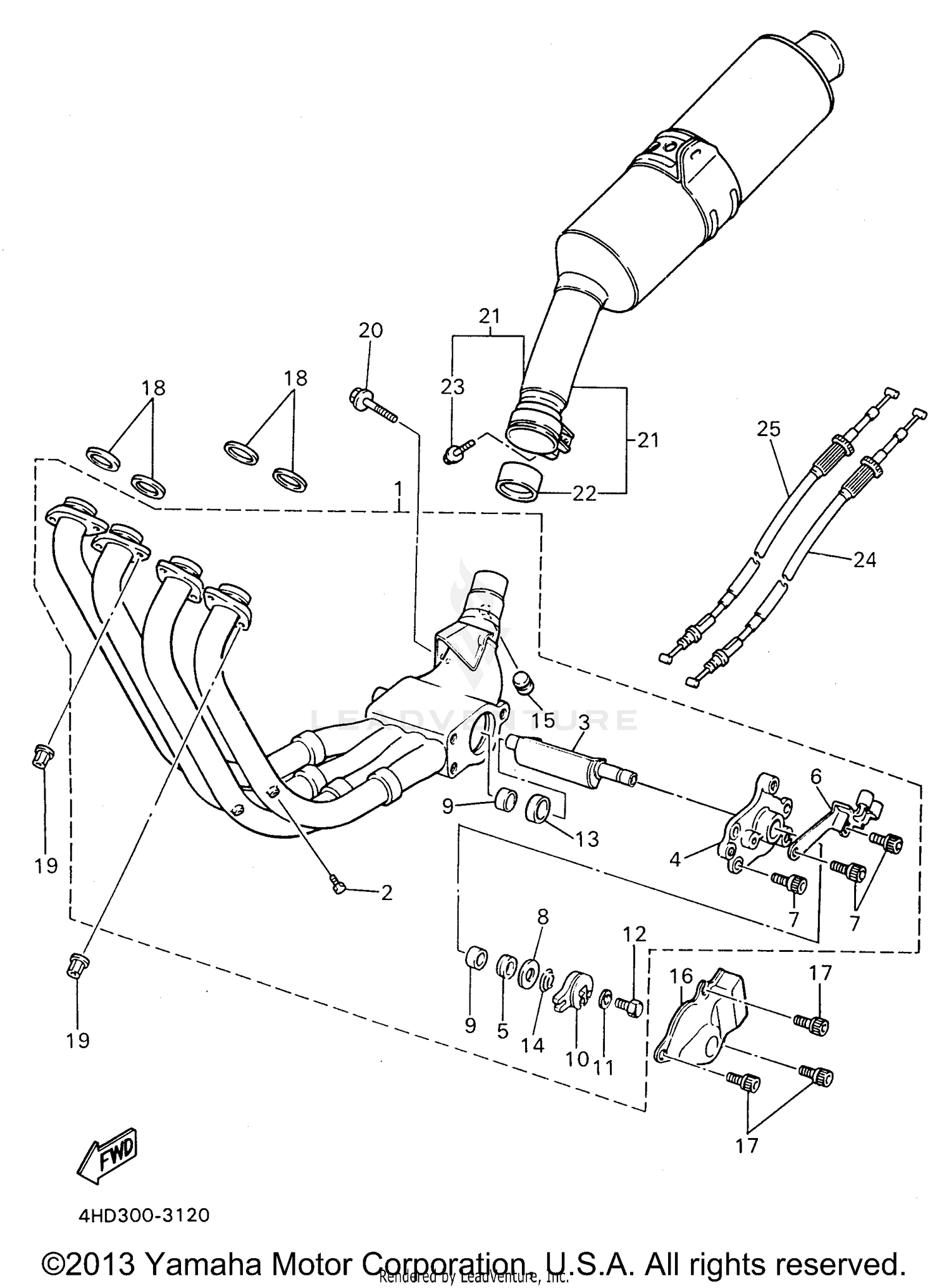

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY 1
4FM-14610-10-00
|
$1,658.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90101-06576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM, SHAFT (VALVE)
3GM-14821-00-00
Superseded by 3GM-14821-01-00
|
$512.99 | ||
|
Unavailable |
|||
|
#4
HOUSING
3GM-14811-00-00
Superseded by 5JJ-14811-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUST SEAL ASSEMBLY
2TK-14845-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET
2TK-14867-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06115-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-106M5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SOLID
90380-10195-00
Superseded by 90380-10003-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PULLEY
2TK-14865-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97080-05012-00
Superseded by 97095-05012-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-106U7-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, HOOK
3GM-14683-00-00
Superseded by 5PW-14683-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, LOCATING 1
4FM-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR, EXHAUST
4HD-14826-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#17
BOLT, WITH WASHER
90119-06187-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, EXHAUST PIPE
4FM-14613-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
MUFFLER ASSEMBLY 1
4HN-14710-01-00
|
$1,386.99 | ||
|
Unavailable |
|||
|
#22
GASKET, SILENCER
3HE-14755-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE
95817-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE, PULLEY 1
4FM-1133E-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE, PULLEY 2
4FM-1133F-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
